1993 Suzuki GSX750F Cowling Fitting SET Diagram

← All diagrams

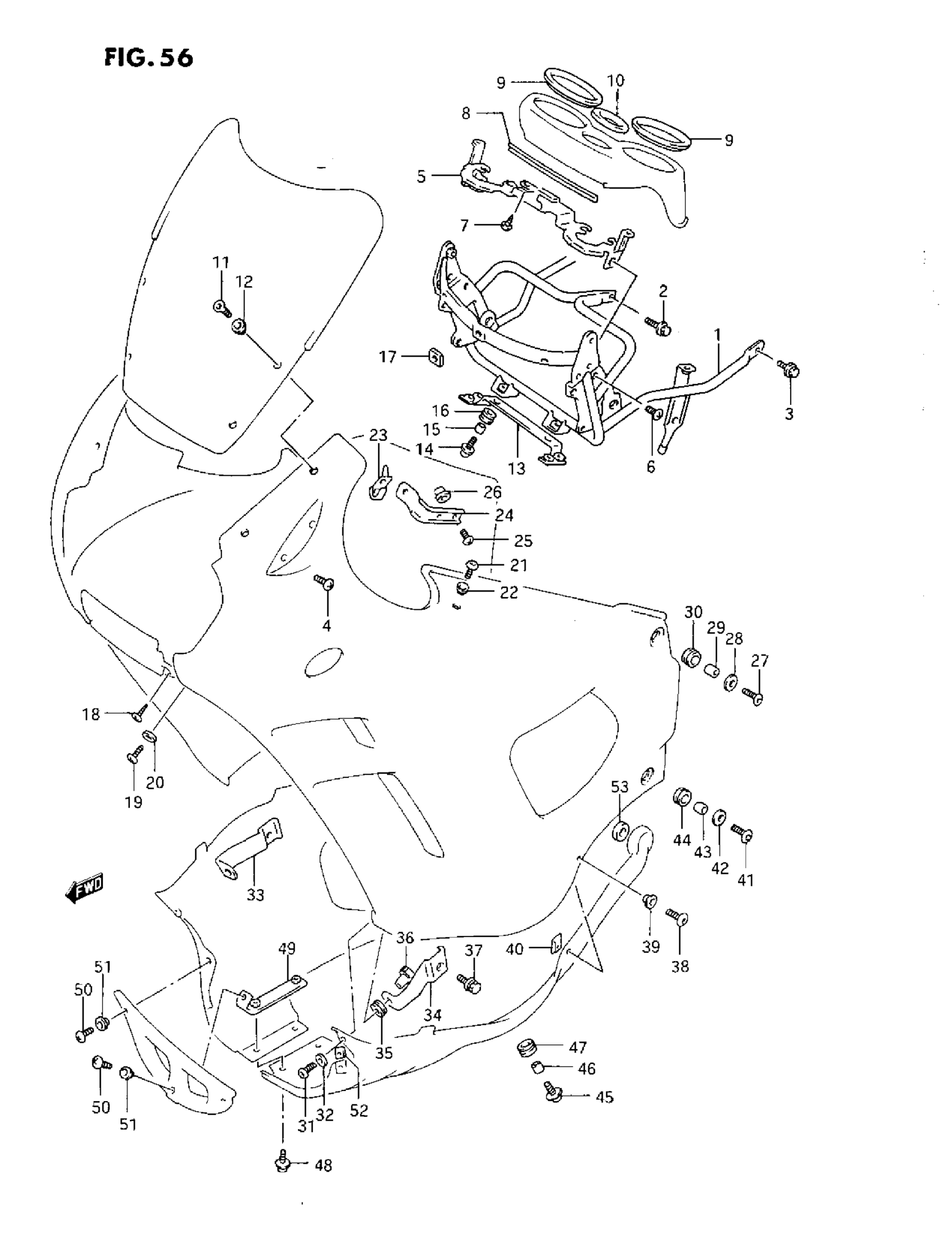

Find the part on the Cowling Fitting SET diagram for your 1993 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX750F Cowling Fitting SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACE, COWLING This part replaces 94510-20C00.

94510-20C20

1
Out of stock

1

BRACE, COWLING | CALIFORNIA ONLY This part replaces 94510-20C10.

94510-20C30

1
Out of stock

2

BOLT | MODEL N This part replaces 01517-08205.

01550-0820A

1
Out of stock

2

BOLT, REAR LH | MODEL P This part replaces 01517-08207.

01550-08207

1
Out of stock

2

BOLT (8X2O) | MODEL R

09103-08266

1
Out of stock

3

BOLT, CLAMP | MODEL N This part replaces 01517-06125.

01550-0612A

2
Out of stock

3

BOLT | MODEL P This part replaces 01517-06128.

01550-06127

2
Out of stock

3

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

2
Out of stock

4

SCREW | MODEL N/P

02142-06127

2
Out of stock

4

SCREW | MODEL R This part replaces 02142-06123.

02142-0612A

2
Out of stock

5

PLATE, METER

94520-20C00

1
Out of stock

6

SCREW | MODEL N This part replaces 02142-06125.

02142-0612A

4
Out of stock

6

SCREW | MODEL P

02142-06127

4
Out of stock

6

SCREW | MODEL R This part replaces 02142-06123.

02142-0612A

4
Out of stock

7

SCREW | MODEL N/P This part replaces 03541-05085.

03541-0508A

4
Out of stock

7

SCREW | MODEL R This part replaces 03541-05083.

03541-0508A

4
Out of stock

8

MOLDING, METER

94527-19C00

1
Out of stock

9

CUSHION, SPEEDOMETER

94426-20C00

2
Out of stock

10

CUSHION, FUEL METER

94427-20C00

1
Out of stock

11

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

4
Out of stock

12

WASHER (5.2X11.0X1.0)

09161-05010

4
Out of stock

13

PLATE, CENTER

94460-19C00

1
Out of stock

14

SCREW

09136-06081

2
Out of stock

15

SPACER This part replaces 09180-06167.

09180-06286

2
Out of stock

16

CUSHION

09320-10015

2
Out of stock

17

CUSHION This part replaces 94638-19C00.

63191-25C00

1
Out of stock

18

SCREW | MODEL N/P This part replaces 02142-05128.

02142-05127

2
Out of stock

18

.SCREW | MODEL R This part replaces 02142-05123.

02142-0512A

2
Out of stock

19

SCREW, FRONT

09139-06029

2
Out of stock

20

WASHER

09160-06036

2
Out of stock

21

SCREW, UPPER

09139-06030

2
Out of stock

22

WASHER

09161-06021

2
Out of stock

23

BRACKET, UPPER RH

94560-19C00

1
Out of stock

24

BRACKET, UPPER LH

94570-19C00

1
Out of stock

25

SCREW | MODEL N

09125-06055

4
Out of stock

25

SCREW, BODY COVER UPPER | MODEL P This part replaces 09125-06038.

09125-06055

4
Out of stock

25

SCREW | MODEL R This part replaces 02142-06253.

02142-0625A

4
Out of stock

26

NUT

94573-19C00

4
Out of stock

27

SCREW

09139-06029

4
Out of stock

28

WASHER

09160-06036

4
Out of stock

29

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

4
Out of stock

30

CUSHION

09320-09016

4
Out of stock

31

SCREW, FRONT

09139-06042

2
Out of stock

32

WASHER

09160-06036

2
Out of stock

33

BRACKET, UNDER, RH

94531-19C00

1
Out of stock

34

BRACKET, UNDER, LH

94532-19C00

1
Out of stock

35

CUSHION

09320-10015

2
Out of stock

36

NUT

94590-19C00

2
Out of stock

37

BOLT | MODEL N This part replaces 01137-06165.

01570-0616A

2
Out of stock

37

BOLT | MODEL P This part replaces 01137-06167.

01570-06167

2
Out of stock

37

BOLT | MODEL R This part replaces 01570-06163.

01570-0616A

2
Out of stock

38

SCREW

09139-05025

2
Out of stock

39

WASHER

09161-05017

2
Out of stock

40

2

$3.95

In stock

41

SCREW, REAR

09139-06029

2
Out of stock

42

WASHER

09160-06036

2
Out of stock

43

SPACER

09180-06116

2
Out of stock

44

CUSHION

09320-09016

2
Out of stock

45

SCREW, LOWER

09136-06081

2
Out of stock

46

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

2
Out of stock

47

CUSHION, LOWER

09320-09016

2
Out of stock

48

SCREW | MODEL N This part replaces 02142-15165.

02142-0516A

2
Out of stock

48

SCREW | MODEL P This part replaces 02142-15168.

02142-05167

2
Out of stock

48

SCREW | MODEL R This part replaces 02142-05163.

02142-0516A

2
Out of stock

49

BRACKET, LOWER

94580-19C00

1
Out of stock

50

SCREW | MODEL N This part replaces 02142-05164.

02142-0516A

3
Out of stock

50

SCREW | MODEL P

02142-05167

3
Out of stock

50

SCREW | MODEL R This part replaces 02142-05163.

02142-0516A

3
Out of stock

51

WASHER

09161-05017

3
Out of stock

52

2

$3.95

In stock

53

CUSHION, UNDER, REAR

94639-20C00

2
Out of stock
