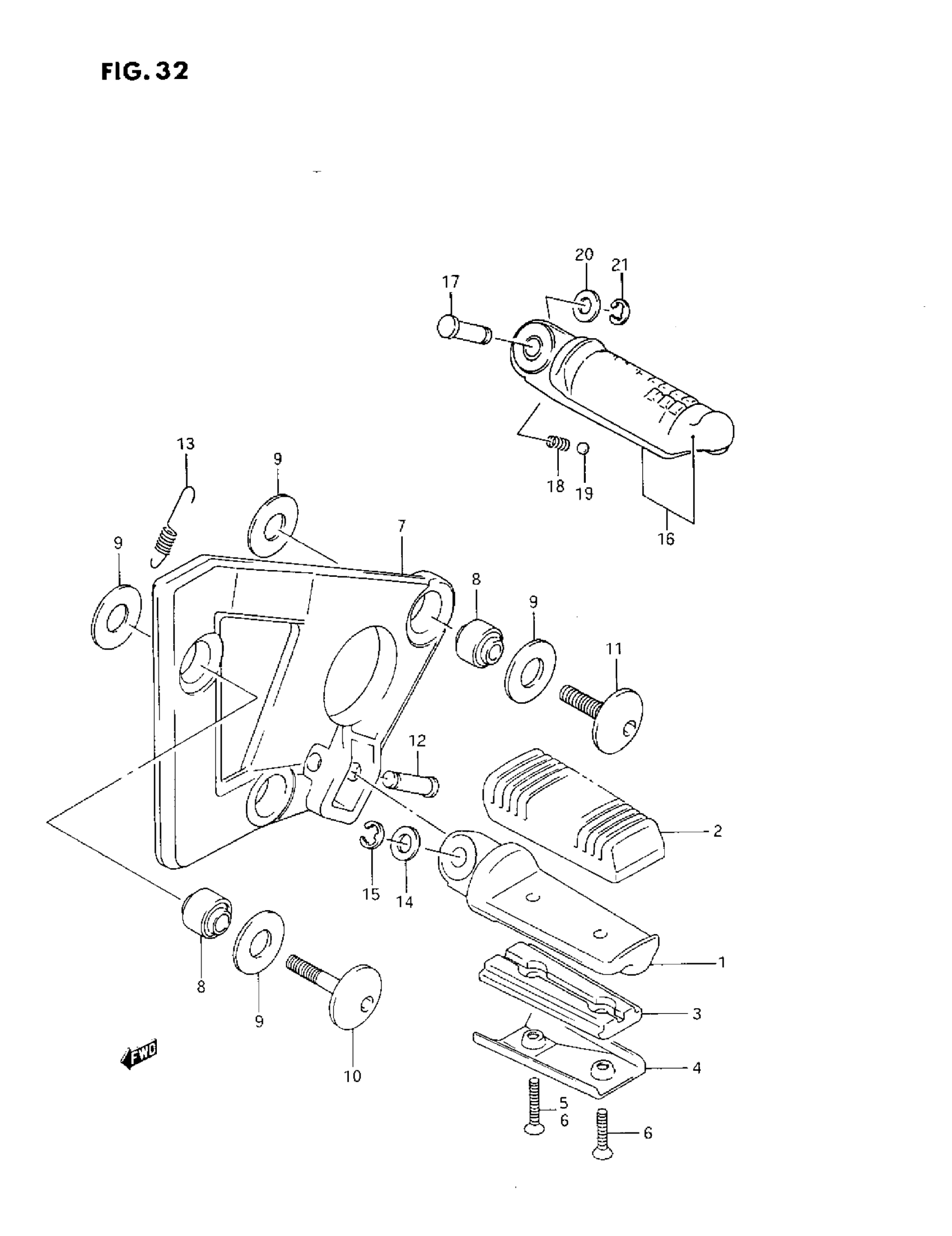

Suzuki GSX750F (1993) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43510-20C00

Unavailable

1

BAR, FRONT FOOTREST LH

43520-20C00

$120.83

2

RUBBER, FOOTREST

43550-48B10

$30.22

3

PLATE, FOOTREST

43533-20C00

Unavailable

4

COVER, FOOTREST

43534-20C00

Unavailable

5

SCREW | MODEL K This part replaces 02122-05208.

02122-0520A

$2.47

6

SCREW | MODEL K This part replaces 02122-05258.

02122-0525B

$2.40

6

SCREW | MODEL L/M/N/P/R This part replaces 02122-05258.

02122-0525B

$2.40

7

HOLDER, FRONT FOOTREST RH | MODEL K/L/M/N/P This part replaces 43517-20C00.

43517-20C01

Unavailable

7

HOLDER, FRONT FOOTREST RH | MODEL R

43517-20C01

Unavailable

7

HOLDER, FRONT FOOTREST LH | MODEL K/L/M/N/P This part replaces 43527-20C00.

43527-20C01

Unavailable

7

HOLDER, FRONT FOOTREST LH | MODEL R

43527-20C01

Unavailable

8

BUSH, HOLDER

09319-08036

$27.28

9

WASHER This part replaces 09161-12007.

09161-12009

$4.70

10

BOLT, MUFFLER SUPPORT FRONT This part replaces 09106-08080.

09106-08147

$5.92

11

BOLT

09106-08089

$10.08

12

PIN This part replaces 09208-08012.

09208-08010

$2.80

13

SPRING

09443-10037

Unavailable

14

WASHER This part replaces 08322-11088.

08322-01087

$1.92

15

CIRCLIP This part replaces 08332-11066.

08332-1106A

$1.46

16

BAR, PILLION FOOTREST RH This part replaces 43610-20C00.

43610-20C01

$83.08

16

BAR, PILLION FOOTREST LH This part replaces 43710-20C00.

43710-20C01

$83.08

17

PIN

09208-08011

$2.80

18

SPRING

09440-05005

$1.45

19

BALL

06111-07004

$1.25

20

WASHER | MODEL K/L/M/N/P This part replaces 08322-11084.

08322-0108A

$2.18

20

WASHER | MODEL R This part replaces 08322-01083.

08322-0108A

$2.18

21

CIRCLIP This part replaces 08332-11066.

08332-1106A

$1.46
