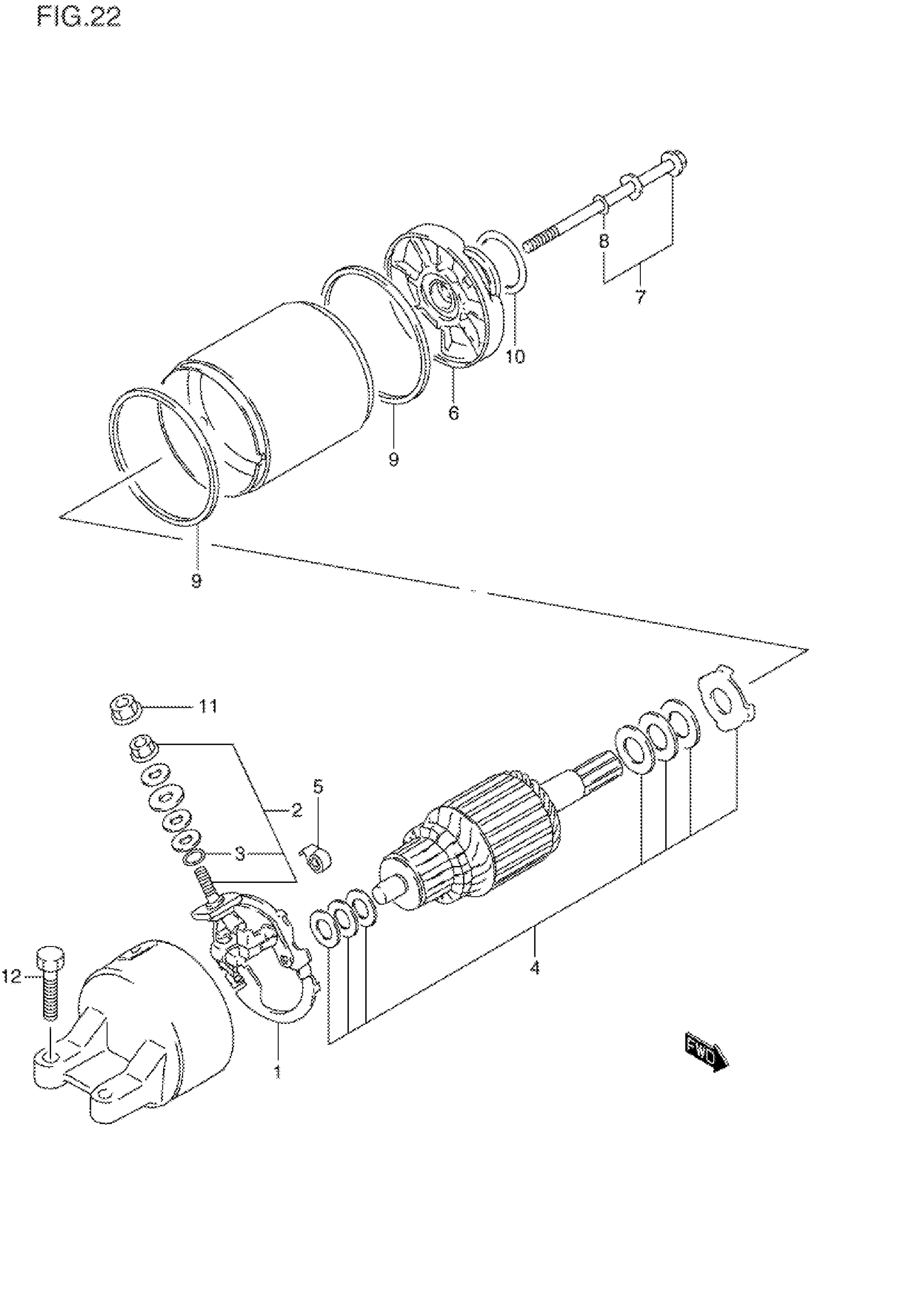

Suzuki GSX600FV (1997) STARTING MOTOR Diagram

#

Description
Price

MOTOR ASSY,STAR | Includes Item(s) 1 - 9 This part replaces 31100-19C02.

31100-19C03

Unavailable

1

HOLDER SET, BRUSH (-)

31132-19B10

$33.58

2

TERMINAL SET, BRUSH (+)

31130-19B10

$31.78

3

O RING

31143-49040

$3.50

4

WASHER SET

31170-19B10

$14.18

5

SPRING, BRUSH

31135-31300

$6.59

6

BRACKET ASSY, FRONT

31150-19B10

Unavailable

7

BOLT SET

31280-19B10

Unavailable

8

O RING

31143-49040

$3.50

9

O RING This part replaces 31264-31300.

31264-32E00

$6.29

10

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

11

NUT This part replaces 08361-35068.

08361-3506A

$1.81

12

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.53
