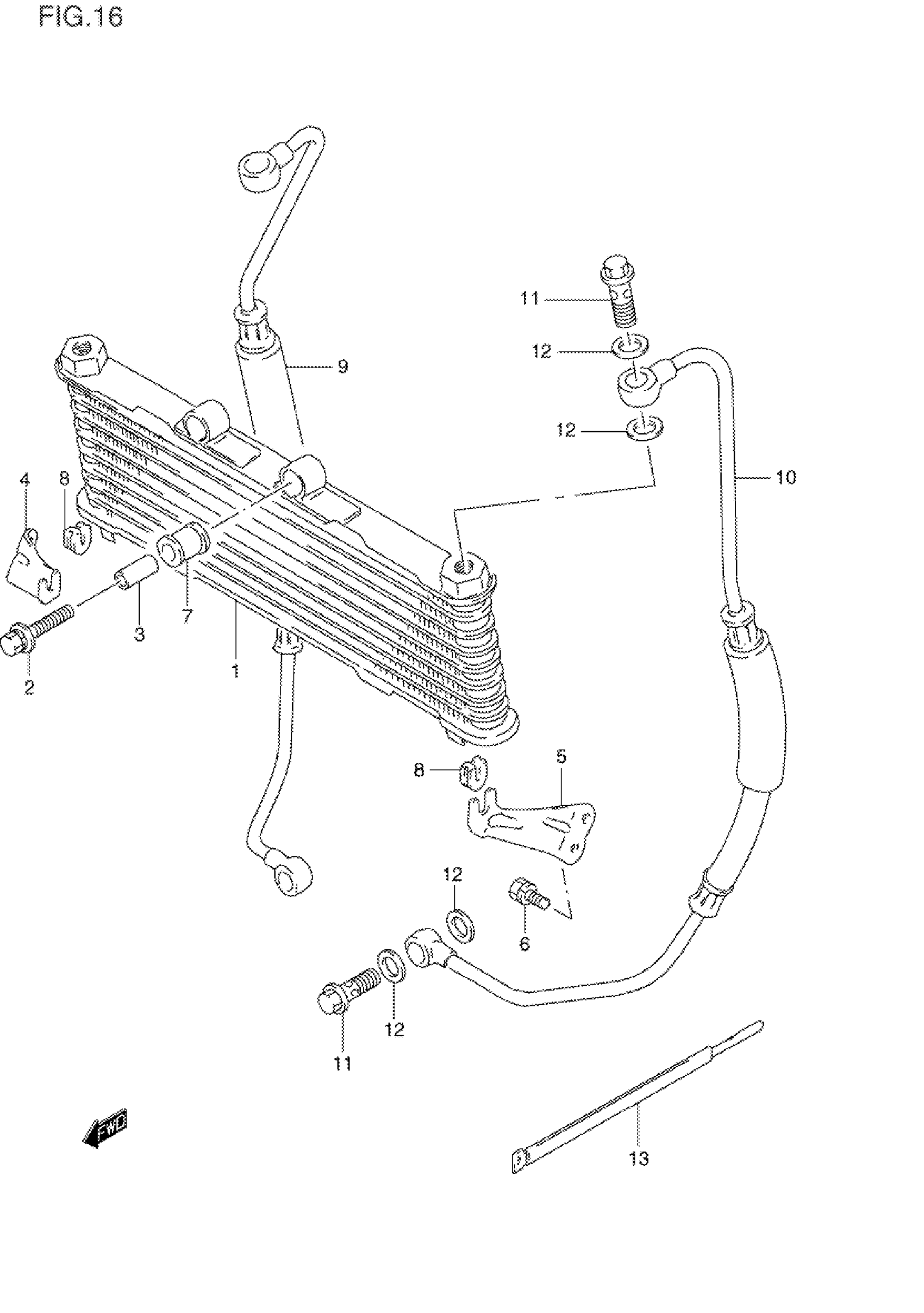

Find the part on the OIL Cooler diagram for your 1997 Suzuki GSX600FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki GSX600FV OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COOLER ASSY, OIL

16600-19C01

1
Out of stock

2

BOLT (8X40)

09118-08131

2
Out of stock

3

SPACER (8.8X12X24.5)

09180-08304

2
Out of stock

4

BRACKET, OIL COOLER,RH

16621-19C00

1
Out of stock

5

BRACKET, OIL COOLER,LH

16622-19C00

1
Out of stock

6

BOLT This part replaces 01570-06163.

01570-0616A

4
Out of stock

7

CUSHION, NO.1

16629-27A01

2
Out of stock

8

CUSHION, NO.2

16628-27A00

2
Out of stock

9

HOSE, OIL COOLER,RH

16460-19C02

1
Out of stock

10

HOSE, OIL COOLER,LH

16470-19C02

1
Out of stock

11

BOLT, UNION (16X32)

09360-16002

4
Out of stock

12

GASKET

09168-16002

8
Out of stock

13

CLAMP, OIL HOSE

09407-25401

2
Out of stock
