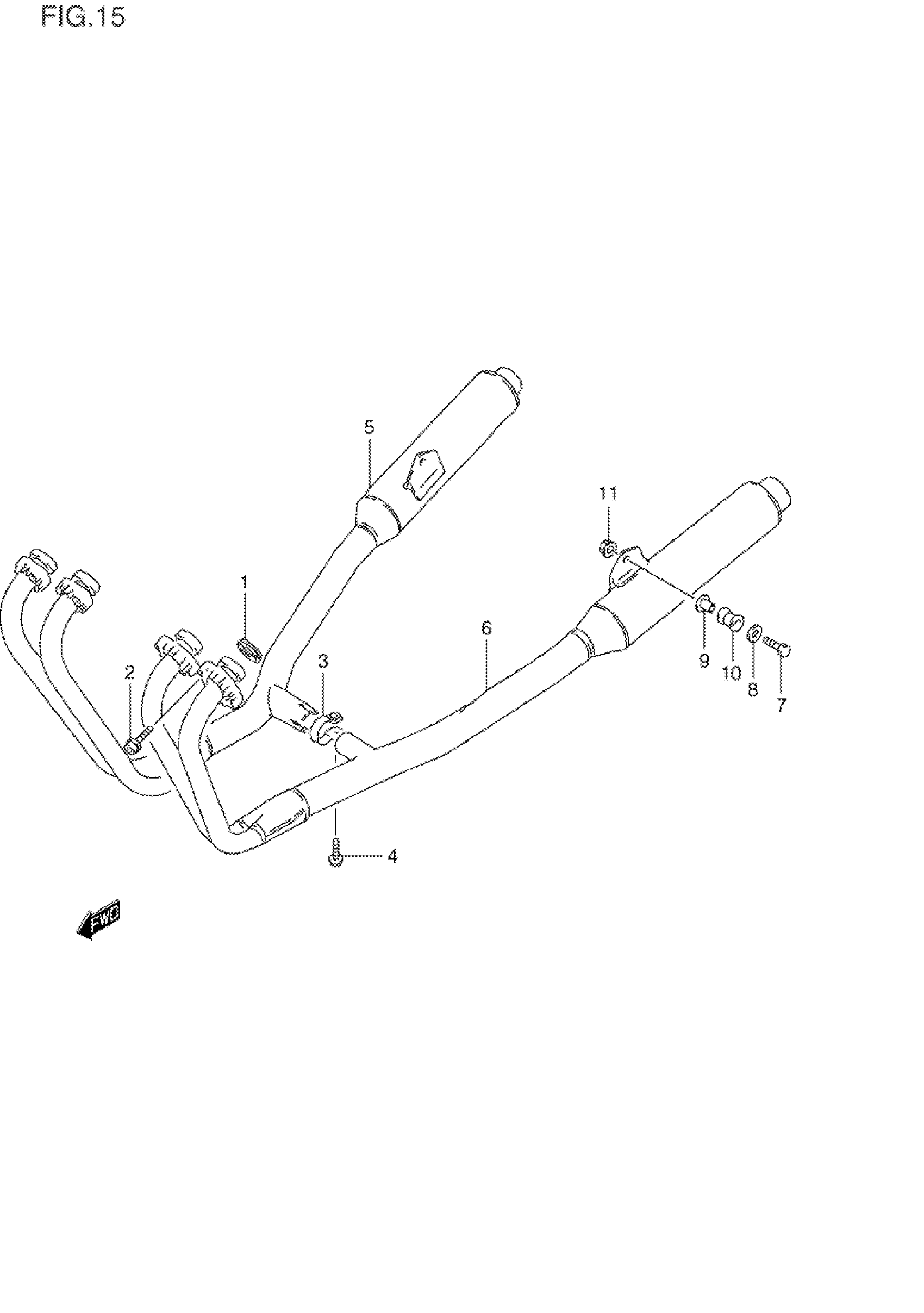

Suzuki GSX600FV (1997) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST

14181-18C00

$6.91

2

BOLT This part replaces 07120-08253.

07120-0825B

$3.32

3

CLAMP

14772-19C00

Unavailable

4

BOLT This part replaces 01550-06253.

01550-0625A

$2.01

5

MUFFLER ASSY, RH

14305-44C35-H01

Unavailable

6

MUFFLER ASSY, LH

14306-44C35-H01

Unavailable

7

BOLT (8X40)

09103-08256

$5.65

8

WASHER (8.5X33X1.5) This part replaces 09160-08106.

09160-08146

$2.66

9

SPACER

09180-08152

$5.42

10

CUSHION

09320-12048

$4.75

11

NUT This part replaces 08316-20083.

08316-2008A

$2.95
