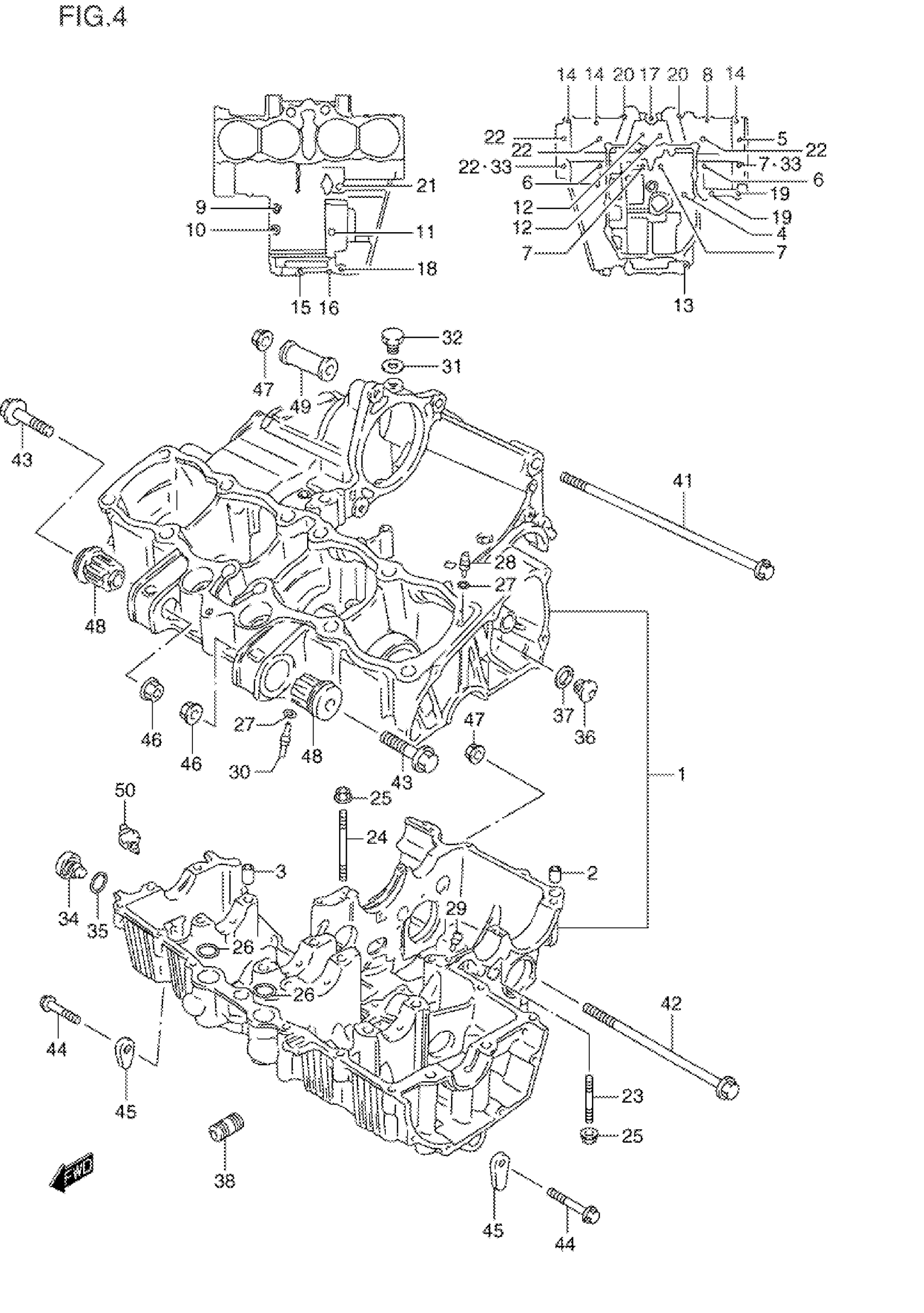

Suzuki GSX600FV (1997) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 40 This part replaces 11300-43854.

11300-43855

Unavailable

2

PIN

09206-13004

$2.44

3

PIN

09206-11017

$6.85

4

BOLT (6X105)

09103-06163

Unavailable

5

BOLT (8X105)

09103-08097

$3.15

6

BOLT (8X125)

09103-08182

$6.22

7

BOLT (8X115)

09103-08098

$4.20

8

BOLT This part replaces 01550-06353.

01550-0635A

$2.31

9

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.10

10

BOLT This part replaces 07130-06503.

07130-0650B

$4.45

11

BOLT This part replaces 07130-06653.

07130-0665B

$3.47

12

BOLT This part replaces 07130-08653.

07130-0865B

$5.73

13

BOLT This part replaces 01550-08603.

01550-0860A

$1.37

14

BOLT This part replaces 01550-06353.

01550-0635A

$2.31

15

BOLT This part replaces 01550-06403.

01550-0640A

$2.43

16

BOLT

01550-06407

$2.73

17

BOLT This part replaces 01550-06503.

01550-0650A

$3.10

18

BOLT This part replaces 01550-06603.

01550-0660A

$2.80

19

BOLT This part replaces 01550-06553.

01550-0655B

$3.58

20

BOLT This part replaces 01550-06703.

01550-0670B

$4.62

21

BOLT This part replaces 01550-06803.

01550-0680B

$3.80

22

BOLT (8X95)

09103-08105

$4.20

23

BOLT,STUD This part replaces 01421-06408.

01421-0640A

Unavailable

24

BOLT,STUD This part replaces 01421-06608.

01421-0660A

$4.12

25

NUT This part replaces 08316-10063.

08316-1006B

$2.50

26

O RING (D:2.5,ID:21)

09280-21008

$1.89

27

O RING (D:1.2,ID:4.0)

09280-04004

$1.76

28

JET, OIL GALLERY HEAD

09493-14002

Unavailable

29

JET, OIL GALLERY GEAR SHIFT

09493-24010

$18.33

30

JET, OIL GALLERY PISTON

09493-80008

Unavailable

31

GASKET, HOLE PLUG

09168-12002

$1.59

32

PLUG, HOLE

09247-12103

$2.80

33

GASKET

09168-08021

$2.66

34

PLUG This part replaces 09248-16003.

09248-16007

$10.83

35

O RING (D:2.4,ID:16.8)

09280-17002

$4.62

36

PLUG, OIL GALLERY

09248-14010

$7.03

37

GASKET

09168-14002

$2.83

38

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$6.45

39

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.8 (B-10) This part replaces 12228-19C00.

12228-43414

$11.37

40

BEARING, THRUST LH (RED) | SEE ILLUSTRATION ON FIG.8 (B-10)

12228-43411

Unavailable

40

BEARING, THRUST LH (BLACK)

12228-43412

Unavailable

40

BEARING, THRUST LH (BLUE)

12228-43413

Unavailable

40

BEARING, THRUST LH (GREEN)

12228-43414

$11.37

40

BEARING, THRUST LH (YELLOW)

12228-43415

Unavailable

40

BEARING, THRUST LH (WHITE)

12228-43416

Unavailable

41

BOLT (10X175)

09103-10151

Unavailable

42

BOLT (10X130)

09103-10122

$9.12

43

BOLT This part replaces 01580-10553.

01580-1055B

$5.83

44

BOLT This part replaces 01550-10553.

01550-1055B

$5.17

45

NUT

09159-10020

$5.63

46

NUT This part replaces 08316-10103.

08316-1010B

$2.65

47

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21

48

BUSH,ENGINE MOU This part replaces 11681-06B00.

11681-06B01

$20.01

49

SPACER (L:27)

11610-20C00

$17.40

50

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D00.

37820-33D11

$27.58
