1997 Suzuki GSX600FV Fuel Tank Diagram

← All diagrams

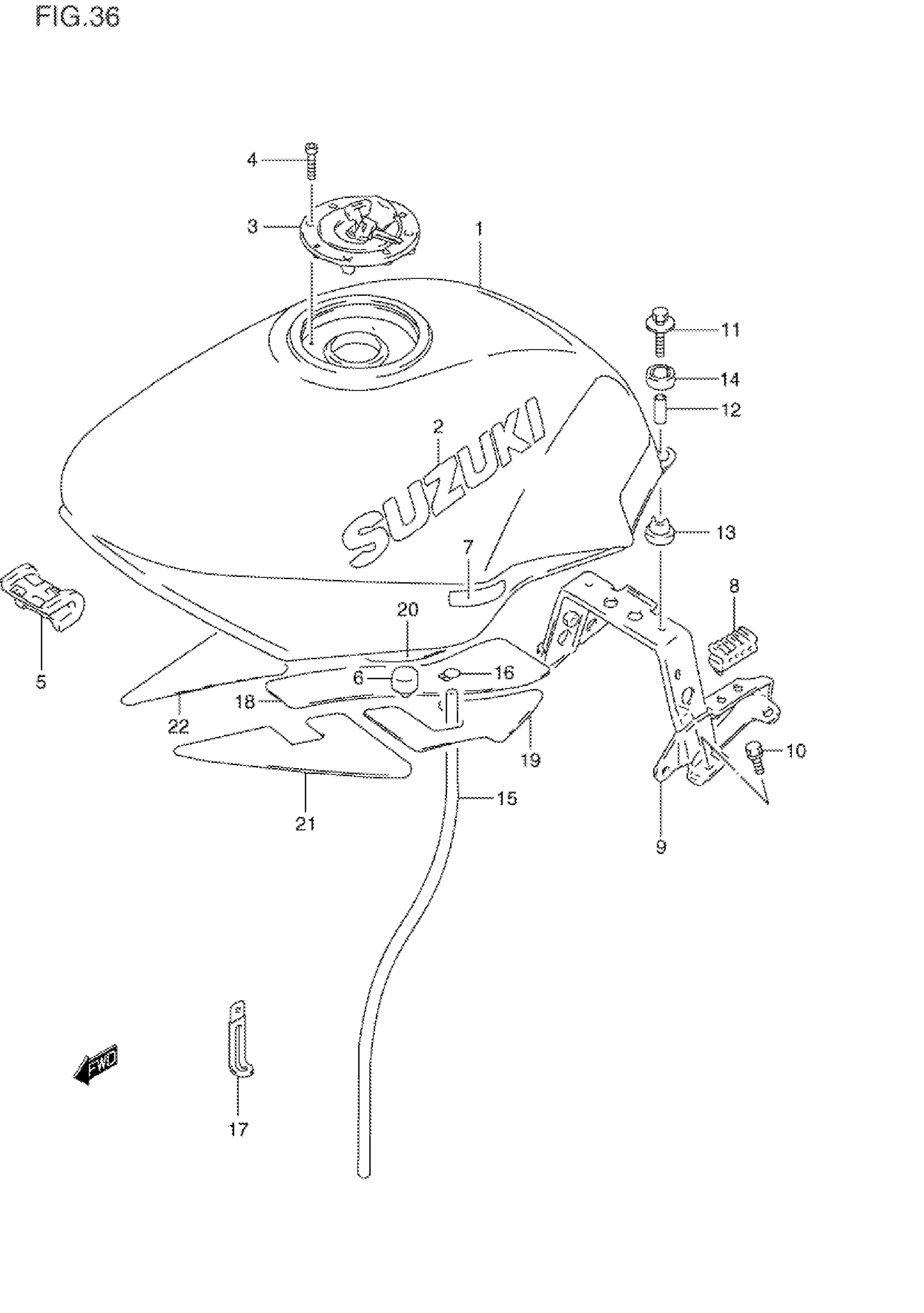

Find the part on the Fuel Tank diagram for your 1997 Suzuki GSX600FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki GSX600FV Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 44100-43C30-1LF.

44100-43C31-1LF

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 44100-43C30-Z66.

44100-43C31-Z66

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E33 This part replaces 44100-43C60-1LF.

44100-43C61-1LF

1
Out of stock

1

TANK ASSY, FUEL (YELLOW) | E33; Includes Item(s) 2 - 2

44100-43C60-Z66

1
Out of stock

2

EMBLEM | FOR 1LF This part replaces 68111-12C00-17U.

68111-12C30-17U

2
Out of stock

2

EMBLEM | FOR Z66 This part replaces 68111-12C00-20G.

68111-12C30-20G

2
Out of stock

3

CAP SET,FUEL TA This part replaces 44201-01832.

44201-01833

1
Out of stock

3

CAP SET, FUEL TANK | E33

44201-01842

1
Out of stock

4

BOLT

09106-05017

4
Out of stock

5

CUSHION, FUEL TANK FRONT

44511-19C00

1
Out of stock

6

CUSHION, FUEL TANK SIDE

09321-10011

2
Out of stock

7

PROTECTOR, FUEL TANK

32851-10D00

2
Out of stock

8

CUSHION, REAR BRACKET

45149-31300

2
Out of stock

9

BRACKET, REAR

44550-19C00

1
Out of stock

10

BOLT This part replaces 09137-06017.

01570-0620A

2
Out of stock

11

BOLT, REAR

09116-06172

2
Out of stock

12

SPACER

09180-06271

2
Out of stock

13

CUSHION, REAR LOWER

09320-10038

2
Out of stock

14

CUSHION, REAR UPPER

09320-14017

2
Out of stock

15

HOSE, WATER DRAIN

44423-19C00

1
Out of stock

16

CLIP

09401-08401

1
Out of stock

17

CLAMP

09404-08420

1
Out of stock

18

SHIELD, FUEL TANK NO.1 HEAT | E33

49131-20C00

1
Out of stock

19

SHIELD, FUEL TANK NO.2 HEAT | E33

49132-20C00

1
Out of stock

20

SHIELD, FUEL TANK NO.3 HEAT | E33

49133-20C00

1
Out of stock

21

SHIELD, FUEL TANK NO.4 HEAT | E33

49134-20C00

1
Out of stock

22

SHIELD, FUEL TANK NO.5 HEAT | E33

49135-20C00

1
Out of stock
