1997 Suzuki GSX600FV AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1997 Suzuki GSX600FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

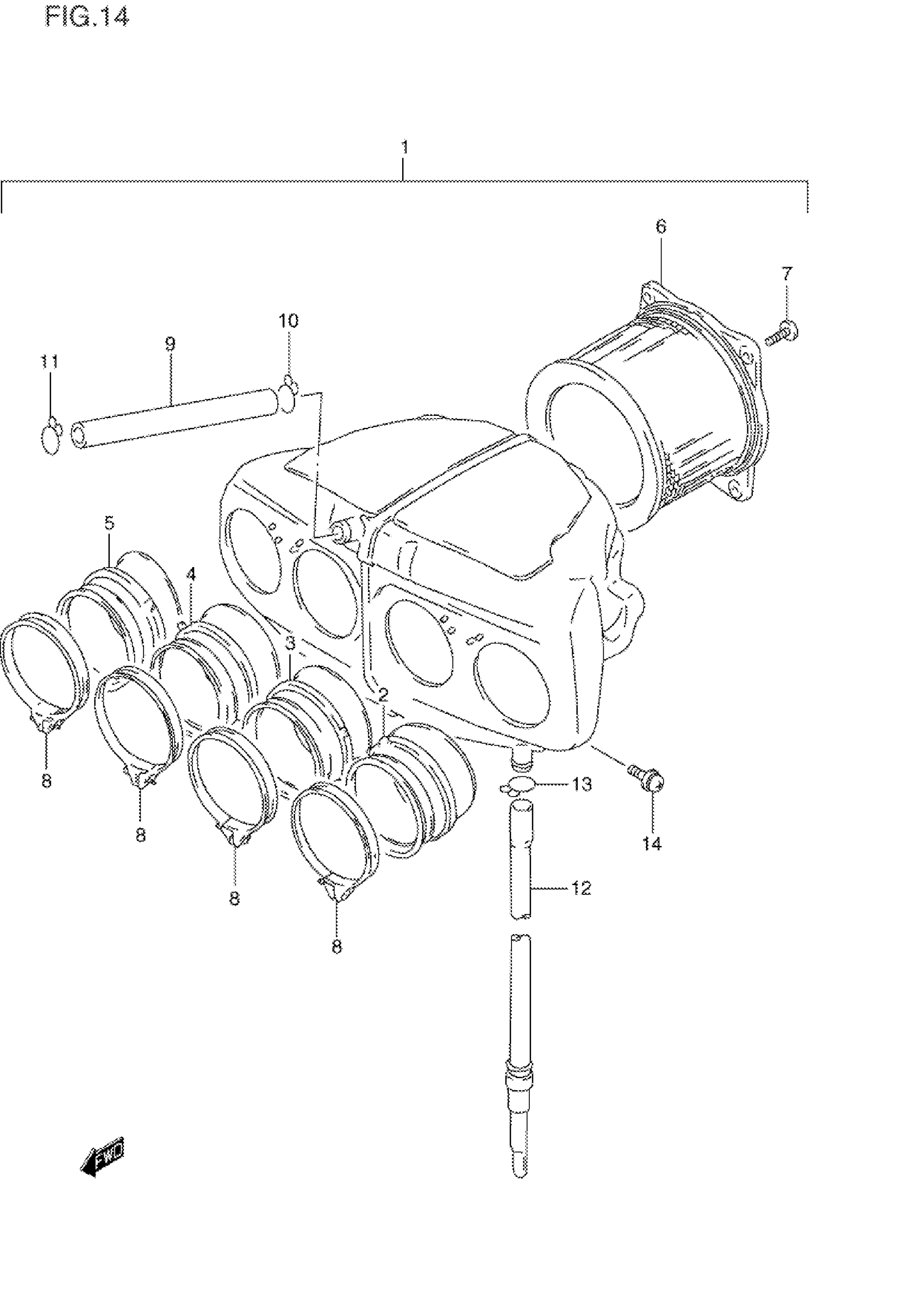

1997 Suzuki GSX600FV AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR

13700-20C03

1
Out of stock

1

CLEANER ASSY, AIR | E28; Includes Item(s) 2 - 13

13700-20C23

1
Out of stock

2

TUBE, OUTLET LH

13881-20C01

1
Out of stock

3

TUBE, OUTLET ML

13882-20C01

1
Out of stock

4

TUBE, OUTLET MR

13883-20C01

1
Out of stock

5

TUBE, OUTLET RH

13884-20C01

1
Out of stock

6

FILTER

13780-20C00

1
Out of stock

7

.SCREW This part replaces 02142-05123.

02142-0512A

4
Out of stock

8

CLAMP

09402-66208

4
Out of stock

9

TUBE, BREATHER

13853-19C00

1
Out of stock

10

CLIP

09401-16401

1
Out of stock

11

CLIP

09401-14301

1
Out of stock

12

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

1
Out of stock

13

CLIP

09401-13409

1
Out of stock

14

SCREW This part replaces 02112-76163.

02112-7616A

2
Out of stock
