1997 Suzuki GSX600FV Fuel Cock Diagram

← All diagrams

Find the part on the Fuel Cock diagram for your 1997 Suzuki GSX600FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

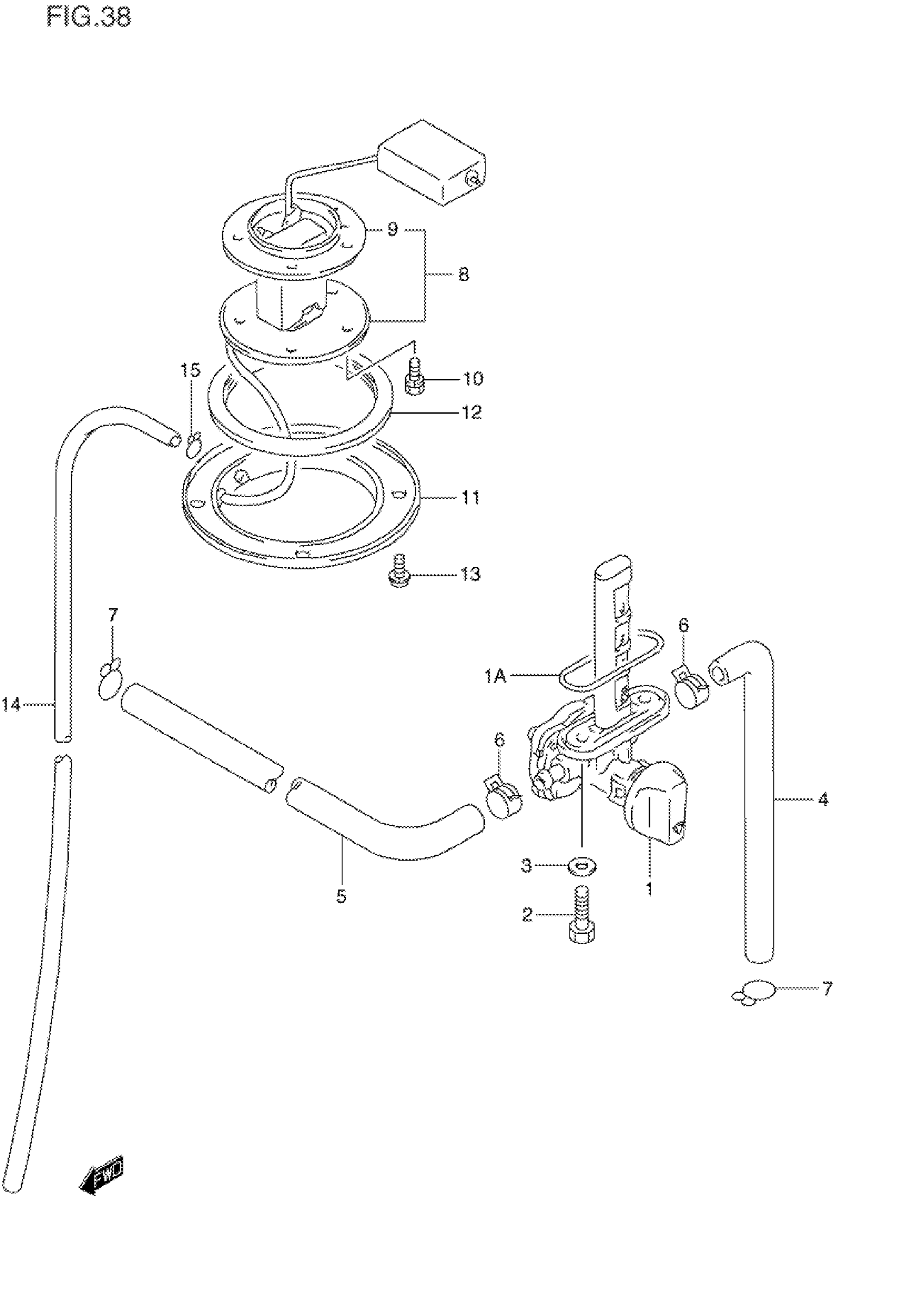

1997 Suzuki GSX600FV Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COCK ASSY,FUEL | Includes Item(s) 1A This part replaces 44300-20C00.

44300-20C01

1
Out of stock

1A

1

$2.92

In stock

2

BOLT

09128-06057

2

$1.77

In stock

3

GASKET

09168-06026

2

$3.00

In stock

6

2

$2.36

In stock

7

CLIP, FUEL HOSE NO.2

09401-12403

2

$2.13

In stock

8

GUAGE ASSY, FUEL LEVEL | Includes Item(s) 9

34810-19C00

1
Out of stock

9

GASKET

34825-49001

1

$5.81

In stock

10

5

$2.75

In stock

11

PLATE, FUEL DRAIN

34885-40A00

1
Out of stock

12

1

$12.20

In stock

13

BOLT

09137-05004

4

$2.50

In stock

14

1

$13.49

In stock

15

CLIP

09401-08402

1

$1.49

In stock
