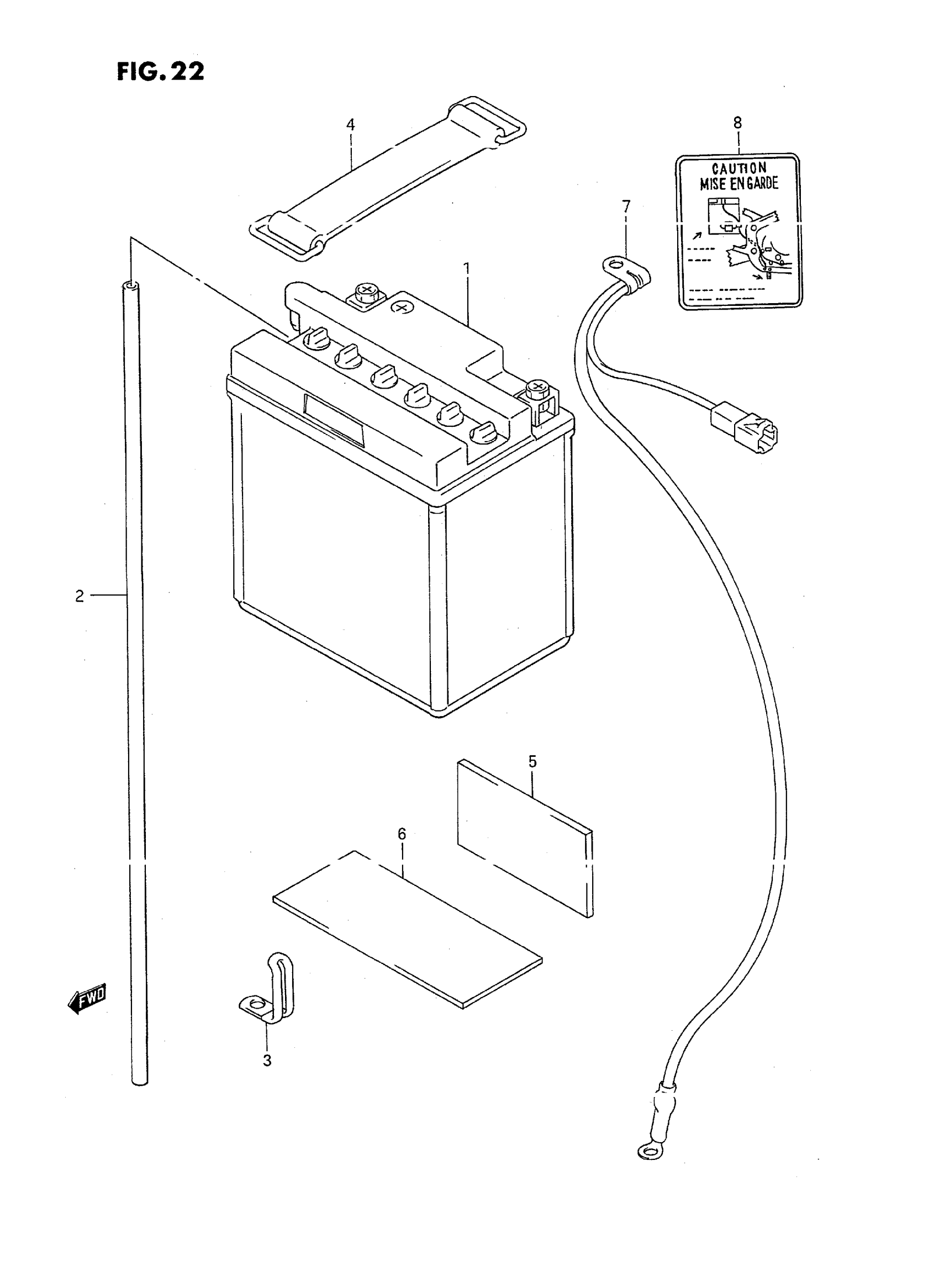

Suzuki GSX600FT (1996) BATTERY (MODEL J) Diagram

#

Description

Price

1

BATTERY (12V,14AH)

33610-04A20

$116.58

2

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$7.65

3

CLAMP This part replaces 09404-06606.

09404-06039

$1.73

4

BAND, BATTERY

09462-00043

$3.71

5

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.09

6

CUSHION | CUT AS REQUIRED PROFILE(50X115)

33651-37000

$4.09

7

LEAD WIRE, BATTERY (-) This part replaces 33860-19C00.

33860-44B01

Unavailable

8

PLATE, BATTERY CAUTION

33690-19C10

Unavailable

9

REFER TO FIG.22A(E-3) FOR

SPECIAL NOTE

Unavailable
