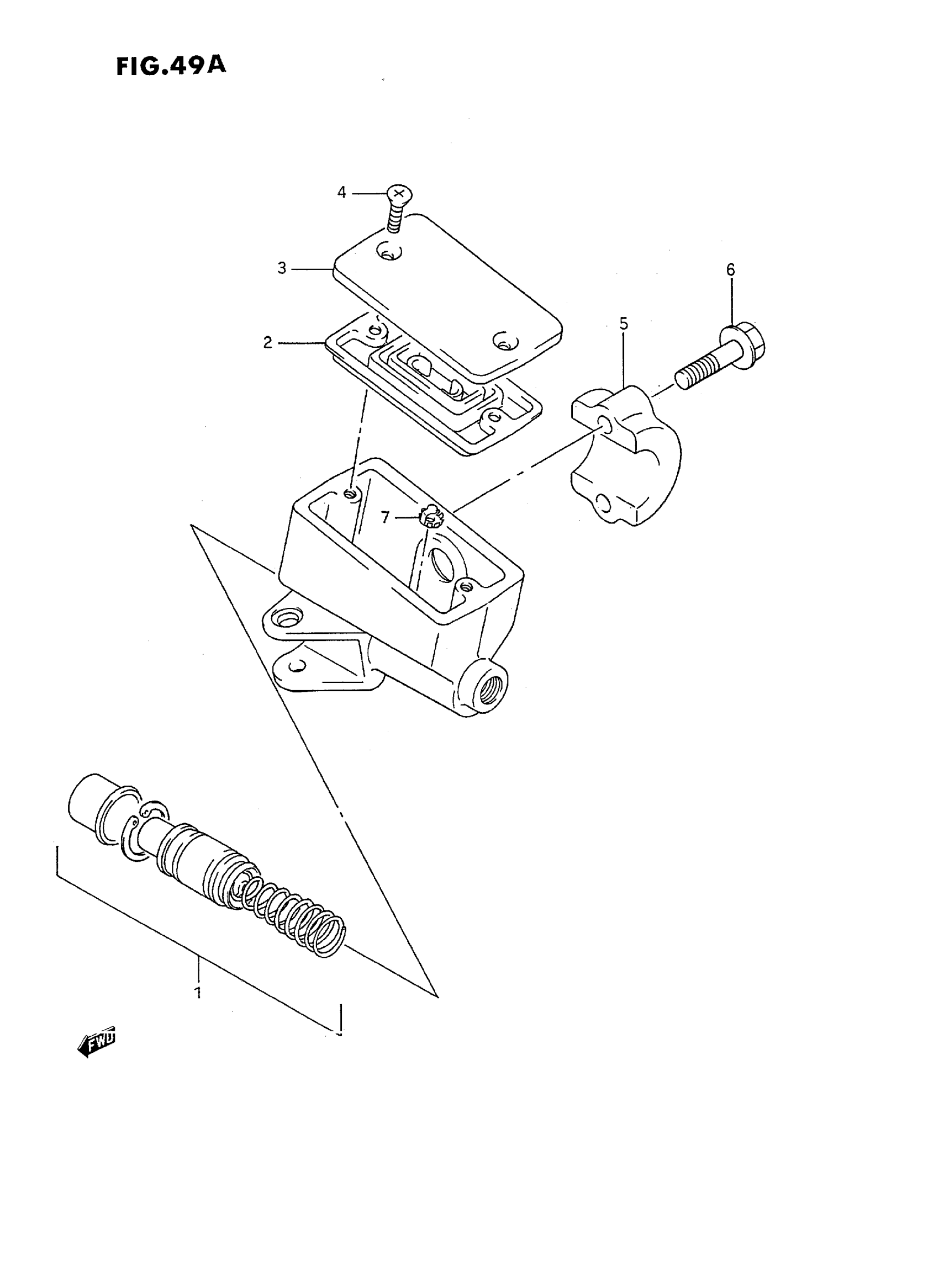

Suzuki GSX600FT (1996) FRONT MASTER CYLINDER (MODEL K/L/M/N) Diagram

#

Description
Price

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 1 - 7

59600-20C00

Unavailable

1

PISTON/CUP SET

59600-45860

$36.14

2

DIAPHRAGM

59667-49460

$8.95

3

CAP This part replaces 59669-34C00.

59669-41C00

$30.66

4

SCREW

69689-49300

$1.81

5

HOLDER

59671-19B00

$22.65

6

BOLT HOLDER SET

59675-19C00

$4.53

7

PROTECTOR

59664-48B00

$12.43

8

REFER TO FIG.49B(J-13) FOR

SPECIAL NOTE

Unavailable
