1996 Suzuki GSX600FT Cylinder Head Diagram

← All diagrams

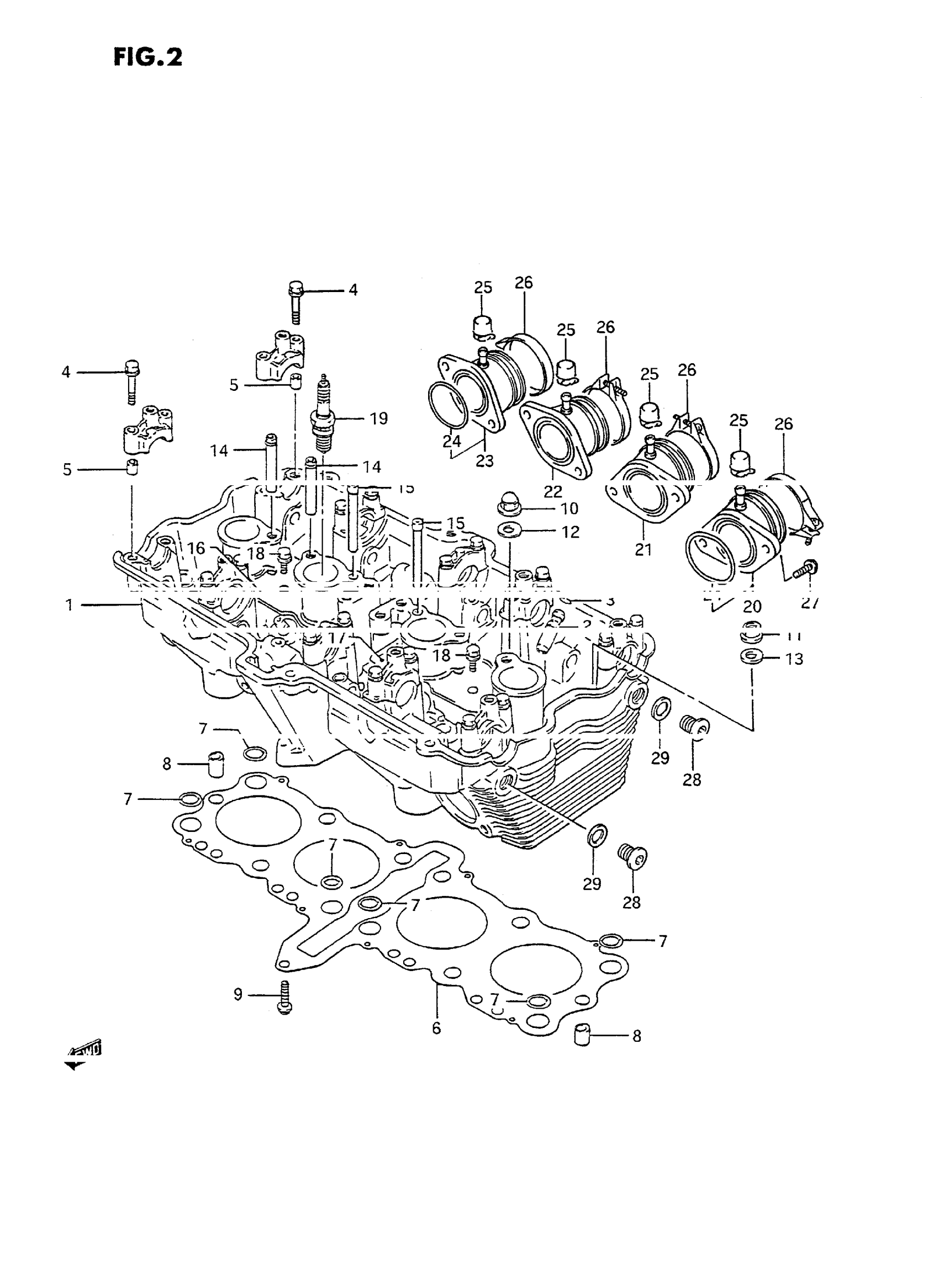

Find the part on the Cylinder Head diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GSX600FT Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER (GRAY) | MODEL J

11100-19C01

1
Out of stock

1

HEAD ASSY, CYLINDER (BLACK) | MODEL K/L/M

11100-43C00

1
Out of stock

1

HEAD ASSY, CYLINDER (BLACK) | MODEL N/P/R/S

11100-19E00

1
Out of stock

1

HEAD ASSY, CYLINDER (BLACK) | MODEL T; Includes Item(s) 2 - 5

11100-19E20

1
Out of stock

2

GUIDE, VALVE (OS:0.3) | MODEL J/K/L/M This part replaces 11115-27A70.

11116-06B70

16
Out of stock

2

CUIDE, VALVE | MODEL N/P/R/S/T

11116-18D70

16
Out of stock

3

.RING (10X85)

09381-10004

16
Out of stock

4

BOLT (6X39)

09103-06026

20
Out of stock

5

PIN

09206-08001

20
Out of stock

6

GASKET, CYLINDER HEAD | MODEL J/K This part replaces 11141-19C01.

11141-19C03

1
Out of stock

6

GASKET, CYLINDER HEAD | MODEL L/M/N/P/R/S This part replaces 11141-19C02.

11141-19C03

1
Out of stock

6

GASKET, CYLINDER HEAD | MODEL T

11141-19C03

1
Out of stock

7

O RING

09280-12013

6
Out of stock

8

PIN

04211-11189

2
Out of stock

9

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06305.

01550-0630A

1
Out of stock

9

BOLT | MODEL R/S/T This part replaces 01550-06303.

01550-0630A

1
Out of stock

10

NUT

09159-10054

8
Out of stock

11

NUT | MODEL J/K/L/M/N/P This part replaces 08316-16103.

08316-1010B

4
Out of stock

11

NUT | MODEL R/S/T This part replaces 08316-10103.

08316-1010B

4
Out of stock

12

.GASKET (10.2X20X2.3)

09168-10031

8
Out of stock

13

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

4
Out of stock

14

PIPE, OIL NO.1,2

11131-27A00

4
Out of stock

15

PIPE, OIL NO.3

11133-27A00

2
Out of stock

16

PLATE, OIL PIPE RH

11135-27A02

1
Out of stock

17

PLATE, OIL PIPE LH

11136-27A02

1
Out of stock

18

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06128.

01550-06127

4
Out of stock

18

BOLT, CLAMP | MODEL R/S/T This part replaces 01550-06123.

01550-0612A

4
Out of stock

19

SPARK PLUG (NGK,DR8ES) | MODEL J/K/L/M/N/P

09482-00221

4
Out of stock

19

4

$11.47

In stock

19

SPARK PLUG (DENSO,U27ESR-N) | MODEL T This part replaces 09482-00411.

09482-00459

4
Out of stock

19

4

$10.51

In stock

19

4

$14.37

In stock

19

SPARK PLUG (NGK,CR10ET) | OPT MODEL T

09482-00462

4
Out of stock

19

SPARK PLUG (ND,U31ETR) | OPT MODEL T

09482-00463

4
Out of stock

20

PIPE, INTAKE LH | MODEL J/K<-13110-19C00

13101-19C00

1
Out of stock

20

PIPE, INTAKE LH | MODEL L/M/N/P/R/S<-13110-19C10 This part replaces 13101-19C10.

13101-19C12

1
Out of stock

20

PIPE, INTAKE LH | MODEL T

13101-19C12

1
Out of stock

21

PIPE, INTAKE ML | MODEL J/K<-13120-19C00

13102-19C00

1
Out of stock

21

PIPE, INTAKE ML | MODEL L/M/N/P/R/S<-13120-19C10 This part replaces 13102-19C10.

13102-19C12

1
Out of stock

21

PIPE, INTAKE ML | MODEL T

13102-19C12

1
Out of stock

22

PIPE, INTAKE MR | MODEL J/K<-13130-19C00

13103-19C00

1
Out of stock

22

PIPE, INTAKE MR | MODEL L/M/N/P/R/S<-13130-19C10 This part replaces 13103-19C10.

13103-19C12

1
Out of stock

22

PIPE, INTAKE MR | MODEL T

13103-19C12

1
Out of stock

23

PIPE, INTAKE RH | MODEL J/K<-13140-19C00

13104-19C00

1
Out of stock

23

PIPE, INTAKE RH | MODEL L/M/N/P/R/S<-13140-19C10 This part replaces 13104-19C10.

13104-19C12

1
Out of stock

23

PIPE, INTAKE RH | MODEL T; Includes Item(s) 24

13104-19C12

1
Out of stock

24

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

4
Out of stock

25

CAP | MODEL J/K

13150-19C00

4
Out of stock

26

CLAMP | MODEL J/K

09402-50208

4
Out of stock

26

CLAMP | MODEL L/M/N/P/S/T

09402-52208

4
Out of stock

27

SCREW | MODEL J/K/L/M/N/P This part replaces 02152-06165.

02112-0616A

8
Out of stock

27

8

$2.50

In stock

28

PLUG, CYLINDER HEAD | MODEL J/K/L/M/N This part replaces 09248-14004.

09248-14010

4
Out of stock

28

PLUG, CYLINDER HEAD | MODEL P/R/S/T

09248-14010

4
Out of stock

29

GASKET

09168-14002

4
Out of stock
