CARBURETOR (MODEL K)

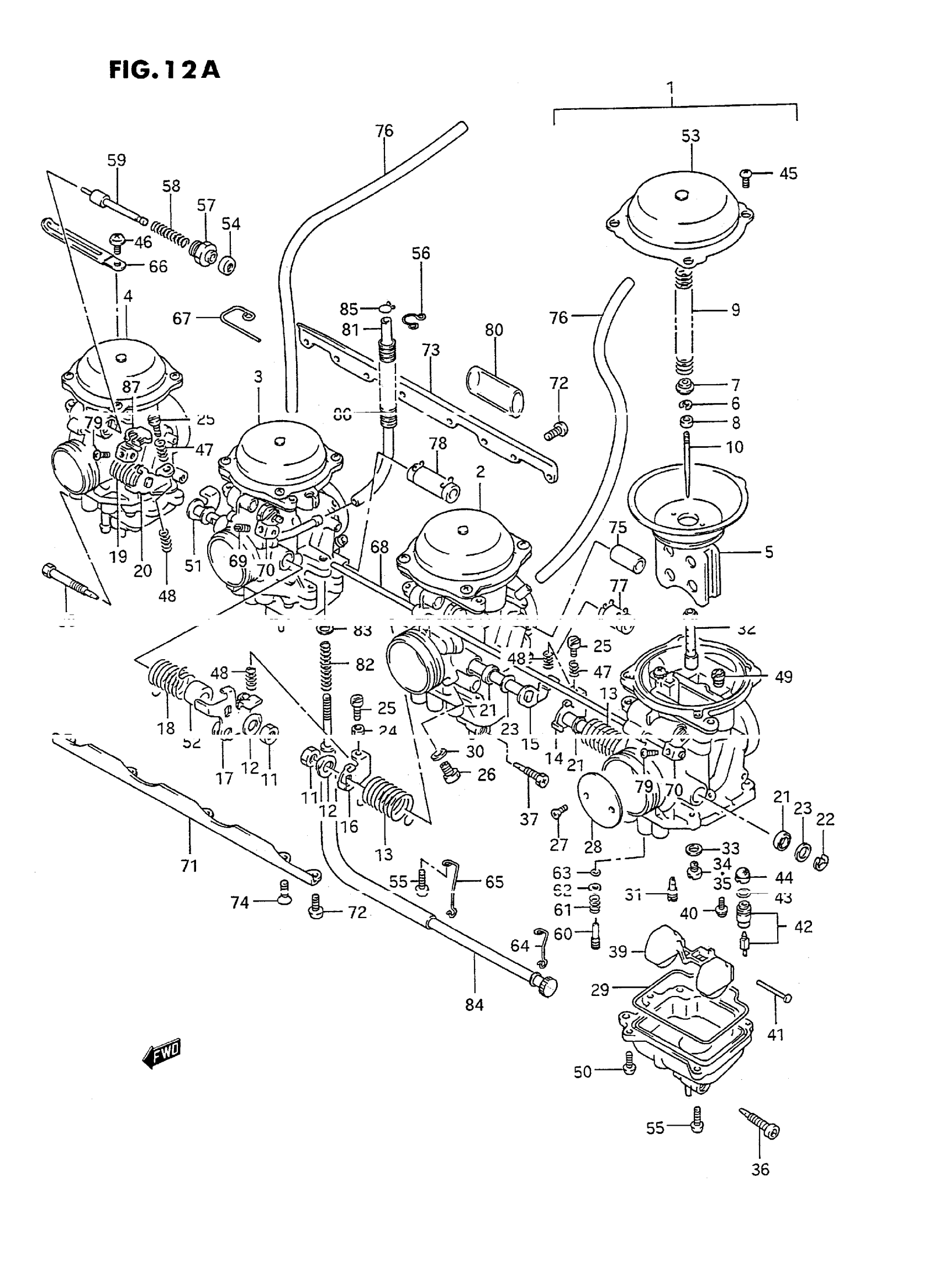

1996 Suzuki GSX600FT Carburetor Diagram
Find the part on the Carburetor diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASSY, LH
13201-43C00
2
CARBURETOR ASSY, ML
13202-43C00
3
CARBURETOR ASSY, MR
13203-43C00
4
CARBURETOR ASSY, RH | Includes Item(s) 5 - 67
13204-43C00
5
DIAPHRAGM ASSY
13500-19C00
9
SPRING
13417-26B00
10
NEEDLE, JET (4CZ3-3)
13383-19C10
11
NUT | ML,MR This part replaces 08310-22086.
08310-0008A
12
WASHER | ML,MR
13606-47070
13
SPRING | LH,ML
13573-28A10
14
SHAFT ASSY | LH
13550-28A30
15
SHAFT ASSY | ML
13550-28A00
16
LEVER | ML
13553-28A00
17
LEVER | MR
13555-28A00
18
SPRING | MR
13573-28A00
19
SPRING | RH
13573-28A20
20
SHAFT ASSY | RH
13550-28A20
21
SEAL This part replaces 13651-51010.
13651-51011
22
E RING | LH,RH
13617-44080
23
WASHER
13557-47070
24
NUT | ML
13582-95216
25
SCREW | LH,ML,RH
13267-52012
26
SCREW
13605-73000
27
SCREW, THROTTLE VALVE This part replaces 13604-42A00.
13604-44080
28
VALVE, THROTTLE (130)
13551-42A30
30
WASHER
13249-78100
31
JET, PILOT (40)
09492-40014
32
JET, NEEDLE (P-9)
09494-00623
34
JET, MAIN (137.5) | LH,RH
09491-27010
35
JET, MAIN (135) | ML,MR
09491-27009
36
SCREW, DRAIN | LH
13247-24500
39
FLOAT
13250-28A00
47
SPRING | LH,RH
13271-28A00
48
SPRING | LH,ML,RH This part replaces 13268-96110.
13268-96111
49
JET, PILOT AIR (160)
09493-32002
50
SCREW | LH,ML:3,MR,RH:4 This part replaces 13602-27A10.
02112-04127
51
SHAFT ASSY | MR
13550-28A10
52
RING | MR
13574-28A00
53
COVER ASSY This part replaces 13502-28A00.
13502-09F00
55
SCREW | LH,ML This part replaces 13602-19C00.
13602-48B10
56
CLIP | ML
13692-02500
59
PLUNGER ASSY
13411-05320
62
WASHER
13291-29900
63
O-RING This part replaces 13295-29900.
13295-29901
64
CLIP | LH
13692-19C00
65
CLIP | ML
13692-43C00
66
CLAMP(L:80) | RH This part replaces 13671-05A20.
09404-06036
67
CLIP | MR
13671-48B00
68
SHAFT, STARTER
13586-48B00
69
SCREW This part replaces 13605-49330.
13605-47070
70
LEVER This part replaces 13422-28A00.
13422-48B10
71
PLATE
13628-19C00
72
SCREW This part replaces 02112-05128.
02112-05127
73
PLATE
13628-19C10
74
SCREW
09126-05005
75
HOSE(6.5X11.5X6 | L:400->18 This part replaces 13683-49160.
09355-65001-600
76
HOSE,5X10X600 | L:550->400 This part replaces 13684-22A00.
44421-13ER0
77
HOSE ASSY This part replaces 13680-27A00.
13218-03D01
78
HOSE ASSY This part replaces 13680-28A00.
13680-28A01
79
SCREW This part replaces 13605-34390.
13605-09300
80
HOSE (16X19X100) | L:100->30
13684-43440
81
.HOSE This part replaces 13683-05A30.
09352-50006-600
82
SPRING
13271-28A10
83
WASHER
13432-47090
84
ADJUSTER
13267-43C00
85
CLIP This part replaces 13671-05A30.
09401-08410
86
HOSE (10X14X225)
13684-19C00
87
LEVER
13422-48B00
88
REFER TO FIG.12B(C-13) FOR
SPECIAL NOTE
