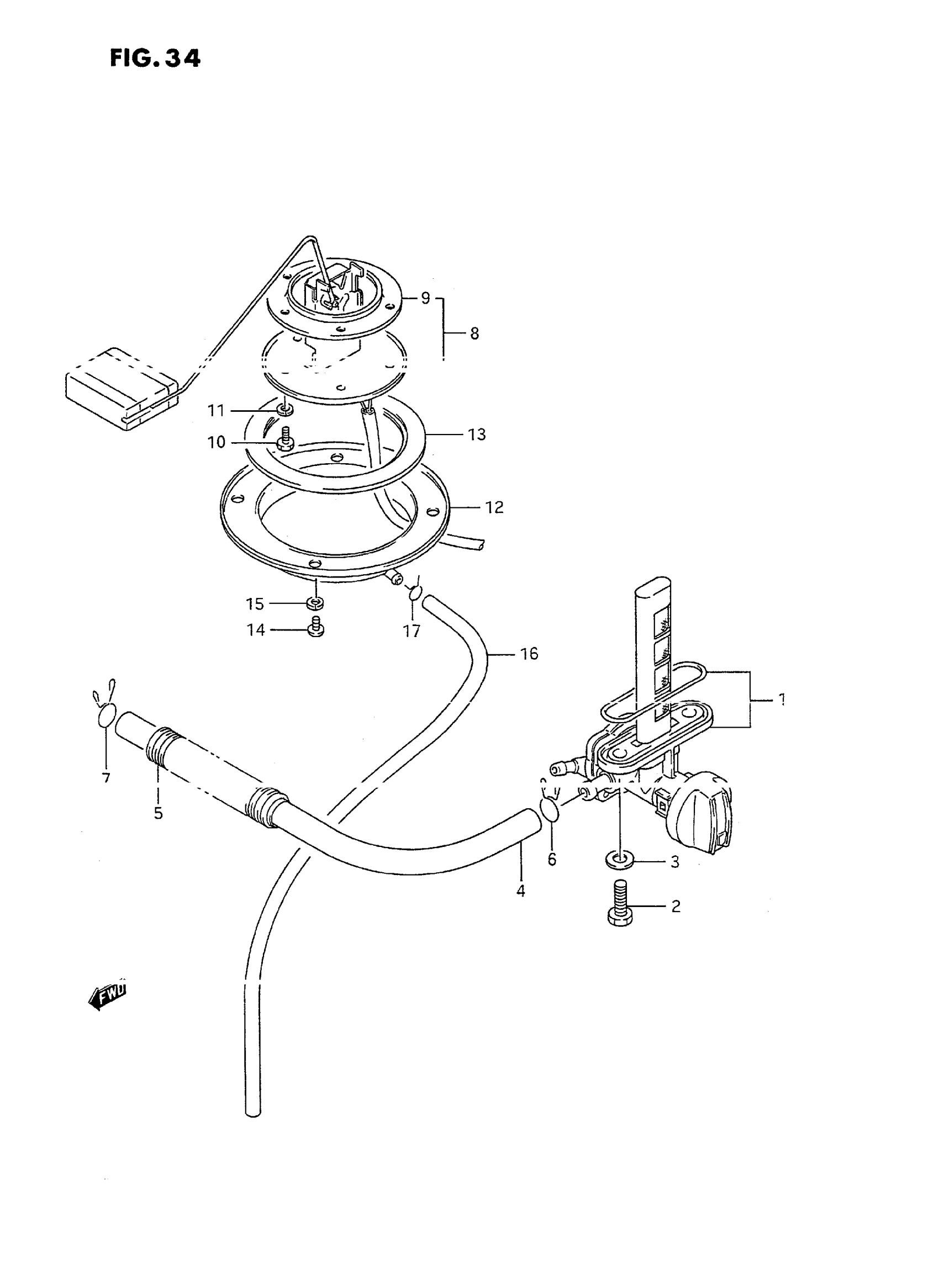

Suzuki GSX600FT (1996) FUEL COCK (MODEL J/K) Diagram

#

Description
Price

1

COCK ASSY,FUEL This part replaces 44300-19C00.

44300-19C01

Unavailable

2

BOLT This part replaces 09128-06006.

09128-06057

$1.64

3

GASKET

09168-06023

$2.01

4

HOSE,6.5X11.5X6 This part replaces 09354-70123-600.

44421-12FR0

$11.29

5

TUBE, FUEL HOSE

44311-19C00

Unavailable

6

CLIP This part replaces 09401-12406.

09401-11415

$2.24

7

CLIP

09401-12403

$1.84

8

GUAGE ASSY, FUEL LEVEL | Includes Item(s) 9

34810-19C00

Unavailable

9

GASKET

34825-49001

$5.34

10

BOLT | MODEL J This part replaces 01500-05103.

01500-0510B

$1.81

10

BOLT | MODEL K This part replaces 01570-05103.

01570-0510B

$2.55

11

LOCK WASHER | MODEL J This part replaces 08321-01053.

08321-0105A

$1.83

12

PLATE, FUEL DRAIN

34885-40A00

Unavailable

13

GASKET FUEL DRA This part replaces 34888-40A00.

34888-40A01

$12.20

14

SCREW | MODEL J This part replaces 02112-05083.

02112-0508A

$1.43

14

SCREW | MODEL K This part replaces 02112-35083.

02112-3508B

$1.63

15

LOCK WASHER | MODEL J This part replaces 08321-01053.

08321-0105A

$1.83

16

HOSE This part replaces 09352-50823-00B.

09352-50005-00B

$12.58

17

CLIP

09401-08402

$1.38

18

REFER TO FIG.34A(F-12) FOR

SPECIAL NOTE

Unavailable
