1996 Suzuki GSX600FT Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

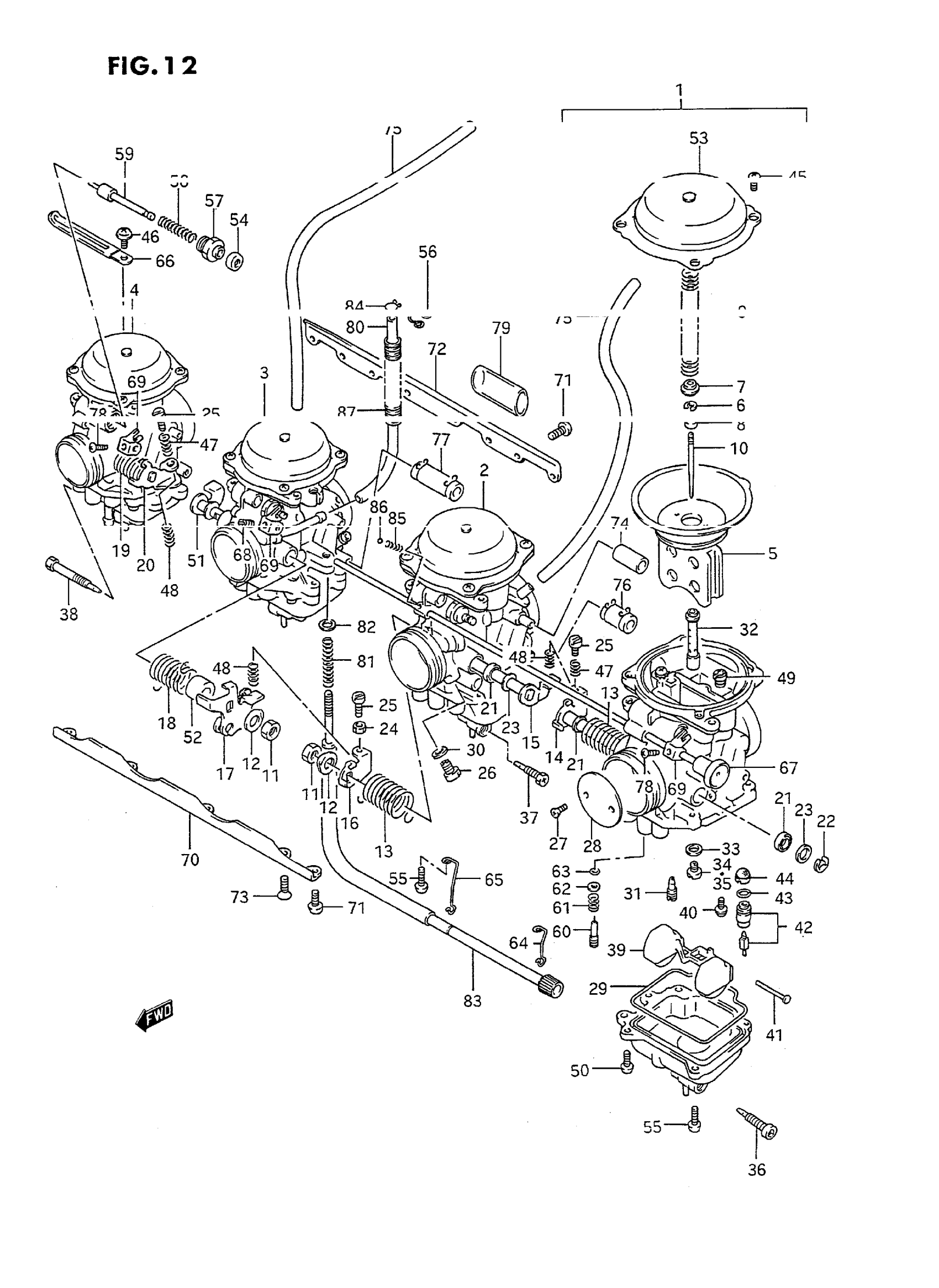

1996 Suzuki GSX600FT Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY, LH

13201-19C00

—
Out of stock

2

CARBURETOR ASSY, ML

13202-19C00

—
Out of stock

3

CARBURETOR ASSY, MR

13203-19C00

—
Out of stock

4

CARBURETOR ASSY, RH | Includes Item(s) 5 - 66

13204-19C00

—
Out of stock

5

DIAPHRAGM ASSY

13500-19C00

4
Out of stock

6

E RING

13394-10010

4

$4.76

In stock

7

RING

13382-42A00

4

$4.46

In stock

8

RING

13387-47010

4

$7.41

In stock

9

SPRING

13417-26B00

4
Out of stock

10

NEEDLE, JET (4CZ3-3)

13383-19C10

4
Out of stock

11

NUT | ML,MR This part replaces 08310-22086.

08310-0008A

2
Out of stock

12

WASHER | ML,MR

13606-47070

2
Out of stock

13

SPRING | LH,ML

13573-28A10

2
Out of stock

14

SHAFT ASSY | LH

13550-28A30

1
Out of stock

15

SHAFT ASSY | ML

13550-28A00

1
Out of stock

16

LEVER | ML

13553-28A00

1
Out of stock

17

LEVER | MR

13555-28A00

1
Out of stock

18

SPRING | MR

13573-28A00

1
Out of stock

19

SPRING | RH

13573-28A20

1
Out of stock

20

SHAFT ASSY | RH

13550-28A20

1
Out of stock

21

SEAL This part replaces 13651-51010.

13651-51011

8
Out of stock

22

E RING | LH,RH

13617-44080

2
Out of stock

23

WASHER

13557-47070

4
Out of stock

24

NUT | ML

13582-95216

1
Out of stock

25

SCREW | LH,ML,RH

13267-52012

3
Out of stock

26

SCREW

13605-73000

4
Out of stock

27

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

8
Out of stock

28

VALVE, THROTTLE (130)

13551-42A30

4
Out of stock

29

O RING

13251-42A00

4

$9.00

In stock

30

WASHER

13249-78100

4
Out of stock

31

JET, PILOT (40)

09492-40014

4
Out of stock

32

JET, NEEDLE (P-9)

09494-00597

—
Out of stock

33

4

$2.92

In stock

34

JET, MAIN (137.5) | LH,RH

09491-27010

2
Out of stock

35

JET, MAIN (135) | ML,MR

09491-27009

2
Out of stock

36

SCREW, DRAIN | LH

13247-24500

1
Out of stock

38

1

$4.97

In stock

39

FLOAT

13250-28A00

4
Out of stock

40

SCREW

13602-43410

4

$3.67

In stock

41

PIN

13254-92311

4

$2.41

In stock

42

VALVE ASSY, NEEDLE

13370-44500

4

$50.83

In stock

43

4

$5.97

In stock

44

4

$10.26

In stock

46

1

$1.79

In stock

47

SPRING | LH,RH

13271-28A00

2
Out of stock

48

SPRING | LH,ML,RH This part replaces 13268-96110.

13268-96111

3
Out of stock

49

JET, PILOT AIR (160)

09493-32002

4
Out of stock

50

SCREW | LH,ML:3,MR,RH:4 This part replaces 13602-27A10.

02112-04127

14
Out of stock

51

SHAFT ASSY | MR

13550-28A10

1
Out of stock

52

RING | MR

13574-28A00

1
Out of stock

53

COVER ASSY This part replaces 13502-28A00.

13502-09F00

4
Out of stock

54

.CAP, STARTER VALVE

13682-31210

4

$4.36

In stock

55

SCREW | LH,ML This part replaces 13602-19C00.

13602-48B10

2
Out of stock

56

CLIP | ML

13692-02500

1
Out of stock

57

.HOLDER, GUIDE

13418-44080

4

$10.26

In stock

58

SPRING

13417-43010

4

$4.33

In stock

59

PLUNGER ASSY

13411-05320

4
Out of stock

60

SCREW, AIR (1 7/8)

13279-47070

4

$13.33

In stock

61

.SPRING (NT:45)

13268-47070

4

$4.33

In stock

62

WASHER

13291-29900

4
Out of stock

63

O-RING This part replaces 13295-29900.

13295-29901

4
Out of stock

64

CLIP | LH

13692-19C00

1
Out of stock

65

CLIP | ML

13692-19C10

1
Out of stock

66

CLAMP(L:80) | RH This part replaces 13671-05A20.

09404-06036

1
Out of stock

67

SHAFT, STARTER

13410-28A00

1
Out of stock

68

SCREW This part replaces 13605-49330.

13605-47070

1
Out of stock

69

LEVER This part replaces 13422-28A00.

13422-48B10

4
Out of stock

70

PLATE

13628-19C00

1
Out of stock

71

SCREW This part replaces 02112-05128.

02112-05127

14
Out of stock

72

PLATE

13628-19C10

1
Out of stock

73

SCREW

09126-05005

2
Out of stock

74

HOSE(6.5X11.5X6 | L:400->18 This part replaces 13683-49160.

09355-65001-600

2
Out of stock

75

HOSE,5X10X600 | L:550->400 This part replaces 13684-22A00.

44421-13ER0

2
Out of stock

76

HOSE ASSY This part replaces 13680-27A00.

13218-03D01

2
Out of stock

77

HOSE ASSY This part replaces 13680-28A00.

13680-28A01

1
Out of stock

78

SCREW This part replaces 13605-34390.

13605-09300

3
Out of stock

79

HOSE (16X19X100) | L:100->30

13684-43440

1
Out of stock

80

.HOSE This part replaces 13683-05A30.

09352-50006-600

1
Out of stock

81

SPRING

13271-28A10

1
Out of stock

82

WASHER

13432-47090

1
Out of stock

83

ADJUSTER

13683-19C10

1
Out of stock

84

CLIP This part replaces 13671-05A30.

09401-08410

1
Out of stock

85

2

$7.08

In stock

86

STEEL BALL

13596-93010

2

$5.00

In stock

87

HOSE (10X14X225)

13684-19C00

1
Out of stock

88

REFER TO FIG.12A(C-10) FOR

SPECIAL NOTE

—
Out of stock
