2006 Suzuki GSX600F OIL PAN Diagram

← All diagrams

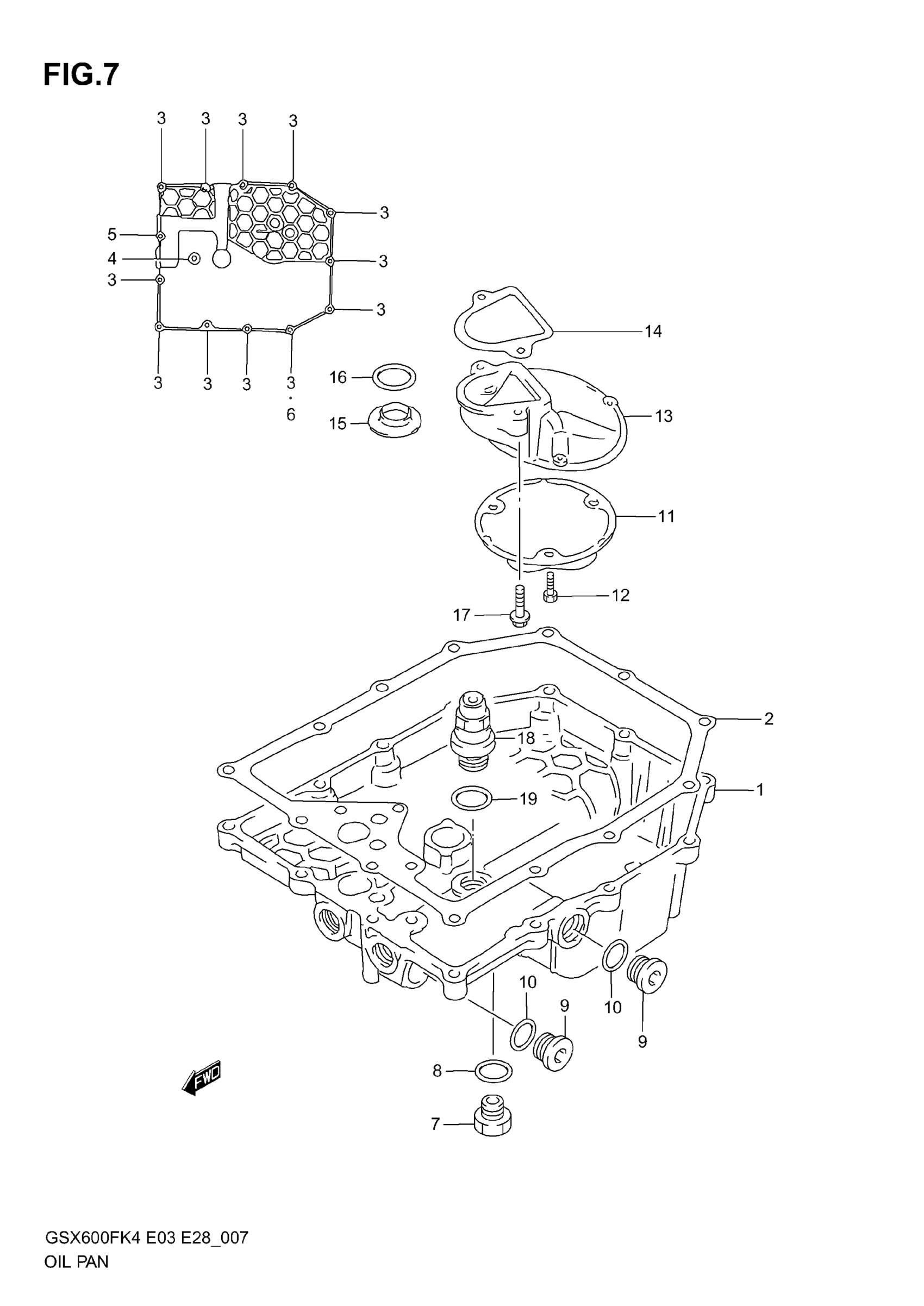

Find the part on the OIL PAN diagram for your 2006 Suzuki GSX600F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki GSX600F OIL PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PAN, OIL

11511-26E01

1
Out of stock

2

GASKET, OIL PAN

11489-27A21

1
Out of stock

3

BOLT This part replaces 01550-06253.

01550-0625A

12
Out of stock

4

BOLT This part replaces 01550-06303.

01550-0630A

1
Out of stock

5

BOLT This part replaces 01550-06503.

01550-0650A

1
Out of stock

6

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

7

PLUG, OIL DRAIN

09247-14026

1

$3.63

In stock

8

GASKET

09168-14002

1
Out of stock

9

PLUG, OIL GALLERY

09248-16012

2
Out of stock

10

GASKET

09168-16002

2
Out of stock

11

STRAINER, ENGINE OIL

16520-09301

1
Out of stock

12

BOLT This part replaces 01570-06123.

01570-0612A

3
Out of stock

13

PROTECTOR, STRAINER

16525-06B00

1
Out of stock

14

GASKET, PROTECTOR

16528-27A21

1
Out of stock

15

GASKET, OIL OUTLET

16529-27A01

1
Out of stock

16

O RING (D:3.2,ID:17.8)

09280-18009

1
Out of stock

17

BOLT This part replaces 01550-06253.

01550-0625A

2
Out of stock

18

VALVE ASSY, OIL RELIEF

16440-17C10

1
Out of stock

19

WASHER

09168-16002

1
Out of stock
