2006 Suzuki GSX600F Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2006 Suzuki GSX600F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

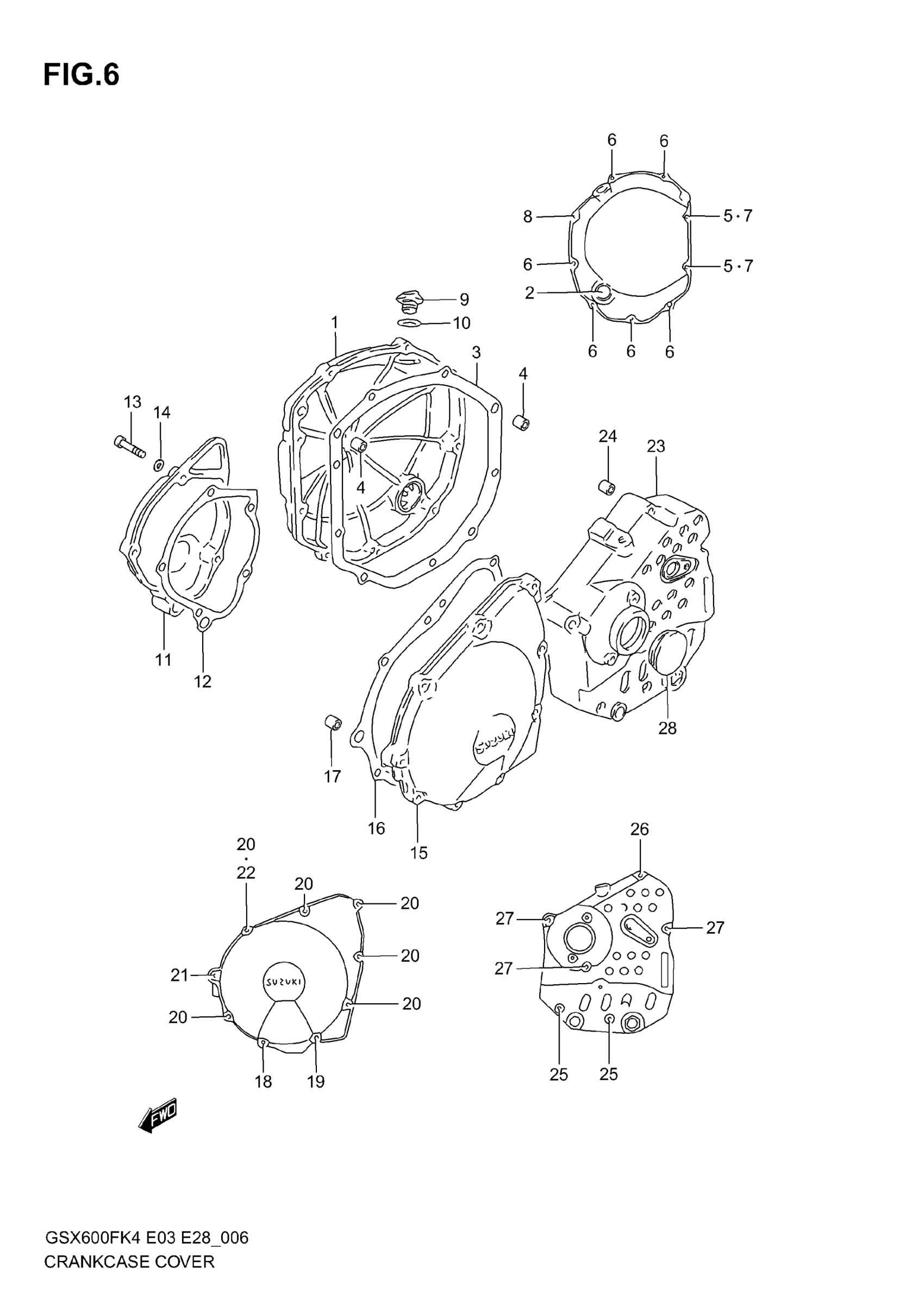

2006 Suzuki GSX600F Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-26E00

1
Out of stock

2

LENS, OIL LEVEL

11971-33210

1
Out of stock

3

GASKET, CLUTCH COVER

11482-27A20

1
Out of stock

4

PIN

04211-09189

2

$1.77

In stock

5

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

6

BOLT | MODEL K4 This part replaces 07130-06253.

07130-0625B

6
Out of stock

6

6

$3.13

In stock

7

BOLT | MODEL K4 This part replaces 07130-06303.

07130-0630B

2
Out of stock

7

BOLT, 6X30 | MODEL K5/K6

09106-06091

2
Out of stock

8

BOLT | MODEL K4 This part replaces 07130-06353.

07130-0635B

1
Out of stock

8

BOLT, 6X35 | MODEL K5/K6

09106-06092

1
Out of stock

9

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

10

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

11

COVER, SIGNAL GENERATOR

11381-26D11

1
Out of stock

12

GASKET

11491-27A30

1
Out of stock

13

BOLT (6X23) | MODEL K4

09106-06082

5
Out of stock

13

BOLT, 6X22 | MODEL K5/K6

09106-06094

5
Out of stock

14

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

15

COVER, STARTER GEAR

11351-26E01

1
Out of stock

16

GASKET, GEAR COVER

11483-27A20

1
Out of stock

17

PIN

09206-11007

1
Out of stock

18

BOLT | MODEL K4 This part replaces 07130-06163.

07130-0616B

1
Out of stock

18

BOLT, 6X16 | MODEL K5/K6

09106-06115

1
Out of stock

19

BOLT, FRONT BRG HOUSING | MODEL K4 This part replaces 07130-06203.

07130-0620B

1
Out of stock

19

BOLT, 6X20 | MODEL K5/K6

09106-06116

1
Out of stock

20

BOLT | MODEL K4 This part replaces 07130-06253.

07130-0625B

6
Out of stock

20

6

$3.13

In stock

21

BOLT, STATOR | MODEL K4 This part replaces 07130-06403.

07130-0640B

1
Out of stock

21

BOLT, 6X40 | MODEL K5/K6

09106-06093

1
Out of stock

22

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

23

COVER, ENGINE SPROCKET

11361-19E00

1
Out of stock

24

PIN

04211-09129

2
Out of stock

25

BOLT | MODEL K4 This part replaces 07130-06353.

07130-0635B

2
Out of stock

25

BOLT, 6X35 | MODEL K5/K6

09106-06092

2
Out of stock

26

BOLT | MODEL K4 E3,E28 This part replaces 07130-06503.

07130-0650B

1
Out of stock

26

1

$3.79

In stock

26

BOLT, 6X50 | MODEL K5/K6 E3,E28

09106-06109

1
Out of stock

26

BOLT, 6X70 | MODEL K5/K6 E33

09106-06112

1
Out of stock

27

BOLT | MODEL K4 This part replaces 07130-06653.

07130-0665B

3
Out of stock

27

BOLT, 6X65 | MODEL K5/K6

09106-06111

3
Out of stock

28

CAP, CLUTCH RELEASE

09250-30003

1
Out of stock
