2006 Suzuki GSX600F Cylinder Head Diagram

← All diagrams

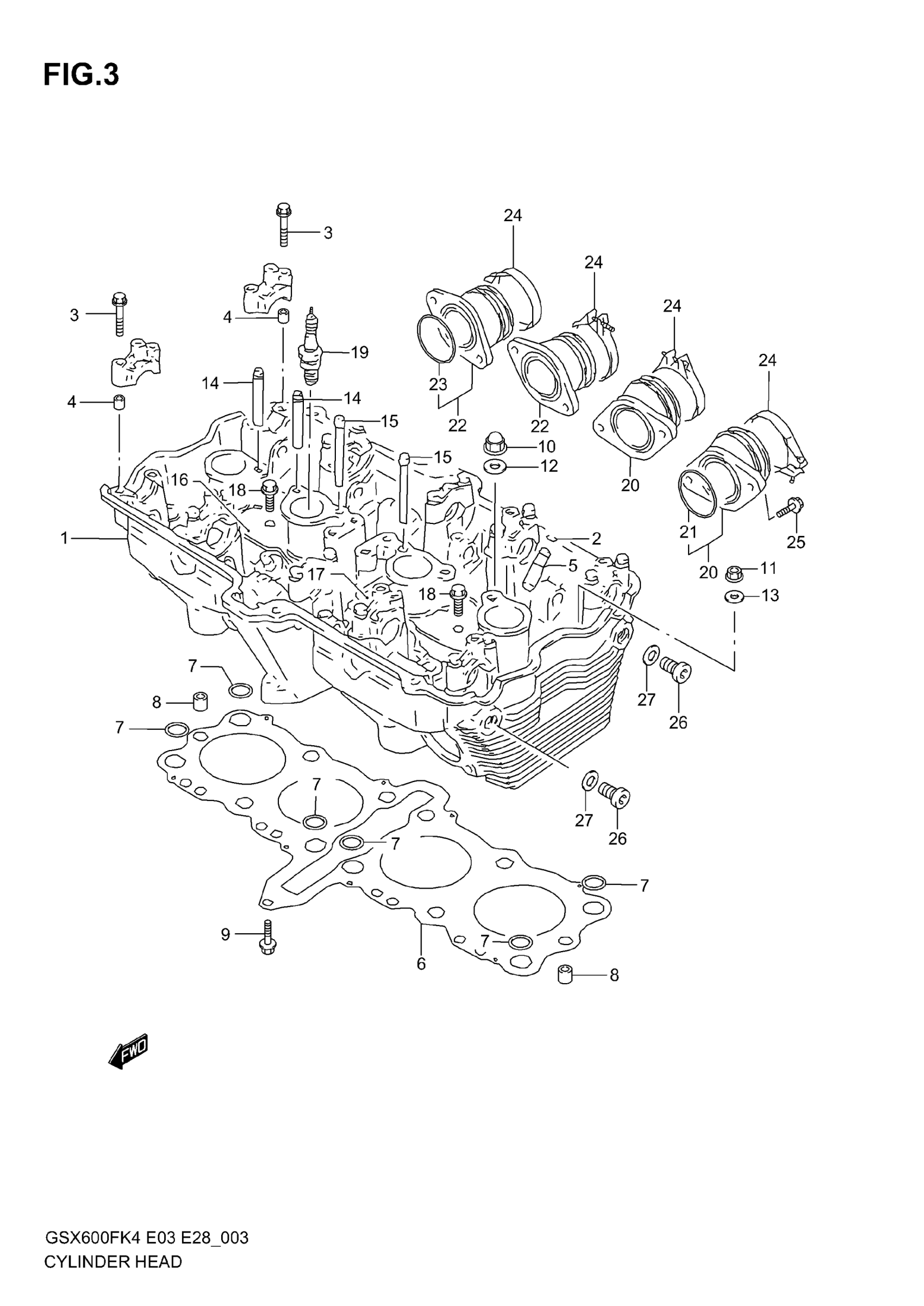

Find the part on the Cylinder Head diagram for your 2006 Suzuki GSX600F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki GSX600F Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | MODEL K4/K5 E3,E28

11100-26E00

1
Out of stock

1

HEAD ASSY, CYLINDER | MODEL K4/K5 E33 MODEL K6; Includes Item(s) 2 - 4

11100-26E10

1
Out of stock

2

.RING (10X85)

09381-10004

16
Out of stock

3

BOLT (6X39)

09103-06026

20
Out of stock

4

PIN

09206-08001

20
Out of stock

5

GUIDE, VALVE (OS:0.3) | OPT

11116-06B70

16
Out of stock

6

GASKET, CYLINDER HEAD

11141-19C03

1
Out of stock

7

O RING (D:2.6,ID:12.1)

09280-12013

6
Out of stock

8

PIN

04211-11169

2
Out of stock

9

BOLT This part replaces 01550-06303.

01550-0630A

1
Out of stock

10

NUT

09159-10054

4
Out of stock

11

NUT This part replaces 08316-10103.

08316-1010B

8
Out of stock

12

.GASKET (10.2X20X2.3)

09168-10031

8
Out of stock

13

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

4
Out of stock

14

PIPE, OIL NO.1, 2

11131-27A00

4
Out of stock

15

PIPE, OIL NO.3

11133-27A00

2
Out of stock

16

PLATE, OIL PIPE RH

11135-27A02

1
Out of stock

17

PLATE, OIL PIPE LH

11136-27A02

1
Out of stock

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

4
Out of stock

19

4

$11.47

In stock

19

SPARK PLUG (DENSO,U27ESR-N) This part replaces 09482-00411.

09482-00459

4
Out of stock

19

4

$10.51

In stock

19

4

$14.37

In stock

19

SPARK PLUG (NGK,CR10EK) | OPT

09482-00462

4
Out of stock

19

SPARK PLUG (DENSO,U31ETR) | OPT

09482-00463

4
Out of stock

20

PIPE ASSY,INTAK | Includes Item(s) 21 This part replaces 13101-19E00.

13101-19E01

2
Out of stock

21

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

2
Out of stock

23

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

2
Out of stock

24

CLAMP

09402-48208

4
Out of stock

25

BOLT, EXHAUST COVER This part replaces 07120-06163.

07120-0616B

8
Out of stock

26

PLUG, CYLINDER HEAD | MODEL K4

09248-14010

4
Out of stock

26

PLUG, SHAFT | MODEL K5/K6 This part replaces 09248-14012.

09248-14011

4
Out of stock

27

GASKET

09168-14002

4
Out of stock
