2003 Suzuki GSX600F Front Brake Hose Diagram

← All diagrams

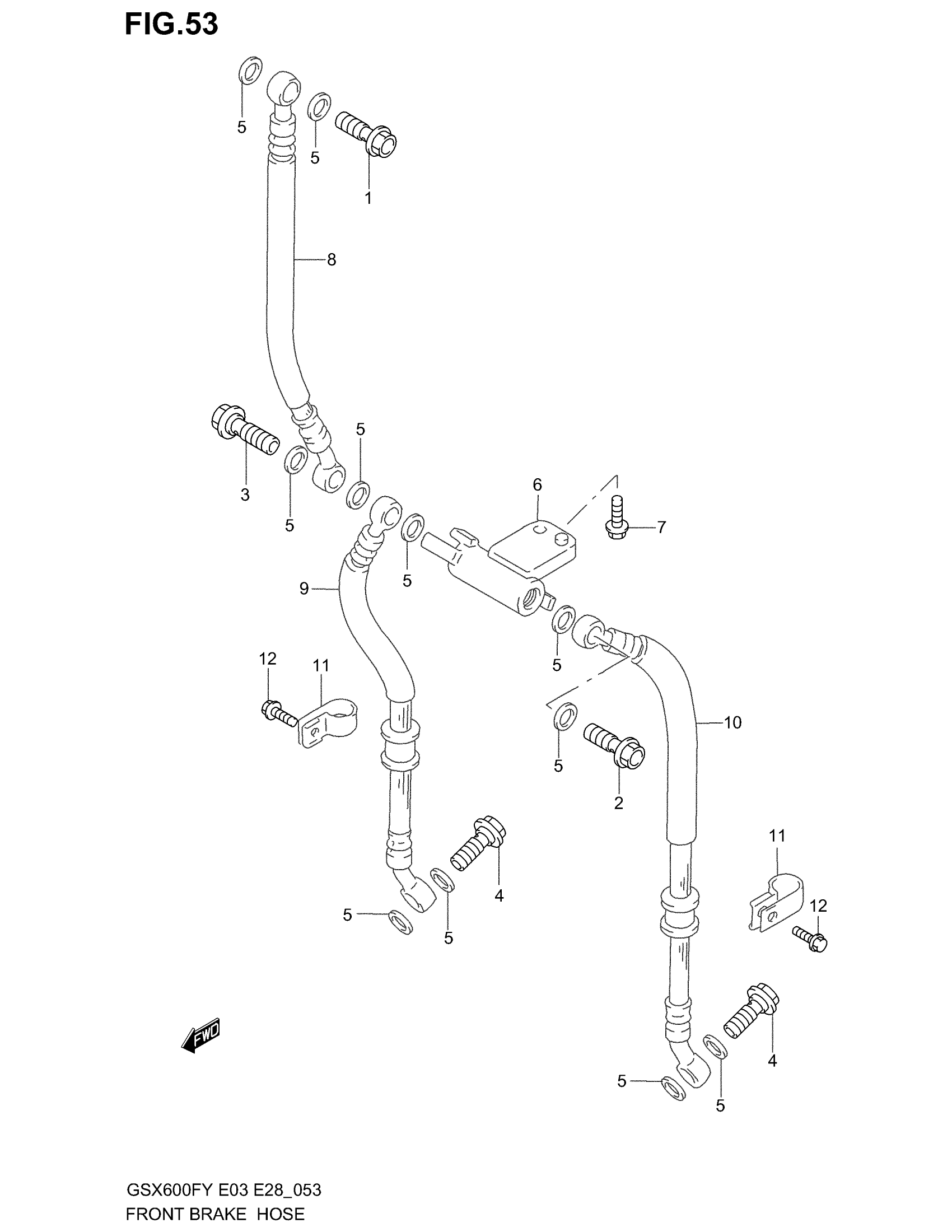

Find the part on the Front Brake Hose diagram for your 2003 Suzuki GSX600F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX600F Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$6.33

In stock

2

1

$6.33

In stock

3

UNION This part replaces 09360-10043.

09360-10063

1
Out of stock

4

UNION This part replaces 09360-10042.

09360-10062

2
Out of stock

5

WASHER (10X15X1.5)

09161-10009

11
Out of stock

6

JOINT, BRAKE HOSE

59491-17E00

1
Out of stock

7

BOLT This part replaces 01550-06163.

01550-0616A

1
Out of stock

8

HOSE COMP,FR,BR This part replaces 59480-08F00.

59480-08F01

1
Out of stock

9

HOSE This part replaces 59240-08F00.

59240-08F02

1
Out of stock

10

HOSE This part replaces 59440-08F00.

59440-08F02

1
Out of stock

11

CLAMP, BRAKE HOSE NO.2

59268-45D00

2
Out of stock

12

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock
