Description

Price

CALIPER ASSY, REAR | Includes Item(s) 1 - 11 This part replaces 69100-05C90.

69100-05CG0-999

$284.18

1

PISTON SET This part replaces 69100-05850.

69100-05851

$55.80

2

SEAL SET, PISTON This part replaces 69100-32820.

69101-05840

$21.28

3

PAD & SHIM SET This part replaces 69100-05870.

69102-05820

$77.48

4

BOLT

59145-05C50

$7.51

5

SPRING

59143-16700

$5.30

6

PIN

69141-46E01

$7.99

7

CLIP

69142-46E01

$15.75

8

COVER

59151-16701

$12.58

9

BLEEDER

59121-18410

$7.99

10

CAP

55156-66310

$4.73

11

SHIM

59371-33420

$17.08

12

BOLT This part replaces 01550-08303.

01550-0830A

$2.80

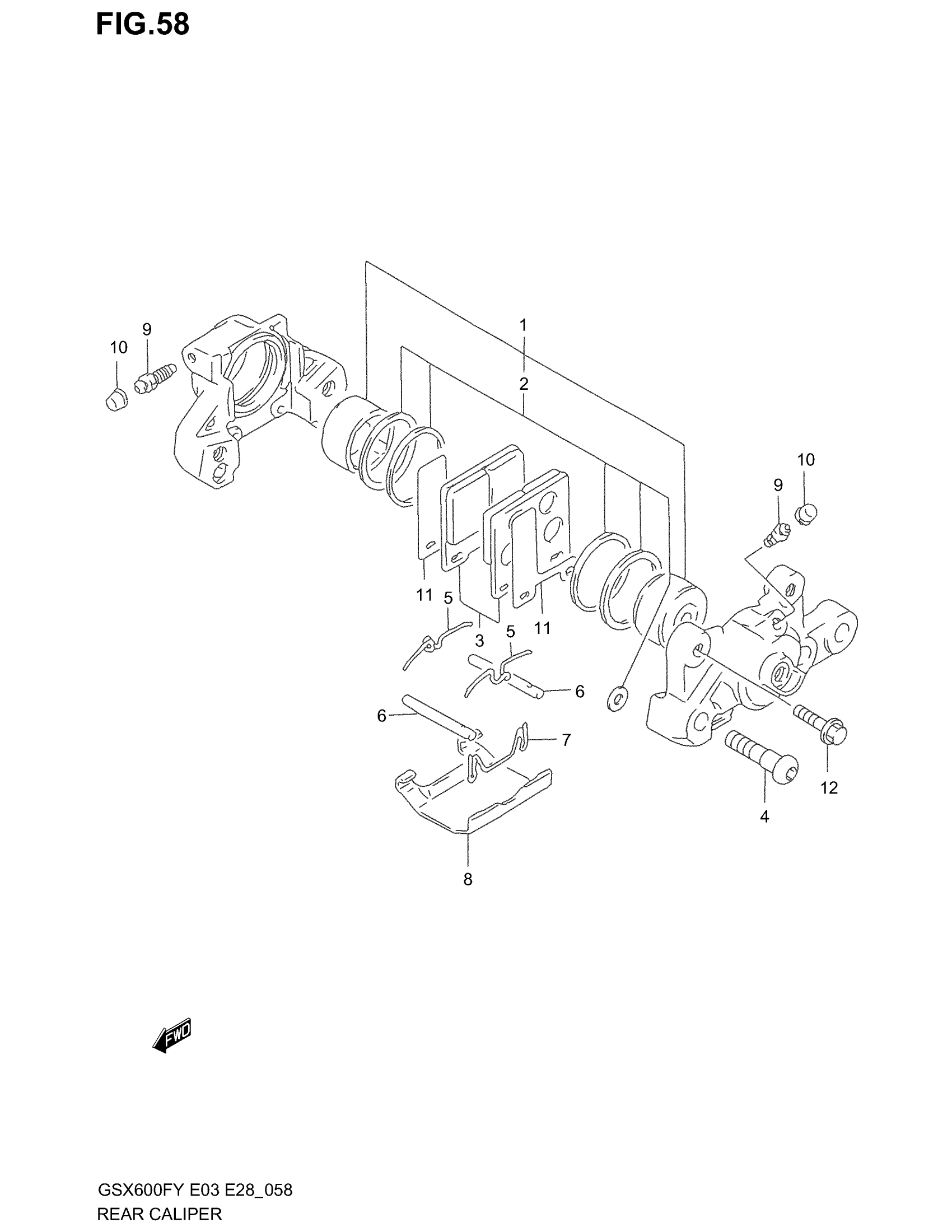

Suzuki GSX600F (2003) REAR CALIPER Diagram
