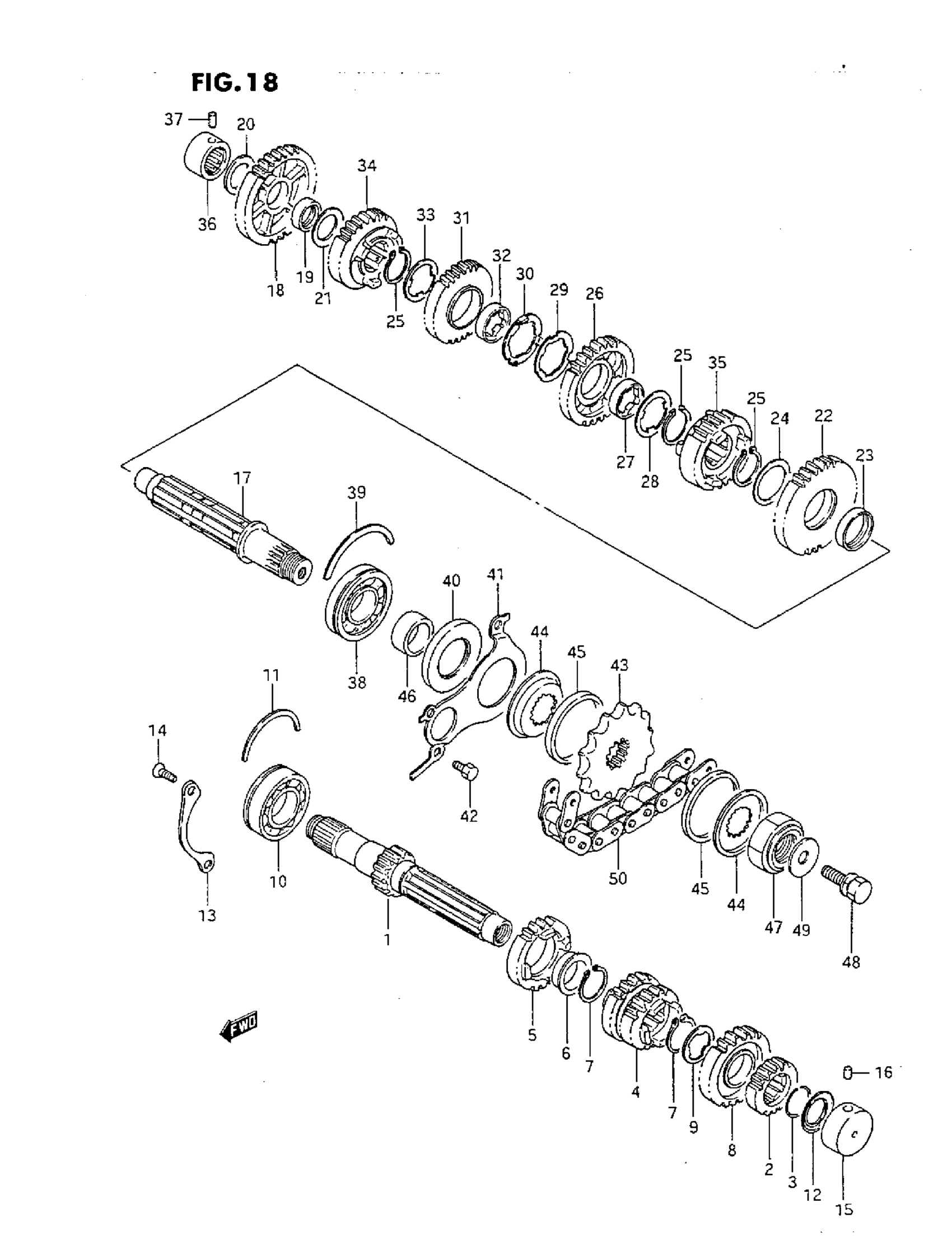

Find the part on the Transmission diagram for your 1993 Suzuki GSX600F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX600F Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:12) | MODEL J/K/L/M

24121-19C01

1
Out of stock

1

COUNTERSHAFT (NT:12) | MODEL N/P This part replaces 24121-20C00.

24121-20C10

1
Out of stock

1

COUNTERSHAFT (NT:12) | MODEL R

24121-20C10

1
Out of stock

2

GEAR, 2ND DRIVE (NT:16)

24221-27A01

1
Out of stock

2

GEAR, 2ND DRIVE (NT:16) This part replaces 24221-27A10.

24221-27A01

1
Out of stock

3

CIRCLIP | MODEL J/K/L/M

09380-25012

1
Out of stock

3

CIRCLIP | MODEL N/P/R

09380-25013

1
Out of stock

4

GEAR, 3/4TH DRIVE (NT:17/20)

24231-27A00

1
Out of stock

4

GEAR, 3/4TH DRIVE (NT:17/20) This part replaces 24231-27A10.

24231-27A00

1
Out of stock

5

GEAR, 5TH DRIVE (NT:22)

24251-27A01

1
Out of stock

6

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

1
Out of stock

7

SNAP RING

09380-25003

2
Out of stock

8

GEAR, 6TH DRIVE (NT:21) | ~E.NO.129569 This part replaces 24261-27A00.

24261-17C02

1
Out of stock

8

GEAR, 6TH DRIVE (NT:21) | E.NO.129570~ This part replaces 24261-17C01.

24261-17C02

1
Out of stock

9

WASHER LOCK (25.1X31X1.0)

09167-25012

1
Out of stock

10

BEARING, LH This part replaces 09262-25051.

09262-25105

1
Out of stock

11

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

12

OIL SEAL

09285-20006

1
Out of stock

13

HOLDER, BEARING

24741-27A00

1
Out of stock

14

SCREW

02122-06167

2
Out of stock

15

BEARING(20X34X1 This part replaces 09263-20049.

09263-20119

1
Out of stock

16

PIN

04221-07129

1
Out of stock

17

DRIVESHAFT

24131-27A02

1
Out of stock

18

GEAR, 1ST DRIVEN (NT:37) | MODEL J/K/L/M/N/P This part replaces 24311-19C01.

24311-19C10

1
Out of stock

18

GEAR, 1ST DRIVEN (NT:37) | MODEL R

24311-19C10

1
Out of stock

19

BUSH

09300-22008

1
Out of stock

20

WASHER, RH

08211-20341

1

$3.05

In stock

21

WASHER, LH

08211-22341

1

$4.18

In stock

22

GEAR, 2ND DRIVEN (NT:33) | MODEL J/K This part replaces 24321-27A01.

24321-27A02

1
Out of stock

22

GEAR, 2ND DRIVEN (NT:33) | MODEL L/M/N/P/R

24321-27A02

1
Out of stock

23

BUSH

09300-28001

1
Out of stock

24

.SHIM (28X38X1) This part replaces 08211-28381.

09181-28195

1
Out of stock

25

CIRCLIP This part replaces 08331-31286.

08331-31289

3
Out of stock

26

GEAR, 3RD DRIVEN (NT:28) | ~E.NO.129569

24331-27A00

1
Out of stock

26

GEAR, 3RD DRIVEN (NT:28) | E.NO.129570~

24331-17D00

1
Out of stock

27

BUSH

24332-27A00

1
Out of stock

28

WASHER, LH

09167-28001

1
Out of stock

29

WASHER, RH (T:1.5)

09167-28002

1
Out of stock

30

WASHER, RH (T:1.0)

09169-28001

1
Out of stock

31

GEAR, 4TH DRIVEN (NT:28) | MODEL J/K/L/M This part replaces 24341-27A00.

24341-27A01

1
Out of stock

31

GEAR, 4TH DRIVEN (NT:28) | MODEL N/P/R

24341-27A01

1
Out of stock

32

BUSH

24332-27A00

1
Out of stock

33

WASHER, RH

09167-28001

1
Out of stock

34

GEAR, 5TH DRIVEN (NT:27)

24351-27A00

1
Out of stock

35

GEAR, 6TH DRIVEN (NT:23) | ~E.NO.129569

24361-27A02

1
Out of stock

35

GEAR, 6TH DRIVEN (NT:23) | E.NO.129570~

24361-27A03

1
Out of stock

36

BEARING, RH

09263-20040

1
Out of stock

37

PIN (L:20)

04221-07209

1
Out of stock

38

BEARING, LH

09262-25105

1
Out of stock

39

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

40

OIL SEAL

09283-34005

1
Out of stock

41

PLATE

24751-27A01

1
Out of stock

42

BOLT | MODEL J/K/L/M/N/P This part replaces 01107-06107.

01500-06107

4
Out of stock

42

BOLT | MODEL R This part replaces 01500-06123.

01500-0612A

4
Out of stock

43

SPROCKET, ENGINE (NT:14) This part replaces 27511-27A11.

27510-21E00

1
Out of stock

44

HOLDER, DAMPER

27516-19C00

2
Out of stock

45

DAMPER, ENGINE SPROCKET

27517-31300

2
Out of stock

46

SPACER (25X34X16.1)

09180-25090

1
Out of stock

47

NUT

09159-20004

1

$15.18

In stock

48

BOLT | MODEL J/K/L/M/N/P This part replaces 01147-06168.

01570-06167

1
Out of stock

48

BOLT | MODEL R This part replaces 01570-06163.

01570-0616A

1
Out of stock

49

WASHER

08212-06222

1
Out of stock

50

CHAIN,DRIVE 112 This part replaces 27600-19C00-112.

27600-40F20-112

1
Out of stock
