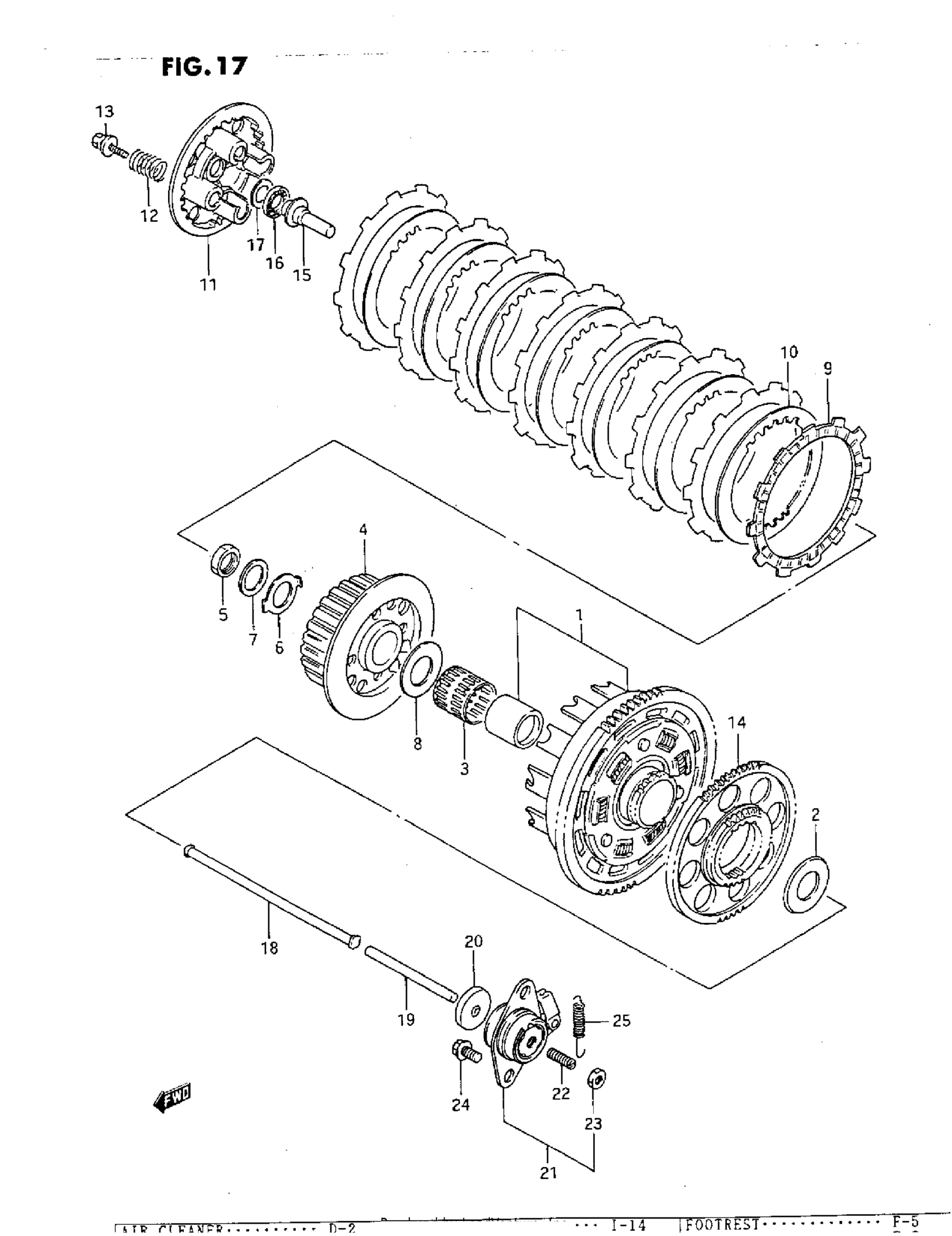

Suzuki GSX600F (1993) CLUTCH (J/K/L/M) Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:88) | MODEL J/K This part replaces 21200-19811.

21200-19813

Unavailable

1

GEAR, PRIMARY DRIVEN (NT:88) | MODEL L/M

21200-19813

Unavailable

2

WASHER

09160-25067

Unavailable

3

BEARING

09263-35017

$37.12

4

HUB, SLEEVE

21410-27A02

$156.88

5

NUT

09140-22008

$7.98

6

WASHER

09169-22005

Unavailable

7

WASHER (22.2X35X2) This part replaces 09164-22006.

09164-22007

$7.98

8

.WASHER (25X50X2.5)

09160-25056

$10.63

9

PLATE, DRIVE

21441-37400

$16.59

10

PLATE, DRIVEN

21451-05A00

$9.26

11

DISC, PRESSURE

21462-27A00

$65.10

12

SPRING

09440-20016

$4.73

13

BOLT (6X16) This part replaces 09116-06016.

09116-06168

$2.50

14

GEAR, GENERATOR (NT:34/64) This part replaces 22721-19C01.

22721-17D02

Unavailable

15

PIECE, PUSH

23121-27A00

Unavailable

16

BEARING (15X28X2)

09263-15003

$7.49

17

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.52

18

ROD, CLUTCH PUSH,RH This part replaces 23110-19C00.

23110-20C00

$27.55

19

ROD, PUSH LH

23111-31301

$12.58

20

OIL SEAL

09285-06015

$7.20

21

SCREW ASSY, RELEASE

23200-31300

Unavailable

22

SCREW

09134-06010

$2.81

23

.NUT This part replaces 08310-22067.

08310-00067

$1.83

24

BOLT This part replaces 01517-06167.

01550-06167

$2.22

25

SPRING

09443-07038

$2.80
