1993 Suzuki GSX600F Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1993 Suzuki GSX600F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

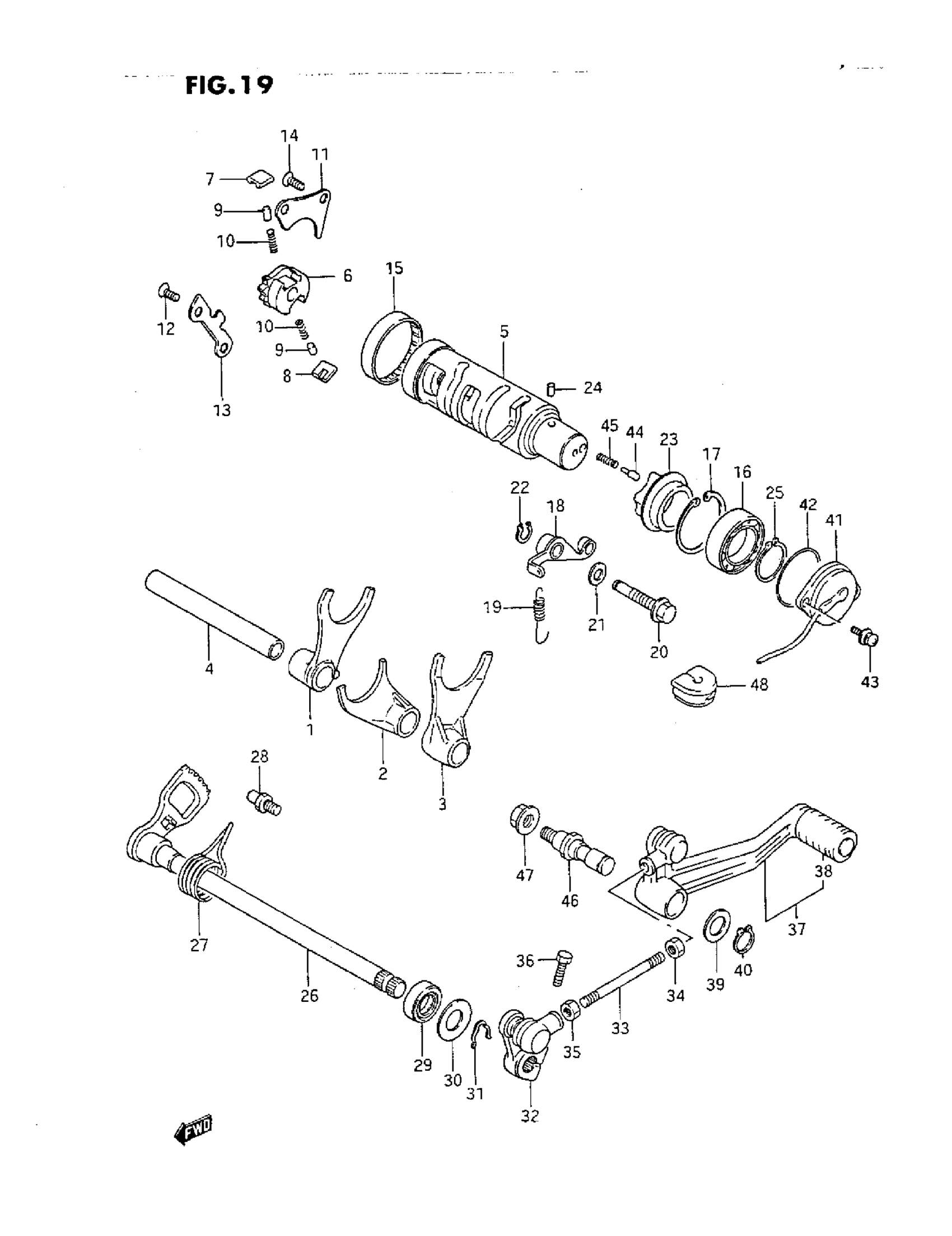

1993 Suzuki GSX600F Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-27A00.

25211-27A12

1
Out of stock

2

FORK, GEAR SHIFTING NO.2

25221-27A01

1
Out of stock

3

FORK, GEAR SHIFTING NO.3

25231-27A00

1
Out of stock

4

1

$33.02

In stock

5

CAM, GEAR SHIFT This part replaces 25310-27A02.

25310-27A03

1
Out of stock

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

1
Out of stock

7

PAWL, GEAR SHIFT NO.1

25323-34201

1

$7.20

In stock

8

PAWL, GEAR SHIFT NO.2

25324-34201

1

$7.41

In stock

9

PIN

09261-05003

2
Out of stock

10

SPRING

09440-04003

2

$1.76

In stock

11

LIFTER,GEAR SHI This part replaces 25331-31301.

25331-31310

1
Out of stock

12

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

13

GUIDE, CAM

25341-27A00

1
Out of stock

14

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

15

BEARING, RH

09263-43001

1

$36.05

In stock

16

BEARING

08113-69050

1
Out of stock

17

1

$2.61

In stock

18

STOPPER, CAM

25350-27A00

1

$19.03

In stock

19

SPRING

09443-09031

1
Out of stock

20

SHAFT, STOPPER

25353-27A00

1
Out of stock

21

GASKET

09168-10002

1

$2.27

In stock

22

1

$1.90

In stock

23

PLATE, STOPPER

25381-38400

1
Out of stock

24

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

25

CIRCLIP

08331-31256

1

$1.09

In stock

26

SHAFT, GEAR SHIFT This part replaces 25510-19C00.

25510-19C01

1
Out of stock

27

SPRING

09444-26017

1

$5.00

In stock

28

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

31

CIRCLIP | <-09384-12001 This part replaces 08331-31126.

08331-3112A

1
Out of stock

33

ROD, GEAR SHIFT LINK This part replaces 25525-27A10.

25525-27A30

1
Out of stock

34

NUT

09140-06011

1

$1.47

In stock

35

.NUT | MODEL R

08310-00067

1

$1.82

In stock

36

BOLT | MODEL R

01500-06257

1

$2.10

In stock

38

COVER

25652-20C00

1
Out of stock

39

WASHER (12.5X20X1)

09160-12011

1
Out of stock

40

CIRCLIP This part replaces 08331-31126.

08331-3112A

1
Out of stock

41

1

$66.48

In stock

42

O-RING (D:2.4, ID:36.2) | MODEL J/K/L/M/N/P

09280-36001

1
Out of stock

42

1

$2.96

In stock

43

2

$2.60

In stock

44

CONTACT

09209-05011

1
Out of stock

45

SPRING

09440-04010

1
Out of stock

46

SHAFT, LEVER

25617-20A00

1

$29.52

In stock

47

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

1
Out of stock

48

GROMMET

33885-27A01

1

$4.72

In stock
