2019 Suzuki GSX250RL9 Water Pump Diagram

← All diagrams

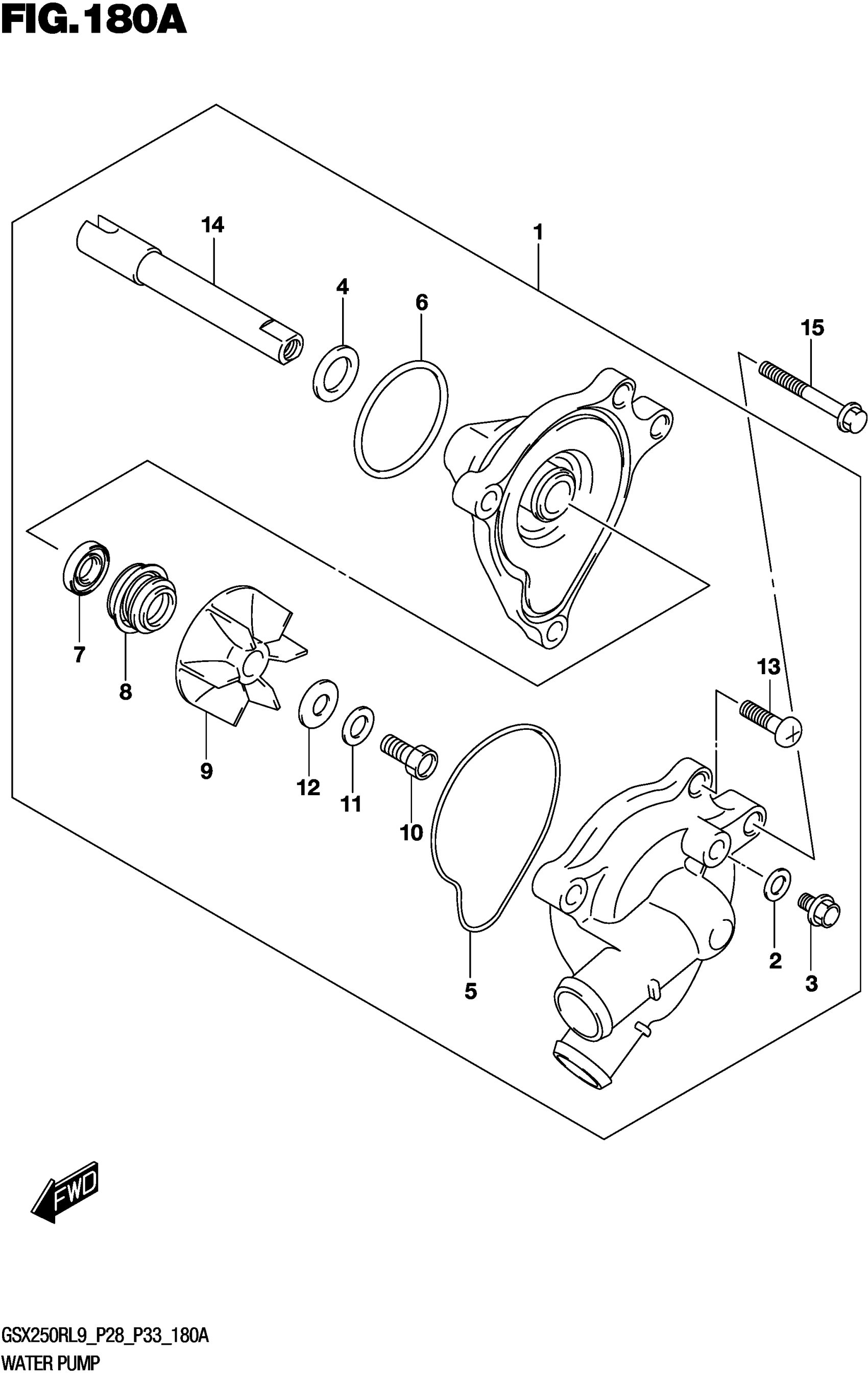

Find the part on the Water Pump diagram for your 2019 Suzuki GSX250RL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki GSX250RL9 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,WATER This part replaces 17400-48H00.

17400-48H01

1
Out of stock

2

.GASKET

17413-28C10

1
Out of stock

3

BOLT, DRAIN This part replaces 17415-00B00.

17415-43D00

1
Out of stock

4

.WASHER

17432-07G00

1
Out of stock

5

.O-RING

17435-12C00

1
Out of stock

6

.O-RING

17435-33400

1
Out of stock

7

.SEAL,OIL

17461-01H00

1
Out of stock

8

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

1
Out of stock

9

.IMPELLER,WATER PUMP

17491-12C00

1
Out of stock

10

.BOLT (6X13)

09100-06099

1
Out of stock

11

.WASHER

09164-06006

1
Out of stock

12

GASKET This part replaces 09168-06016.

09168-06025

1
Out of stock

13

.SCREW

02112-0616A

2
Out of stock

14

.SHAFT

17511-48H00

1
Out of stock

15

BOLT

01547-0635A

2
Out of stock
