2019 Suzuki GSX250RL9 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2019 Suzuki GSX250RL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

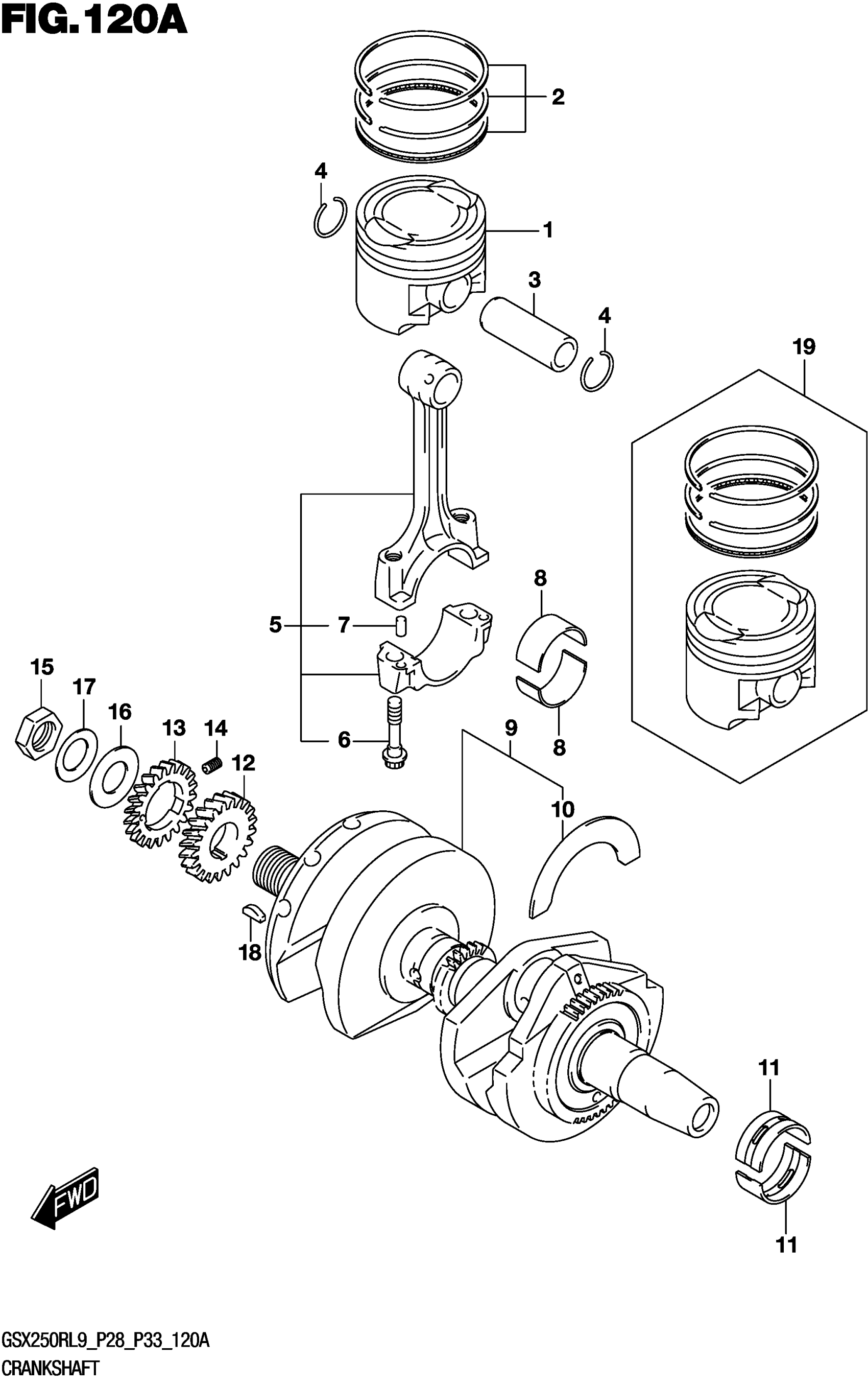

2019 Suzuki GSX250RL9 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON

12111-20K10-0F0

2

$29.98

In stock

2

RING SET, PISTON

12140-20K00

2

$22.65

In stock

3

PIN,PISTON

12151-48H00

2

$7.95

In stock

4

CIRCLIP

09381-15001

4

$1.52

In stock

5

CONNROD ASSY

12160-48H00

2

$226.85

In stock

6

.BOLT,CONNROD

12163-35F00

4

$10.20

In stock

7

PIN (4X13.8)

04221-04089

4
Out of stock

8-1

BEARING,CRANK PIN

12164-39F00-0A0

4

$8.82

In stock

8-2

BEARING,CRANK PIN

12164-39F00-0B0

4

$15.43

In stock

8-3

BEARING,CRANK PIN

12164-39F00-0C0

4

$15.43

In stock

8-4

BEARING,CRANK PIN

12164-39F00-0D0

4

$12.38

In stock

9

CRANKSHAFT SET

12200-48842

1

$1,419.38

In stock

10-1

2

$12.85

In stock

10-1

1

$12.85

In stock

10-2

1

$13.10

In stock

10-3

.BEARING,CRANK THRUST

12228-17E00-0G0

1
Out of stock

10-3

.BEARING,CRANK THRUST

12228-17E00-0G0

1
Out of stock

10-4

.BEARING,CRANK THRUST

12228-17E00-0H0

1
Out of stock

10-5

.BEARING,CRANK THRUST

12228-17E00-0J0

1
Out of stock

10-6

.BEARING,CRANK THRUST

12228-17E00-0K0

1
Out of stock

10-6

.BEARING,CRANK THRUST

12228-17E00-0K0

1
Out of stock

10-7

.BEARING,CRANK THRUST (NO COL

12228-17E00-0L0

1
Out of stock

10-7

.BEARING,CRANK THRUST (NO COL

12228-17E00-0L0

1
Out of stock

11-1

BEARING,CRANKSHAFT

12229-48H10-0A0

8

$32.05

In stock

11-2

BEARING,CRANKSHAFT

12229-48H10-0B0

8

$36.90

In stock

11-3

BEARING,CRANKSHAFT

12229-48H10-0C0

8

$36.90

In stock

11-4

BEARING,CRANKSHAFT

12229-48H10-0D0

8

$35.32

In stock

12

1

$52.70

In stock

14

3

$4.57

In stock

15

NUT

09140-18023

1
Out of stock

16

WASHER (18X33X2.5)

21119-20K00

1

$3.48

In stock

17

WASHER

09164-18012

1
Out of stock

18

KEY (B:4,D:16,H6.5)

09420-04008

1
Out of stock

19

PISTON SET (OS:0.5) | OPT

12100-20K10-050

2

$67.53

In stock
