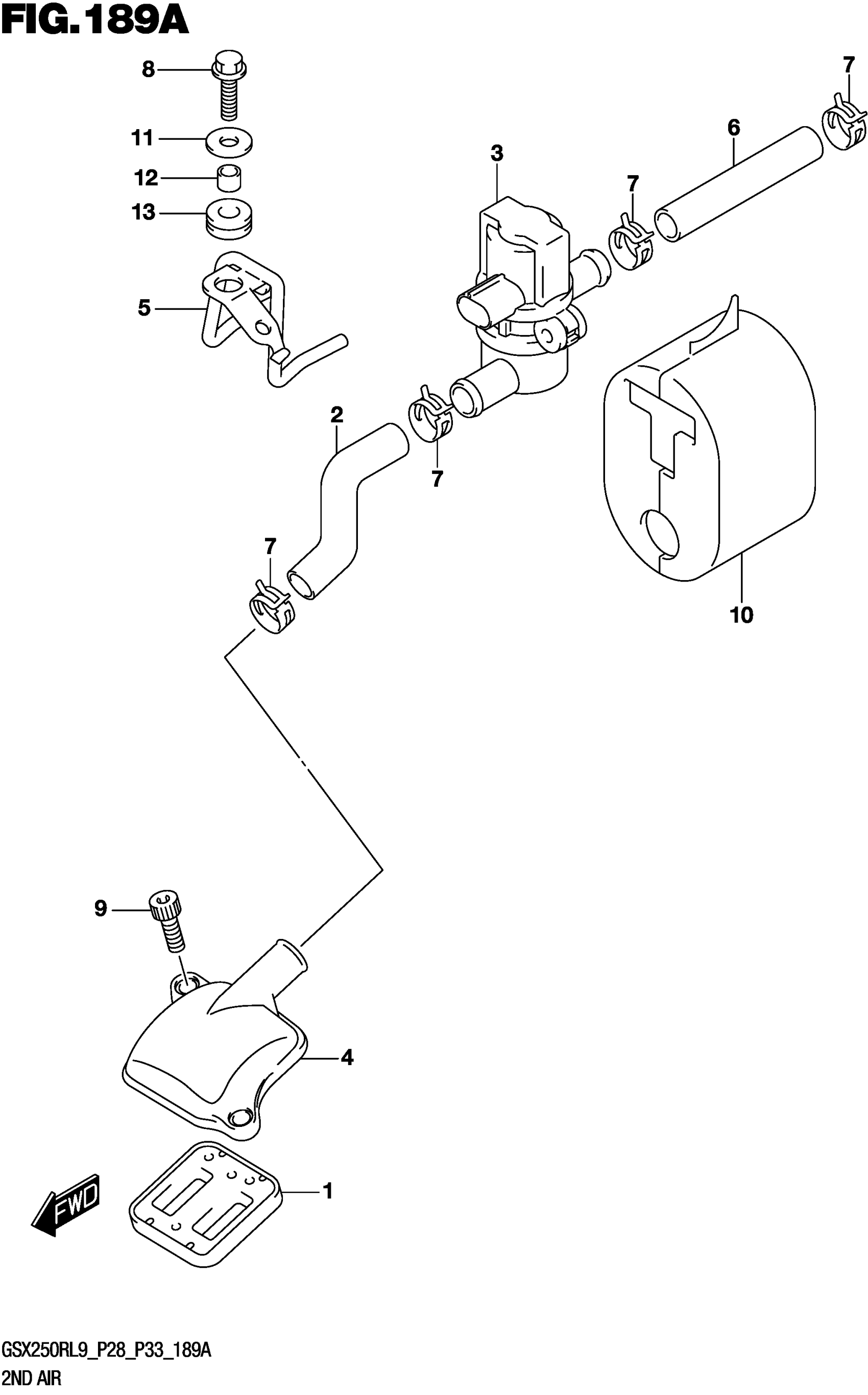

Find the part on the 2ND Air diagram for your 2019 Suzuki GSX250RL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki GSX250RL9 2ND Air Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$46.42

In stock

2

HOSE,2ND AIR VALVE

18461-48H00

1
Out of stock

3

VALVE ASSY,AIR CUT

18510-48H00

1
Out of stock

4

COVER,2ND AIR REED VALVE

18531-48H00

1
Out of stock

5

BRACKET,2ND AIR VALVE

18610-20K00

1

$5.95

In stock

6

HOSE,2ND AIR CLEANER

18711-48H00

1
Out of stock

7

CLIP

09401-17L02

4

$2.50

In stock

8

BOLT (6X20)

01550-0620A

1
Out of stock

9

BOLT This part replaces 07130-0616A.

07130-0616B

2
Out of stock

10

1

$24.62

In stock

11

WASHER (6.5X18X1.0)

09160-06028

1
Out of stock

12

SPACER (6.5X9X5.7)

09180-06256

1
Out of stock

13

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

1
Out of stock
