2019 Suzuki GSX250RL9 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2019 Suzuki GSX250RL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

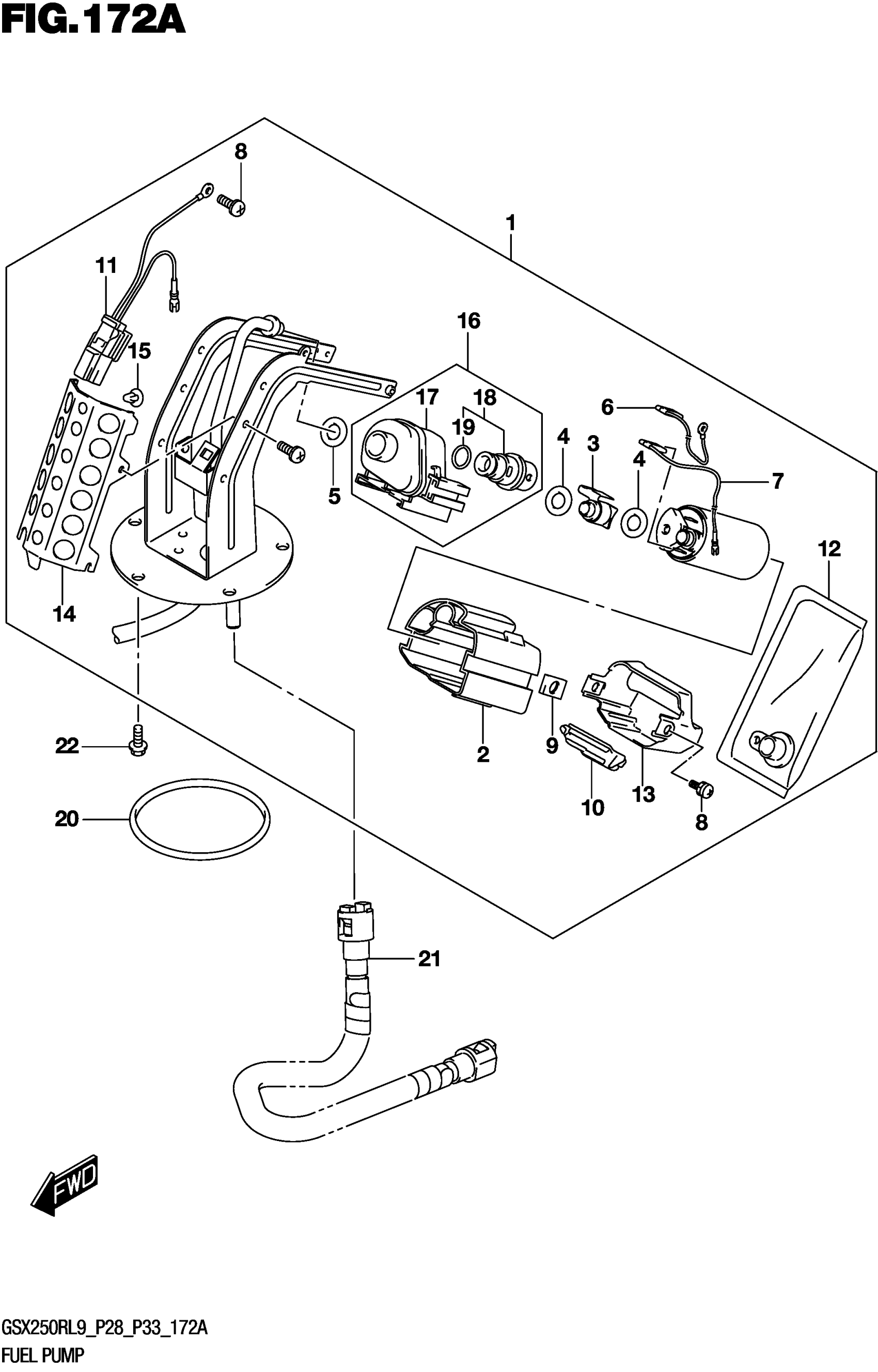

2019 Suzuki GSX250RL9 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL

15100-48H02

1
Out of stock

2

.CUP

15111-18H00

1
Out of stock

3

.JOINT

15112-05H00

1
Out of stock

4

.O-RING

15113-05H00

2
Out of stock

5

.O-RING

15113-35F00

1
Out of stock

6

.WIRE,EARTH

15114-05H01

1
Out of stock

7

.WIRE,LEAD

15115-05H01

1
Out of stock

8

.SCREW

15116-10F00

6
Out of stock

9

.STOPPER

15117-05H00

2
Out of stock

10

.COVER,CUP

15118-18H00

1
Out of stock

11

.HARNESS,GAUGE

15246-18H01

1
Out of stock

12

.STRAINER

15420-48H11

1
Out of stock

13

.VESSEL

15426-48H01

—
Out of stock

14

.GUARD

15581-48H00

1
Out of stock

15

.STOPPER

15582-18H00

1
Out of stock

16

.REGULATOR ASSY,FUEL

15610-48H00

1
Out of stock

17

..FILTER

15410-48H00

—
Out of stock

18

..REGULATOR

15610-48H10

—
Out of stock

19

..O-RING

15113-48H00

1
Out of stock

20

O-RING

15201-48H00

1
Out of stock

21

HOSE,FUEL

15810-48H00

1
Out of stock

22

BOLT

01547-0612A

5
Out of stock
