2018 Suzuki GSX250RL8 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2018 Suzuki GSX250RL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

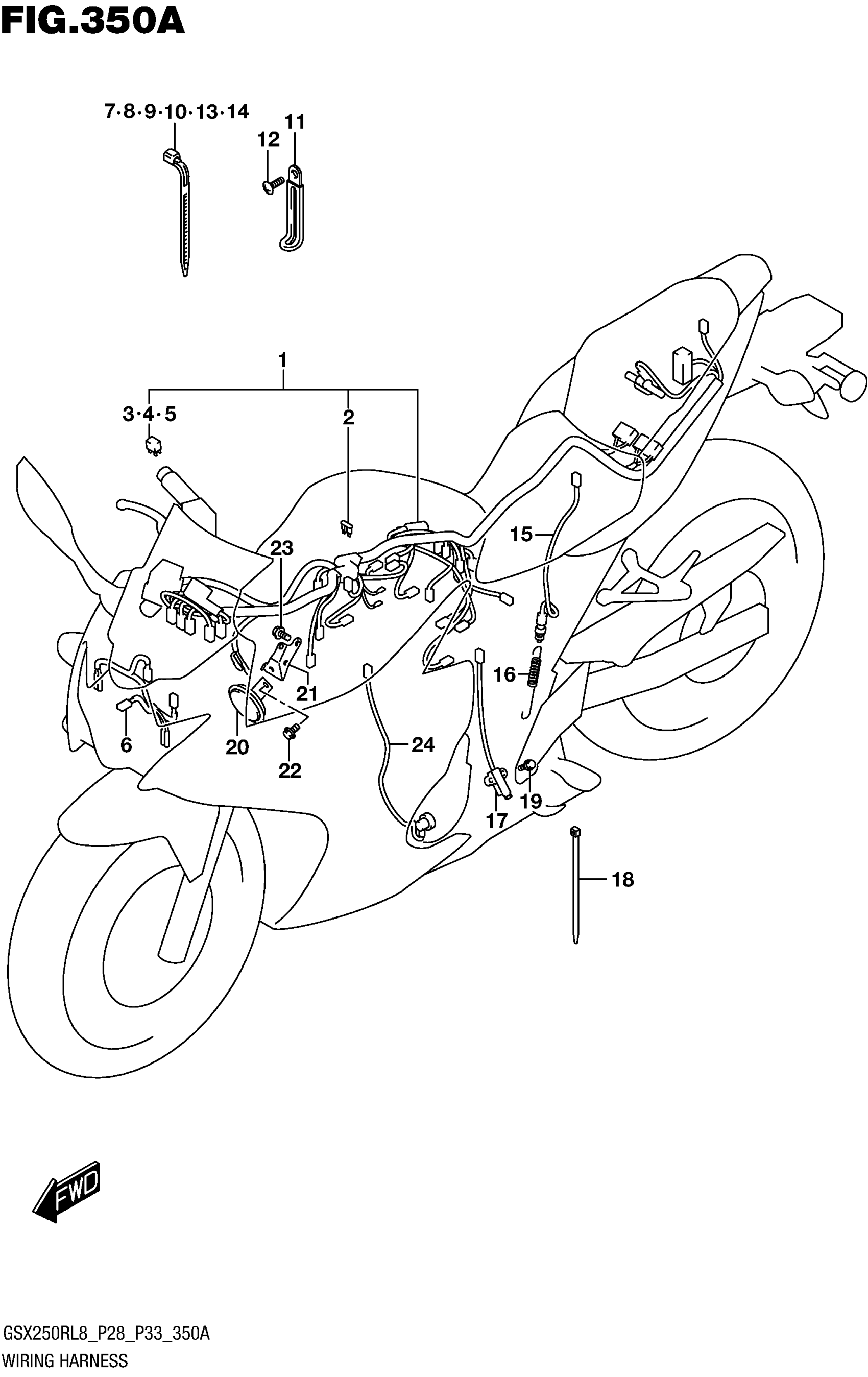

2018 Suzuki GSX250RL8 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING

36610-20K30

1
Out of stock

2

.FUSE (10A)

09481-10504

6
Out of stock

3

.RELAY ASSY | FOR FUEL PUMP

38860-42J00

1
Out of stock

4

.RELAY ASSY | FOR FAN MOTOR

38860-42J00

1
Out of stock

5

.RELAY ASSY | FOR SIDE STAND

38860-42J00

1
Out of stock

6

HARNESS, WIRING NO.2

36620-20K00

1
Out of stock

7

CLAMP (L:190)

09407-19401

2
Out of stock

8

CLAMP, WIRING HARNESS

36990-32G10

1
Out of stock

9

CLAMP, WIRING HARNESS

36990-32G20

2
Out of stock

10

CLAMP,WIRING HARNESS (L:95)

36990-32G30

3
Out of stock

11

CLAMP This part replaces 09404-06206.

09404-06039

2
Out of stock

12

SCREW

03541-0516A

2
Out of stock

13

CLAMP,WIRING HARNESS (L:200)

36990-48H00

2
Out of stock

14

CLAMP,WIRING HARNESS

36990-45H30

—
Out of stock

15

SWITCH ASSY, STOP LAMP This part replaces 37740-20K00.

37740-45D00

1
Out of stock

16

SPRING,BRAKE LAMP SWITCH

43232-20K00

1
Out of stock

17

SWITCH ASSY,SIDE STAND This part replaces 37840-18J00.

37840-18J02

1
Out of stock

18

CLAMP (L:250)

09407-25402

1
Out of stock

19

BOLT

01550-0620B

2
Out of stock

20

HORN ASSY This part replaces 38500-48H30.

38500-48H31

1
Out of stock

21

PLATE,HORN

38590-48H10

—
Out of stock

22

BOLT

01550-0812B

1
Out of stock

23

BOLT

01550-0612B

1
Out of stock

24

WIRE, OIL PRESSURE SWITCH LEA

36851-20K00

1
Out of stock
