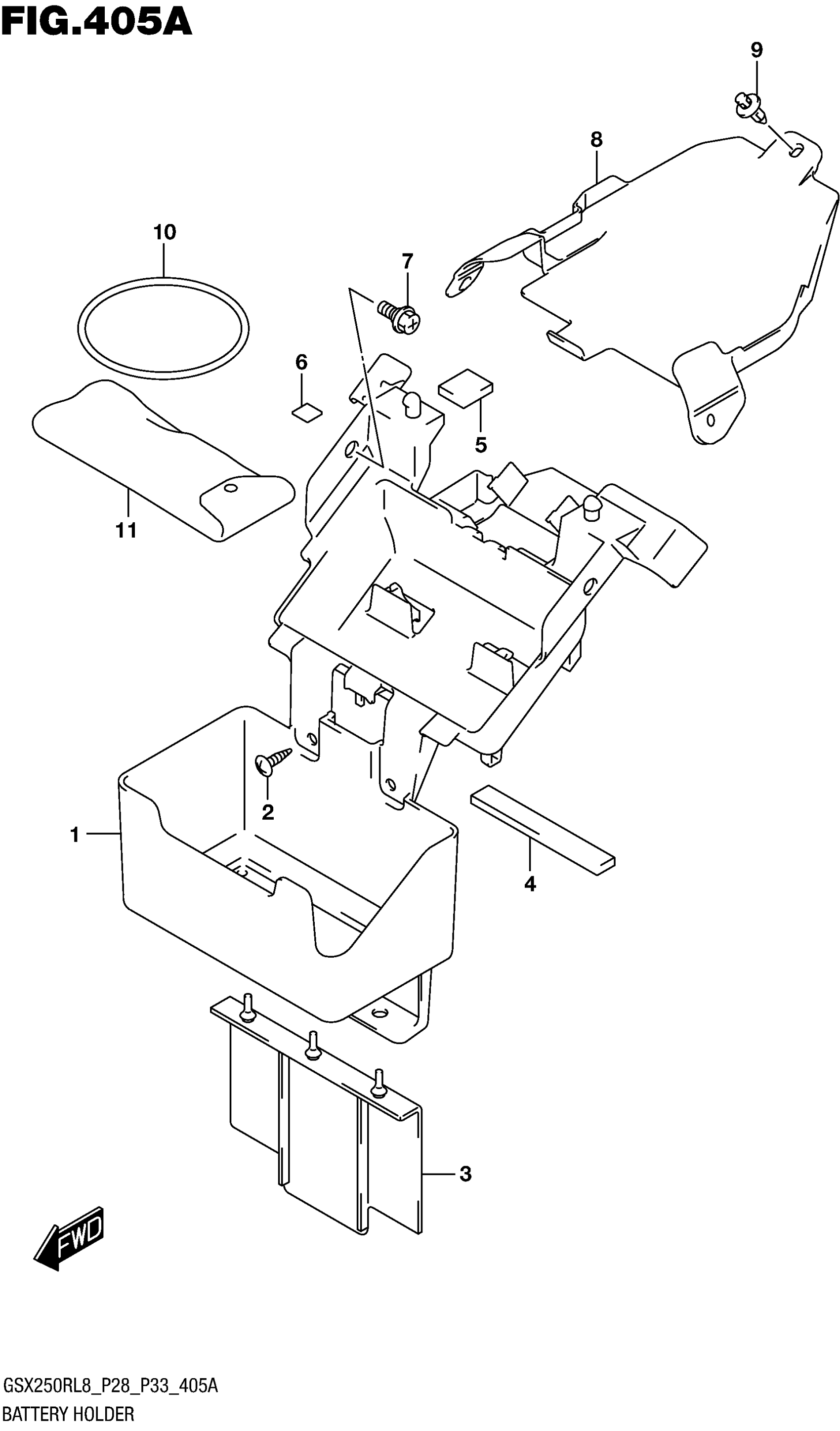

Find the part on the Battery Holder diagram for your 2018 Suzuki GSX250RL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki GSX250RL8 Battery Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER,ELECTRIC PARTS

47411-20K00

1
Out of stock

2

SCREW

03541-0512B

2
Out of stock

3

MUDGUARD, RR FENDER

63113-48H00

1
Out of stock

4

CUSHION,HOLDER NO.1

47413-20K00

1
Out of stock

5

CUSHION,HOLDER NO.2

47414-20K00

1
Out of stock

6

.CUSHION (15X15X1) This part replaces 94429-13E00.

94429-20K00

2
Out of stock

7

BOLT (6X12)

09111-06107

4
Out of stock

8

PLATE,ACCESSORY

47412-20K00

1
Out of stock

9

CLIP, PLATE ACCESSORY

48292-32GH0

3
Out of stock

10

BAND,TOOL

47435-20K00

1
Out of stock

11

TOOL ASSY

96510-20K00

1
Out of stock
