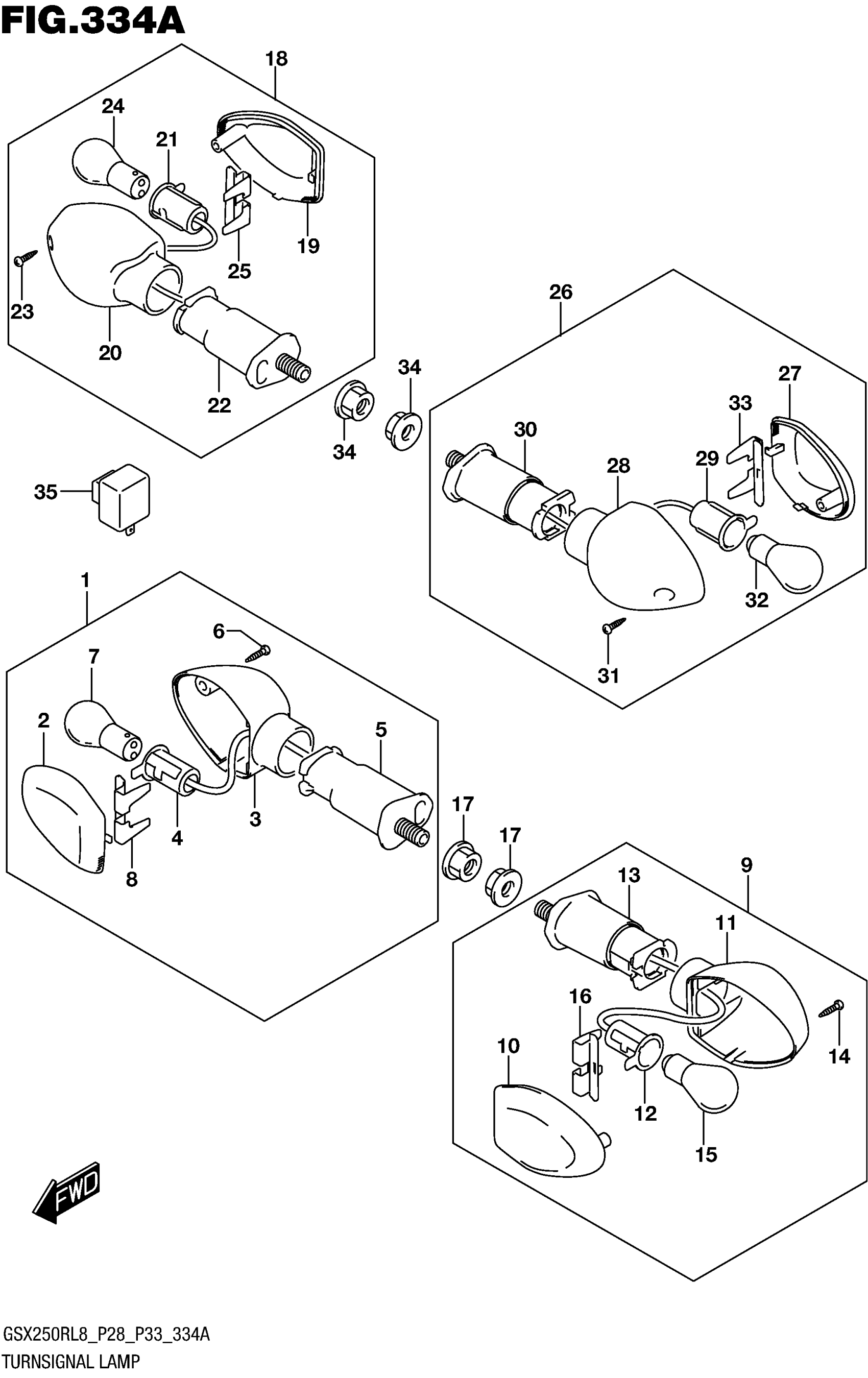

Suzuki GSX250RL8 (2018) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TURNSIGNAL,R This part replaces 35601-20KA0.

35601-20KA1

$28.21

2

.LENS

35612-20KA0

$5.92

3

.HOUSING

35615-20KA0

$4.33

4

.CORD RH

35618-20KA0

Unavailable

5

.RUBBER

35619-20KA0

$3.98

6

.SCREW

03211-0414A

$0.70

7

.BULB (12V21W)

09471-12045

$2.95

8

.PLATE

35616-20KA0

$3.90

9

LAMP ASSY,FR TURNSIGNAL,L This part replaces 35602-20KA0.

35602-20KA1

$40.58

10

.LENS

35632-20KA0

$6.42

11

.HOUSING

35635-20KA0

$6.10

12

.CORD LH

35638-20KA0

$9.87

13

.RUBBER

35619-20KA0

$3.98

14

.SCREW

03211-0414A

$0.70

15

.BULB (12V21W)

09471-12045

$2.95

16

.PLATE

35616-20KA0

$3.90

17

NUT

08316-1010A

$2.95

18

LAMP ASSY,RR TURNSIGNAL,R This part replaces 35603-20KA0.

35603-20KA1

$41.13

19

.LENS

35612-20KA0

$5.92

20

.HOUSING

35615-20KA0

$4.33

21

.CORD RH

35618-20KA0

Unavailable

22

.RUBBER

35619-20KA0

$3.98

23

.SCREW

03211-0414A

$0.70

24

.BULB (12V21W)

09471-12045

$2.95

25

.PLATE

35616-20KA0

$3.90

26

LAMP ASSY,RR TURNSIGNAL,L This part replaces 35604-20KA0.

35604-20KA1

$40.93

27

.LENS

35632-20KA0

$6.42

28

.HOUSING

35635-20KA0

$6.10

29

.CORD LH

35638-20KA0

$9.87

30

.RUBBER

35619-20KA0

$3.98

31

.SCREW

03211-0414A

$0.70

32

.BULB (12V21W)

09471-12045

$2.95

33

.PLATE

35616-20KA0

$3.90

34

NUT

08316-1010A

$2.95

35

RELAY ASSY, TURNSIGNAL LAMP

38610-20K10

Unavailable
