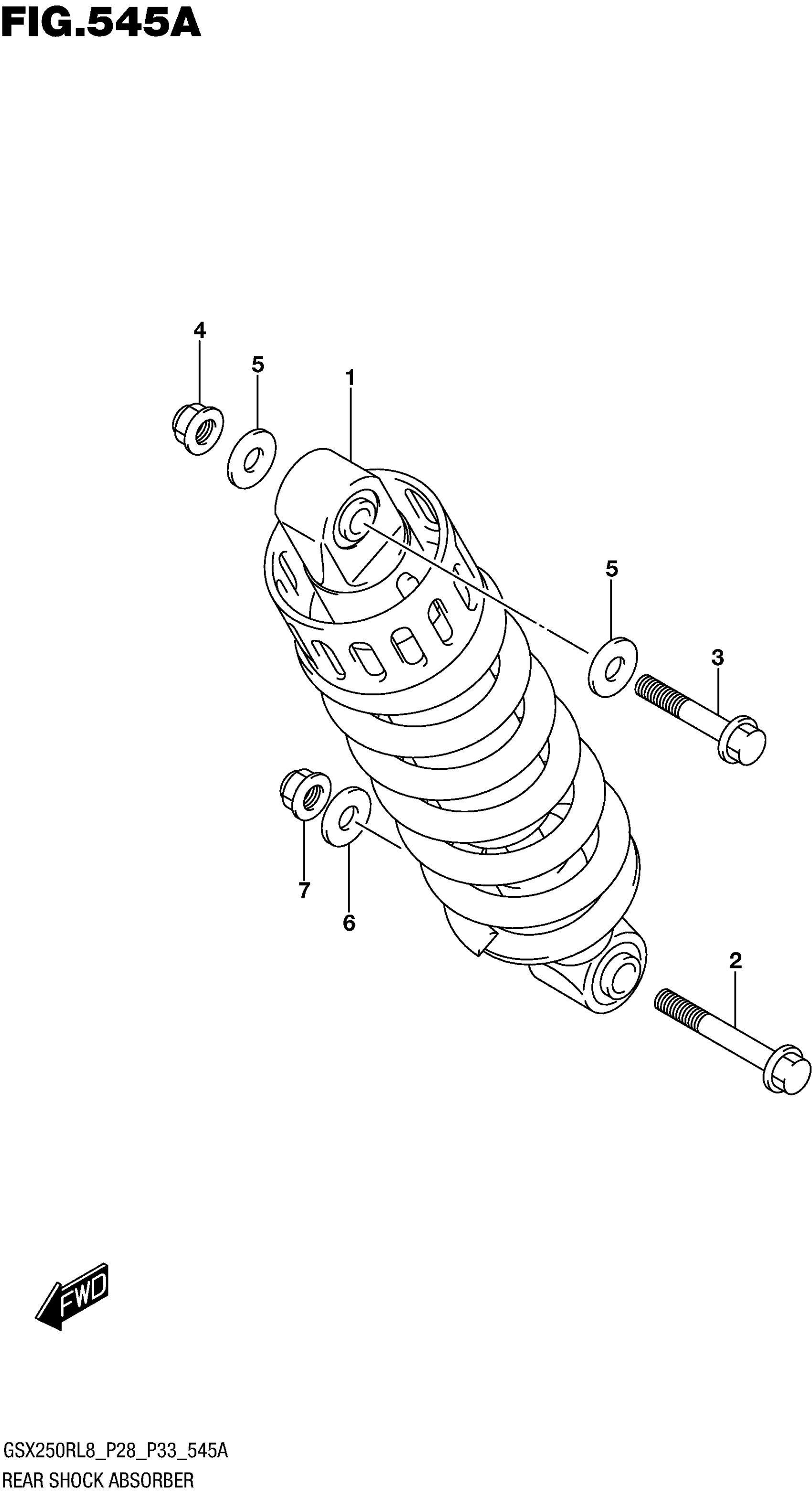

Suzuki GSX250RL8 (2018) REAR SHOCK ABSORBER Diagram

#

Description

Price

1

ABSORBER ASSY, REAR SHOCK

62100-20K10-28W

$892.83

1

(WHITE)

62100-20K10-28W

$892.83

2

BOLT,RR SHOCK ABS LOWER

62313-20K00

$6.75

3

BOLT (10X52)

09103-10213

$6.27

4

NUT

09159-10115

$3.21

5

WASHER (10.5X24X1)

09160-10020

$1.86

6

WASHER,RR SHOCK ABSORBER

62314-20K00

$2.90

7

NUT

08319-3112A

$3.38
