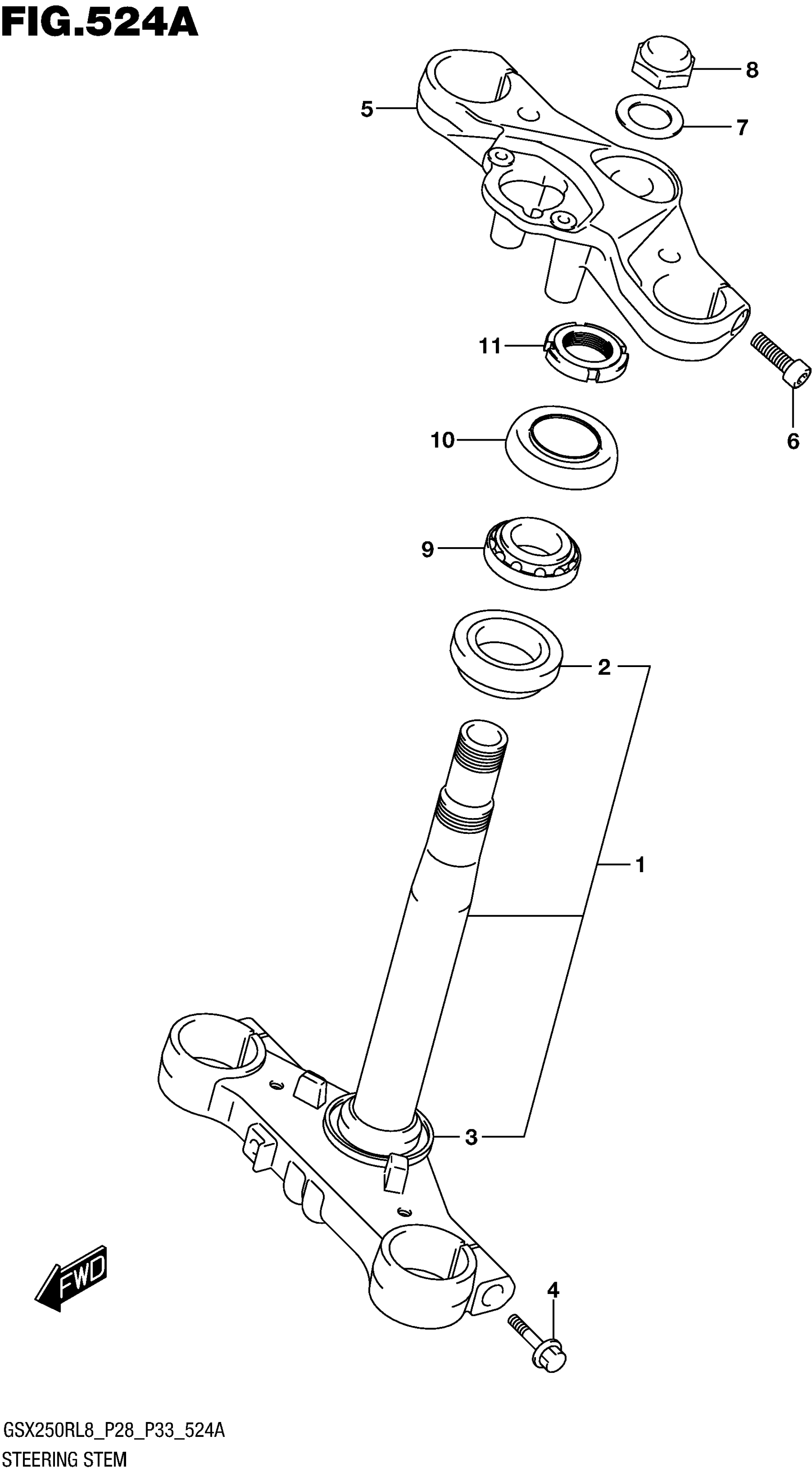

Suzuki GSX250RL8 (2018) STEERING STEM Diagram

#

Description
Price

1

BRACKET, UNDER

51410-20K00

$414.20

2

.BEARING

51610-48H00

$63.78

3

.SEAL, STEERING LOWER

51644-48H00

$2.03

4

BOLT,BRACKET UNDER

51451-48H00

Unavailable

5

BRACKET,UPPER

51311-20K00

$814.00

6

BOLT,BRACKET UPR

51166-48H10

$29.80

7

WASHER

51172-48H00

$10.42

8

NUT,CAP

51353-48H00

$36.93

9

BEARING (25X47X15)

09267-25L01

$65.42

10

SEAL, STEERING UPPER DUST

51643-49002

$13.92

11

NUT,STEERING STEM

51631-48H00

$6.55
