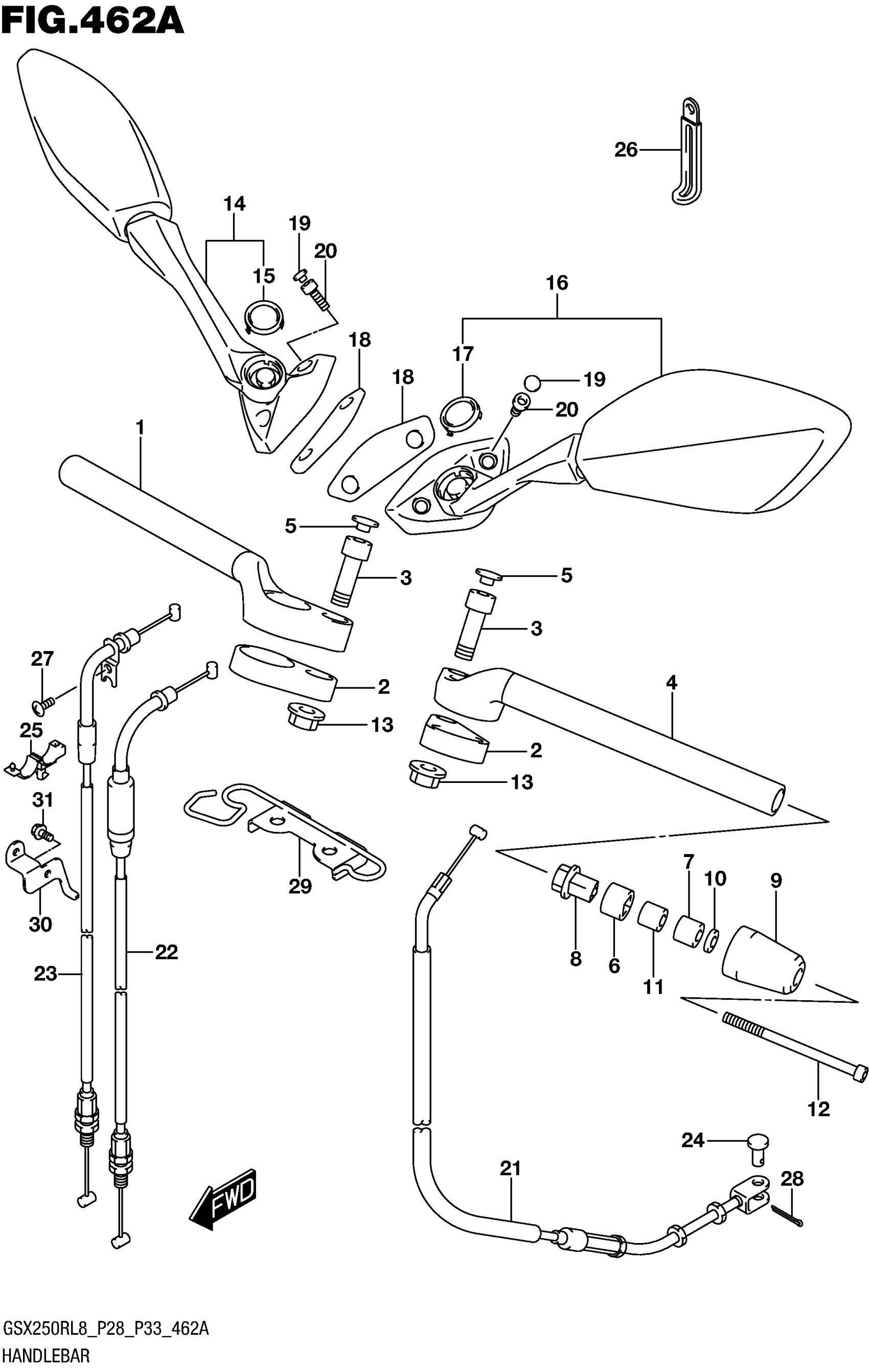

Suzuki GSX250RL8 (2018) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR,R

56110-20K00

$131.70

2

SPACER,HANDLEBAR

56115-20K00

$23.27

3

BOLT,HANDLEBAR

56123-20K00

$4.77

4

HANDLEBAR,L

56150-20K00

$136.17

5

CAP,HANDLEBAR BOLT

56246-20K00

$3.48

6

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.44

7

.EXPANDER,HANDLE BALANCER

56272-42F00

$6.15

8

NUT, HANDLE BALANCER

56273-10G10

$7.92

9

BALANCER,HANDLEBAR

56278-48H10

$5.70

10

WASHER (6.5X16X4)

09160-06131

$2.53

11

.SPACER (6.5X16X15)

09180-06161

$7.10

12

BOLT

07130-0695B

$3.98

13

NUT

08319-3110A

$2.73

14

MIRROR ASSY,REAR VIEW,R

56500-20K20

$136.57

15

.CAP

56517-20K20

$5.38

16

MIRROR ASSY,REAR VIEW,L

56600-20K20

$136.57

17

.CAP

56517-20K20

$5.38

18

CUSHION,REAR VIEW MIR

94576-20K00

$3.05

19

CAP (OD:10)

09250-05009

$2.10

20

BOLT

07130-0616B

$2.38

21

CABLE ASSY,CLUTCH This part replaces 58200-20K00.

58200-20K01

$48.20

22

CABLE ASSY,THTT This part replaces 58300-20K01.

58300-20K02

$39.83

23

CABLE ASSY,THRO This part replaces 58300-20K11.

58300-20K12

$36.40

24

PIN

09200-06071

$2.07

25

CLAMP,THROTTLE CABLE

58623-20K00

$3.48

26

CLAMP (L:45)

09404-06429

$1.82

27

SCREW

02142-0510B

$1.77

28

COTTER PIN

04111-2015A

$1.22

29

GUIDE,HANDLE SW LEAD

37110-20K00

$8.05

30

BRACKET,THROTTLE CABLE GUIDE

58621-20K00

$5.38

31

BOLT

01550-0616A

$1.97
