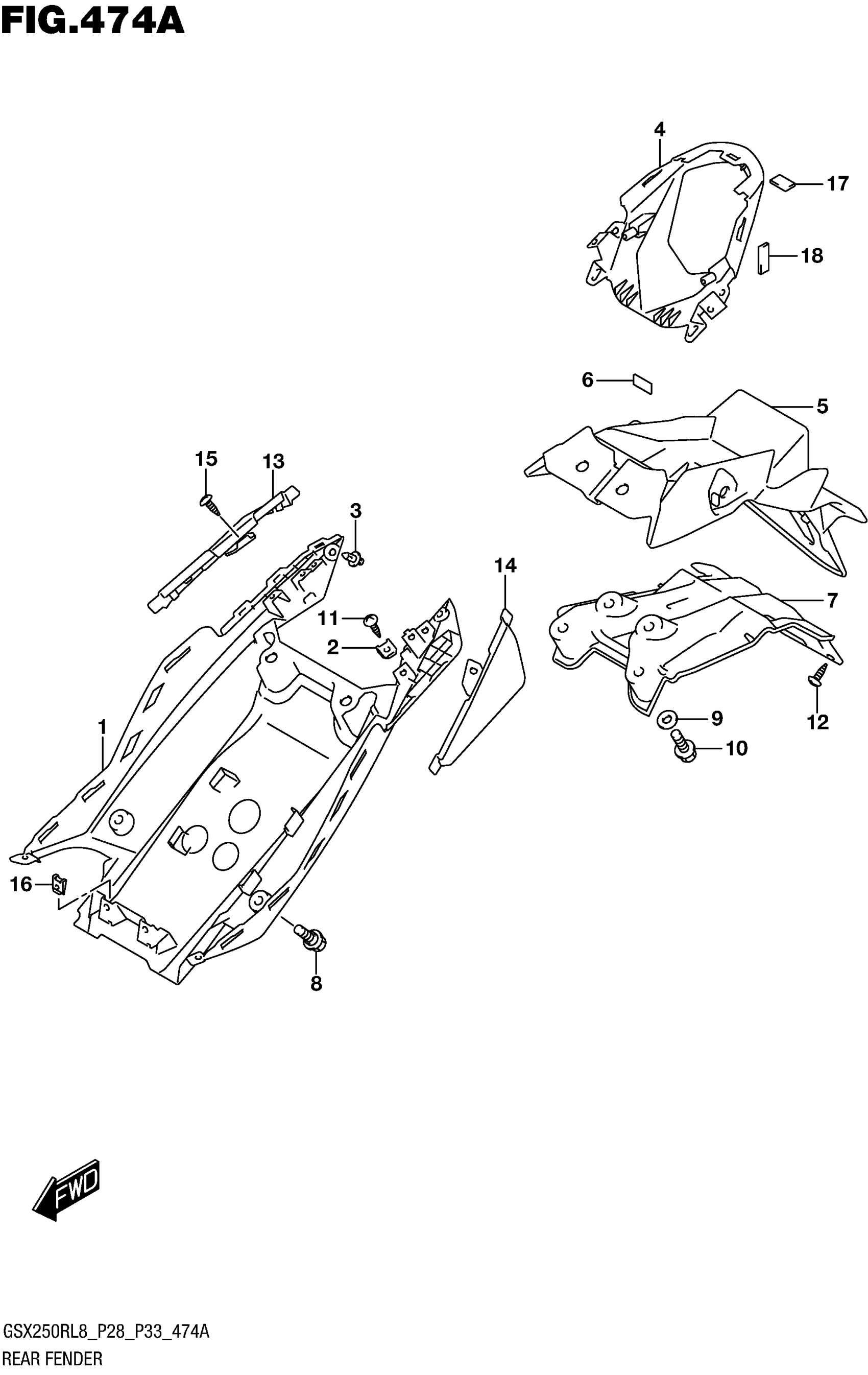

Suzuki GSX250RL8 (2018) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR FRONT

63111-20K00

$44.65

2

NUT, RR FENDER FRONT

47399-48H00

$2.68

3

CLIP, RR FENDER FRONT

48292-32GH0

$2.93

4

COVER,REAR FENDER FRONT

63112-20K00

$31.13

5

FENDER,REAR REAR

63113-20K20

$27.78

6

CUSHION

63114-20K00

$2.73

7

BRACKET,REAR FENDER REAR

63131-20K00

$50.38

8

BOLT (6X12)

09111-06107

$2.66

9

WASHER (6.5X20X1.2)

09160-06152

$2.57

10

BOLT

01550-0616B

$2.53

11

SCREW

03541-0516A

$1.37

12

SCREW

03541-0516B

$1.77

13

COVER,REAR FENDER SIDE,R

47124-20K00

$20.37

14

COVER,REAR FENDER SIDE,L

47224-20K00

$20.00

15

SCREW

03541-0516A

$1.37

16

NUT, REAR FENDER FRONT

47399-48H00

$2.68

17

CUSHION,RR FENDER FR NO.1

63116-20K00

$2.73

18

CUSHION,RR FENDER FR NO.2

63117-20K00

$2.73
