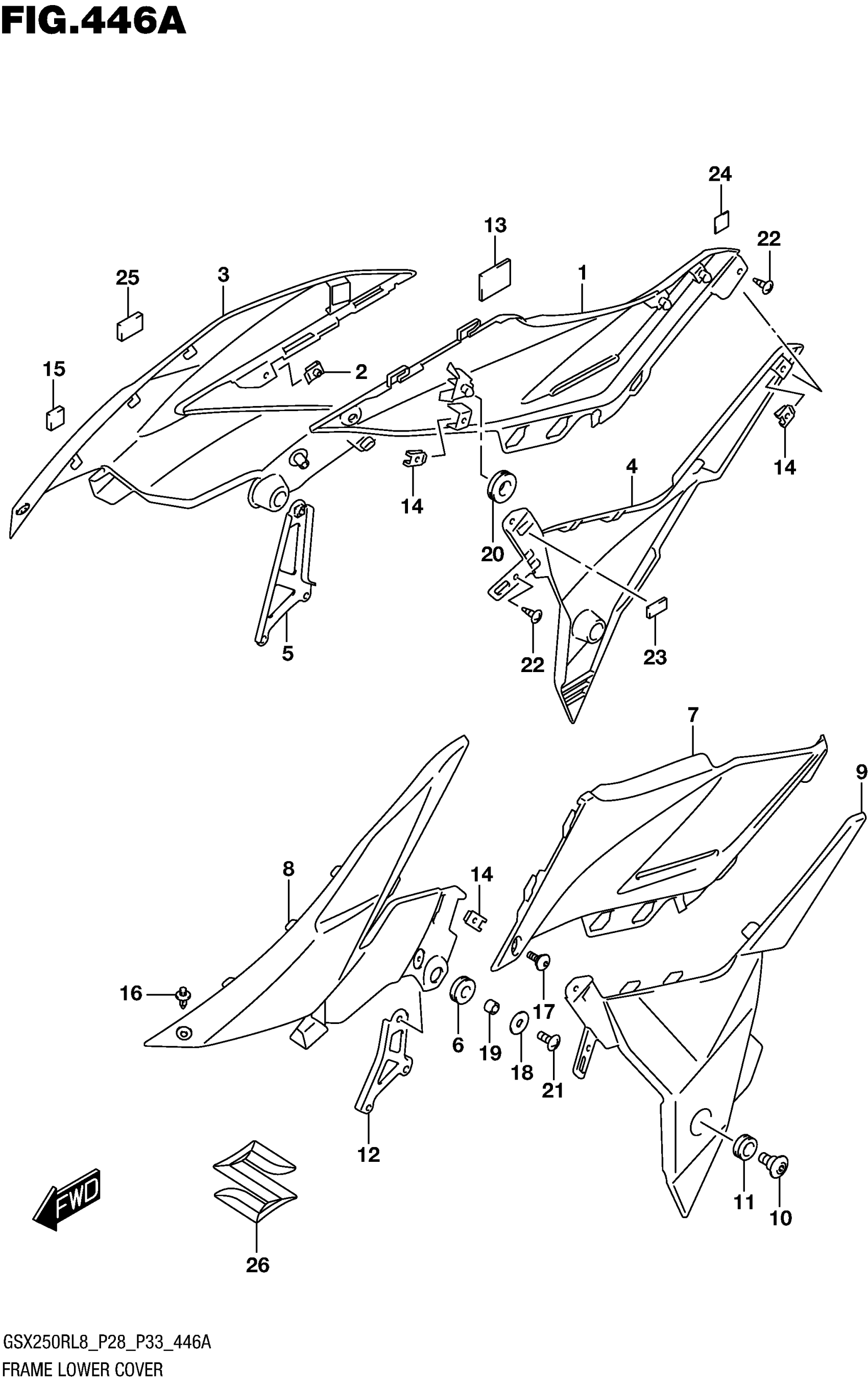

Find the part on the Frame Lower Cover diagram for your 2018 Suzuki GSX250RL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki GSX250RL8 Frame Lower Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

COVER, FRAME SIDE RH (WHITE)

47121-20K00-QHW

1
Out of stock

1-2

COVER, FRAME SIDE RH (BLACK)

47121-20K00-YAY

1
Out of stock

2

NUT, FRAME COVER SIDE

35155-48H00

2
Out of stock

3

COVER SET,FRM SIDE FR,R This part replaces 47120-20K00.

47100-20K01

1
Out of stock

4

COVER,FRAME SIDE LOWER,R

47123-20K00

1
Out of stock

5

BRACKET,FRAME COVER,R

47130-20K00

1
Out of stock

6

CUSHION,FRAME COVER This part replaces 47161-48H00.

47161-48H10

2
Out of stock

7-1

COVER, FRAME SIDE LH (WHITE)

47221-20K00-QHW

1
Out of stock

7-2

COVER, FRAME SIDE LH (BLACK)

47221-20K00-YAY

1
Out of stock

8

COVER SET,FRM SIDE FR,L This part replaces 47220-20K00.

47200-20K01

1
Out of stock

9

COVER,FRAME SIDE LOWER,L

47223-20K00

1
Out of stock

10

BOLT This part replaces 47225-20K00.

47225-20K01

2
Out of stock

11

CUSHION,FRAME COVER LOWER

47226-20K00

2
Out of stock

12

BRACKET,FRAME COVER,L

47230-20K00

1
Out of stock

13

FASTENER,FRAME COVER This part replaces 47351-20K00.

47351-20K01

2
Out of stock

14

NUT, FRAME COVER LOWER

47399-48H00

6
Out of stock

15

CUSHION, FRAME SIDE FRONT

47814-20K00

2
Out of stock

16

CLIP, COVER SIDE FRONT

48292-32GH0

2
Out of stock

17

SCREW (5X13)

09139-05064

2
Out of stock

18

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

19

SPACER (6.5X10X7)

09180-06283

2
Out of stock

20

CUSHION

09320-08018

2
Out of stock

21

SCREW

02142-0616A

2
Out of stock

22

SCREW

03541-0512A

6
Out of stock

23

CUSHION, FRAME COVER

47846-48H00

6
Out of stock

24

.CUSHION (15X15X1) This part replaces 94429-13E00.

94429-20K00

4
Out of stock

25

CUSHION, FRAME COVER SIDE FR

47125-20K00

2
Out of stock

26

EMBLEM,S

68111-29J00

2
Out of stock
