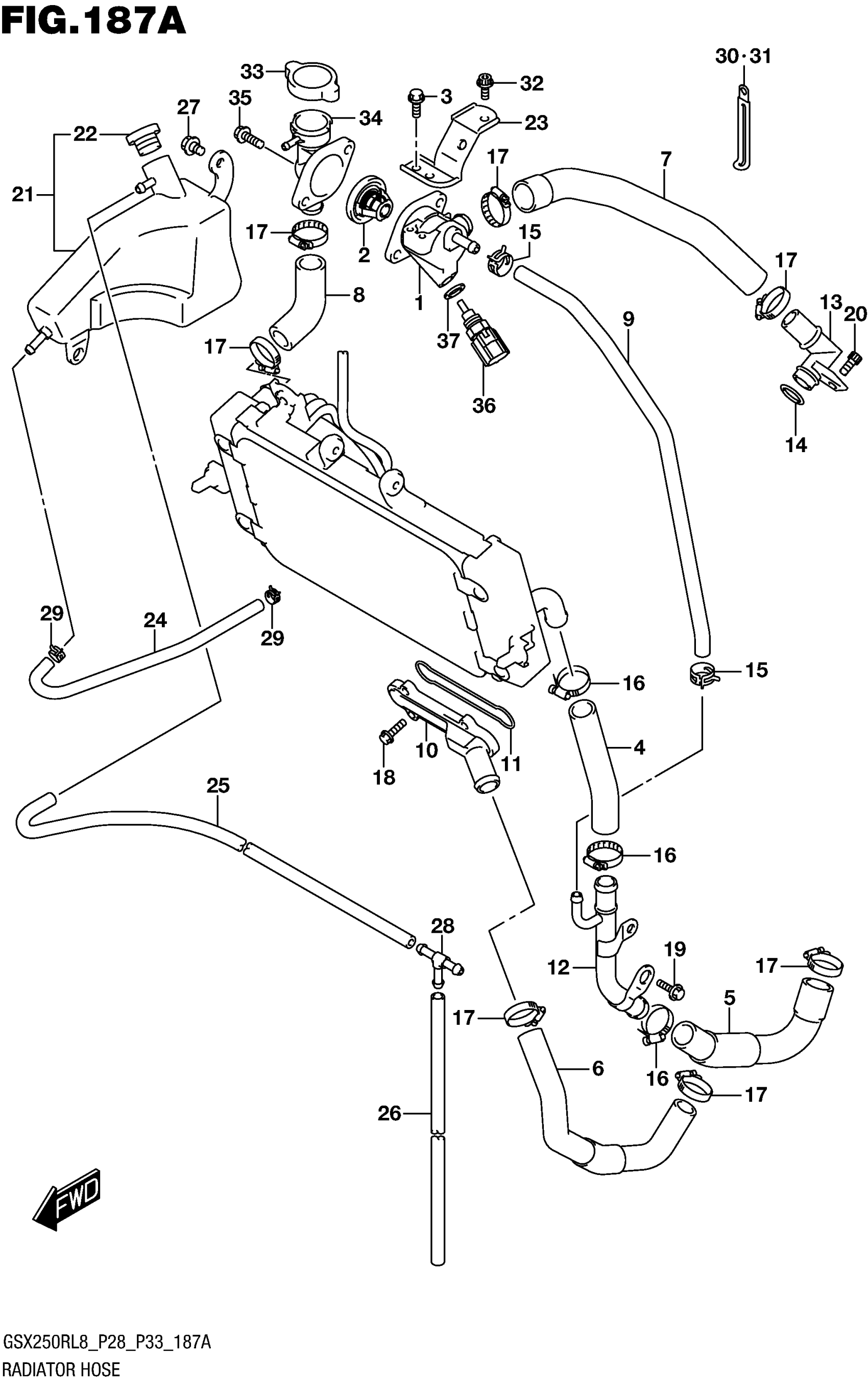

Suzuki GSX250RL8 (2018) RADIATOR HOSE Diagram

#

Description
Price

1

CONNECTOR,THERMOSTAT INLET

17662-48H10

$30.92

2

THERMOSTAT, WATER

17670-48H10

$42.40

3

BOLT

01550-0616A

$1.97

4

HOSE,RADIATOR OUTLET

17851-48H00

$8.95

5

HOSE,WATER PUMP INLET

17852-48H00

$12.53

6

HOSE, WATER PUMP OUTLET

17853-48H10

$25.68

7

HOSE,THERMOSTAT CONNECTOR

17855-48H00

$15.80

8

HOSE,RADIATOR INLET

17856-48H20

$7.98

9

HOSE,WATER BYPASS

17857-48H10

$17.47

10

CONNECTOR,CYLINDER WATER INLE

17861-48H00

Unavailable

11

O-RING

17863-48H00

Unavailable

12

PIPE,WATER PUMP

17870-48H10

$31.43

13-1

PIPE,CYL HEAD OUTLET

17880-48H00

Unavailable

13-2

PIPE,CYL HEAD OUTLET

17880-48H10

$19.70

14

O-RING (D:3.2,ID:17.8)

09280-18011

$2.07

15

CLIP

09401-12L02

$2.95

16

CLAMP

09402-27L01

$9.55

17

CLAMP

09402-32L01

$9.82

18

BOLT

01547-0620A

$2.01

19

BOLT

01550-0616A

$1.97

20

BOLT

07130-0612A

$2.50

21

TANK ASSY,RESERVOIR

17910-20K00

$47.12

22

.CAP, RESERVOIR TANK

17932-12C00

$4.09

23

BRACKET,RESERVOIR TANK

17920-48H00

Unavailable

24

HOSE, RESERVOIR TANK INLET | CUT AS REQUIRED

17981-19F00

$16.58

25

HOSE, RESERVOIR TANK OVER FLO

17981-48H00

$9.80

26

HOSE,FUEL TANK WATER DRAIN

17985-48H10

Unavailable

27

BOLT (6X12)

09111-06085

$4.16

28

3 WAY, FUEL TANK WATER DRAIN

44438-48H10

Unavailable

29

CLIP

09401-08L01

$2.25

30

CLAMP This part replaces 09404-06206.

09404-06039

$1.73

31

CLAMP (L:80)

09404-06208

Unavailable

32

BOLT

07120-0612A

$2.50

33

CAP, RADIATOR (1.1)

17730-48H00

$19.05

34

CONDUCTION,RADIATOR

17791-48H10

$17.47

35

BOLT

01550-0620A

$1.97

36

SENSOR, WATER TEMP

13650-49X00

$82.56

37

GASKET,TEMP SENSOR (12X17X1)

13651-48H00

$4.22
