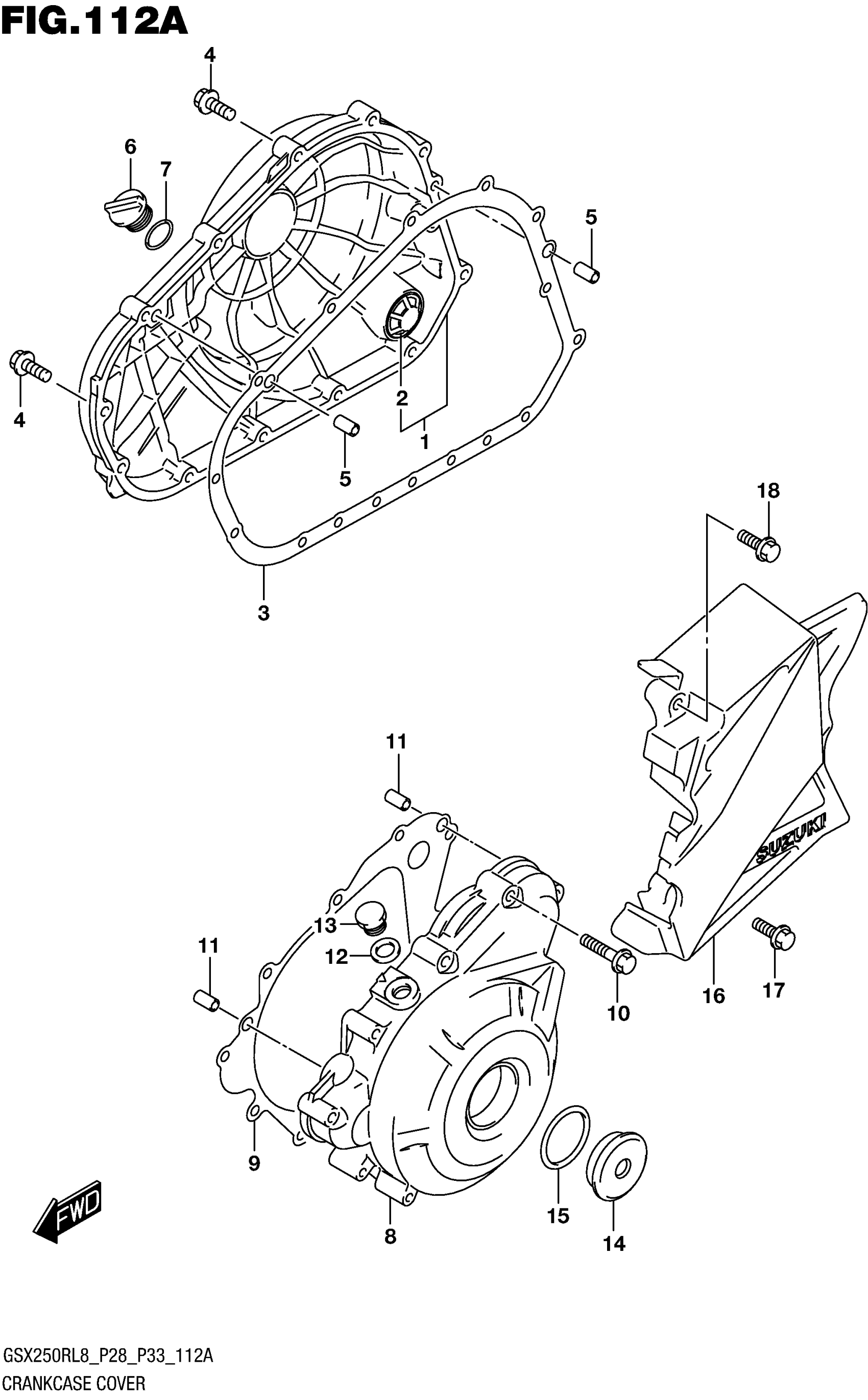

Suzuki GSX250RL8 (2018) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11340-20K00

$126.60

2

.LENS, OIL LEVEL CHECK

11971-48H00

$6.19

3

GASKET, CLUTCH COVER

11482-48H00

$42.03

4

BOLT

01547-0630A

$2.38

5

PIN

04211-09149

$1.70

6

PLUG,OIL FILLER

11972-48H00

$5.02

7

O RING (D:3.1,ID:16.8)

09280-17003

$1.70

8

COVER,MAGNETO

11351-20K00

$128.60

9

GASKET, MAGNETO COVER

11483-48H00

$27.07

10

BOLT

01547-0635A

$2.38

11

PIN

04211-09149

$1.70

12

GASKET,TDC PLUG

11352-48H00

$2.95

13

PLUG (12X9)

09247-12104

$2.80

14

PLUG

09259-36030

$14.12

15

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.31

16

COVER,ENG SPROCKET

11360-20K00

Unavailable

17

BOLT

01547-0640A

$2.38

18

BOLT

01547-0630A

$2.38
