2018 Suzuki GSX250RL8 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2018 Suzuki GSX250RL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

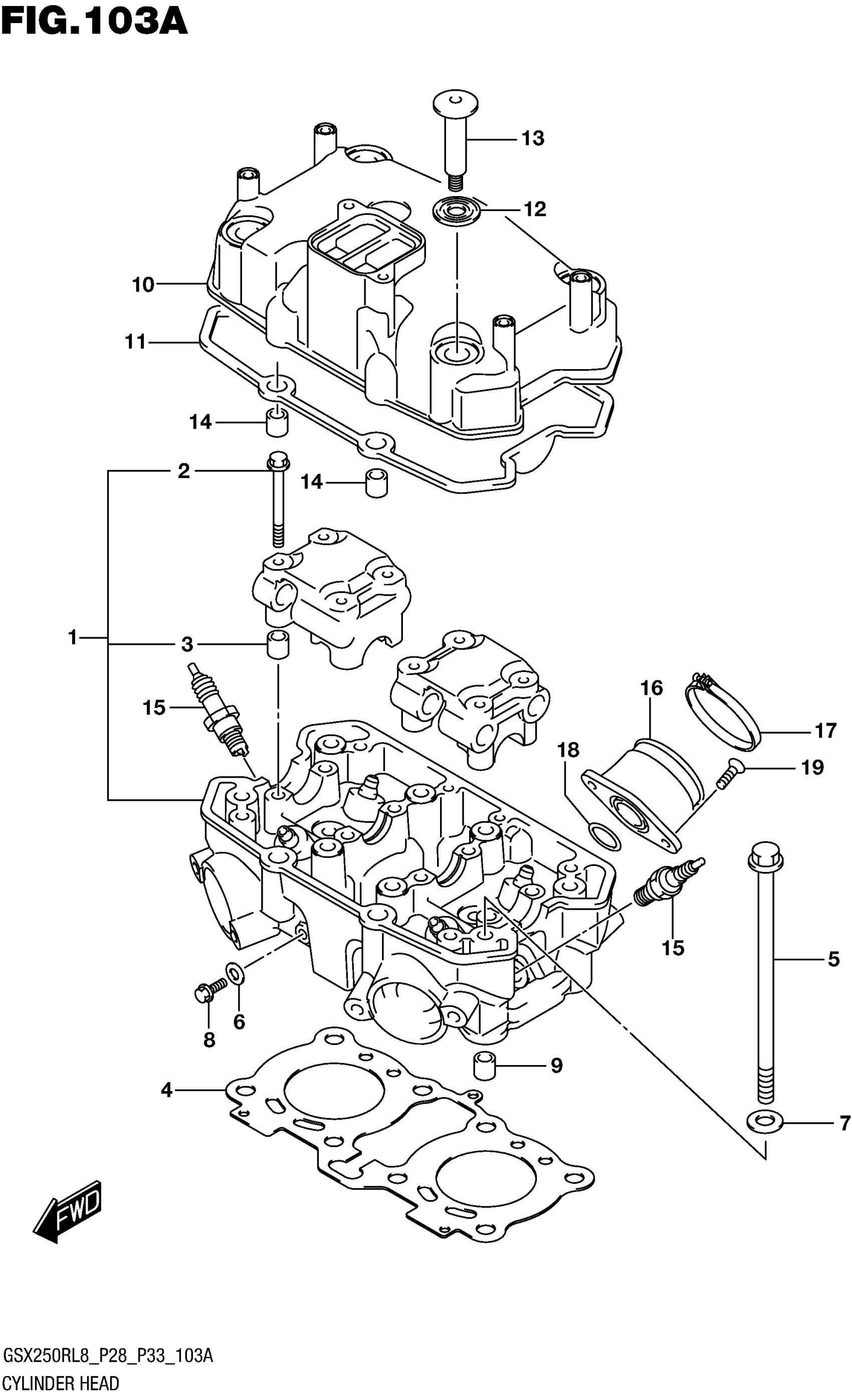

2018 Suzuki GSX250RL8 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-48H50

1

$557.00

In stock

2

.BOLT (6X60)

09103-06220

8
Out of stock

3

.PIN (8X11)

09206-08011

4
Out of stock

4

GASKET, CYLINDER HEAD

11141-48H00

1

$40.68

In stock

5

BOLT (8X165)

09103-08449

8

$8.35

In stock

6

GASKET (5.8X13X1.8)

09168-06L04

2

$0.90

In stock

7

GASKET (8.5X17X2.3)

09168-08032

8

$2.67

In stock

8

BOLT

01550-0612A

2
Out of stock

9

PIN

04211-11129

2
Out of stock

10

COVER, CYLINDER HEAD

11171-48H50

1

$116.58

In stock

11

1

$17.42

In stock

12

4

$2.77

In stock

13

BOLT (7X57)

09106-07022

4

$9.90

In stock

14

PIN

04211-11129

2
Out of stock

15-1

2

$10.35

In stock

15-2

2

$14.37

In stock

16

2

$12.90

In stock

17

CLAMP,INTAKE PIPE

13170-48H00

2

$5.98

In stock

18

O RING (D:2.3,ID:29.7)

09280-30L01

2
Out of stock

19

SCREW

02122-0616A

4

$1.52

In stock
