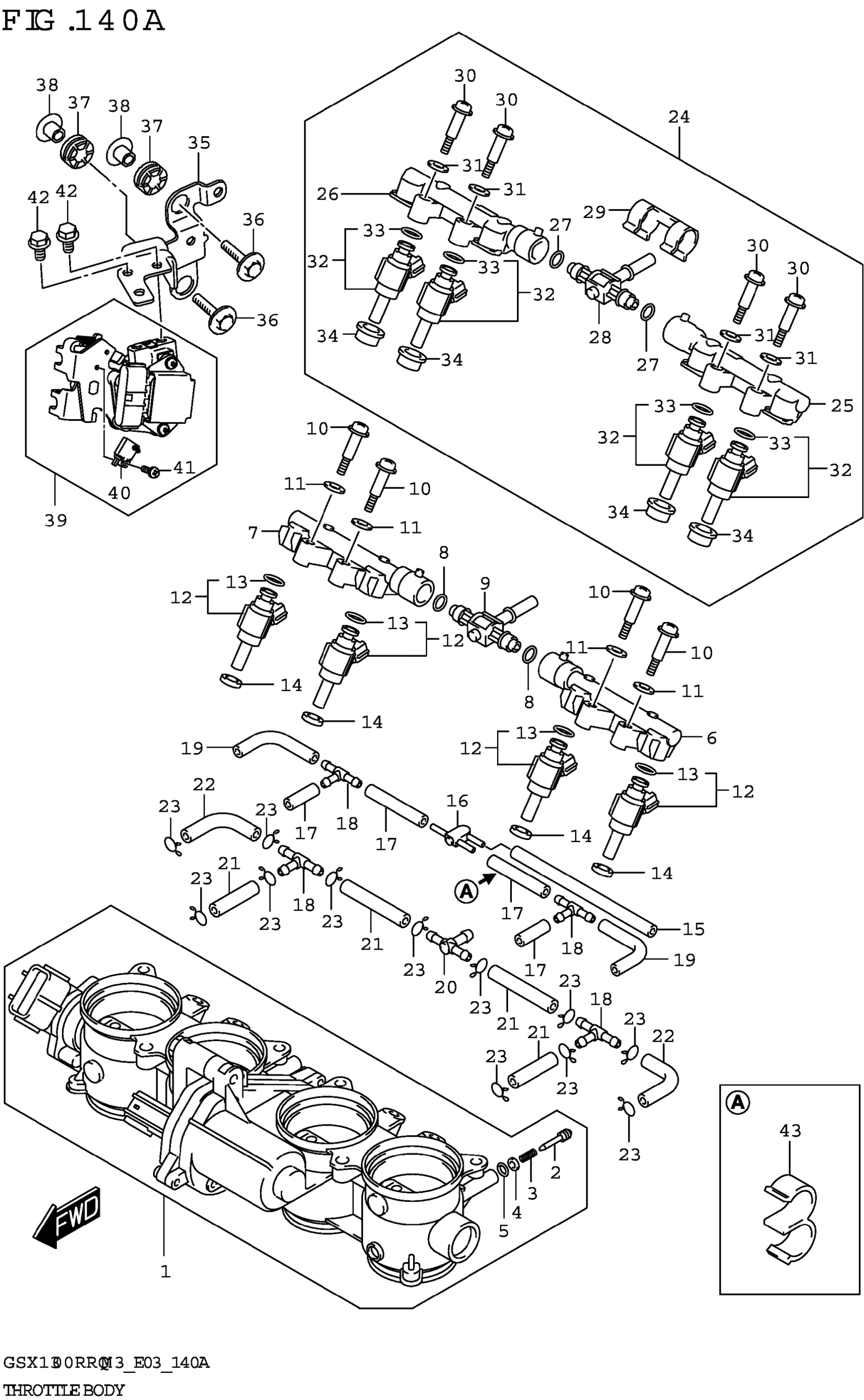

Suzuki GSX1300RRQM3 (2023) THROTTLE BODY (E33) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13405-10L00

$1,045.78

2

SCREW

13269-33E00

$10.45

3

SPRING,THROTTLE SCREW

13268-48700

$3.97

4

WASHER

13606-47A00

$3.70

5

O-RING

13295-29901

$3.97

6

DELIVERY PIPE

13471-10L00

$32.13

7

DELIVERY PIPE

13472-10L00

$32.13

8

O-RING

13374-32G00

$8.15

9

NIPPLE ASSY

13473-10L00

$39.82

10

SCREW

13601-29G00

$3.22

11

PACKING

13602-29G01

$2.52

12

INJECTOR ASSY

15710-14J00

$371.32

13

.O-RING

15717-58B00

$9.11

14

SEAL

15722-14J00

$10.70

15

HOSE

13683-01H01

$11.70

16

JOINT

13471-18H00

$11.83

17

HOSE (L:425)

13683-10F61

$19.30

18

3WAY,VACUUM HOSE

13685-02FA0

$7.95

19

HOSE (3.2X7.4X70)

13681-39F00-070

$3.37

20

NIPPLE

13685-04F10

$12.50

21

HOSE

13683-04K50

$14.23

22

HOSE (3.5X7.5X80)

13683-10L00

$3.25

23

CLIP This part replaces 13671-12C00.

09401-06101

$2.06

24

BODY ASSY,2ND INJECTOR

15900-10L00

$354.93

25

DELIVERY PIPE

13471-10L00

$32.13

26

DELIVERY PIPE

13472-10L00

$32.13

27

O-RING

13374-32G00

$8.15

28

NIPPLE ASSY

13473-10L00

$39.82

29

.CLIP

13474-17K00

$19.30

30

SCREW

13601-29G00

$3.22

31

PACKING

13602-29G01

$2.52

32

.INJECTOR ASSY

15710-17K10

$273.72

33

.O-RING

15717-58B00

$9.11

34

SEAL

15722-14J00

$10.70

35

BRACKET,ACCEL SENSOR

13571-10L00

$13.33

36

BOLT (6X30)

09116-06185

$2.70

37

CUSHION

09320-10055

$4.12

38

SPACER (6.5X10X11.6)

09180-06319

$4.92

39

BODY ASSY,ACCELERATOR

13500-10L00

$459.50

40

.SWITCH,CRS CONT CANCEL

13550-10L00

$39.88

41

.SCREW

13601-10L00

$2.55

42

BOLT

01550-0612A

$1.97

43

CLIP

09408-00200

$2.98
