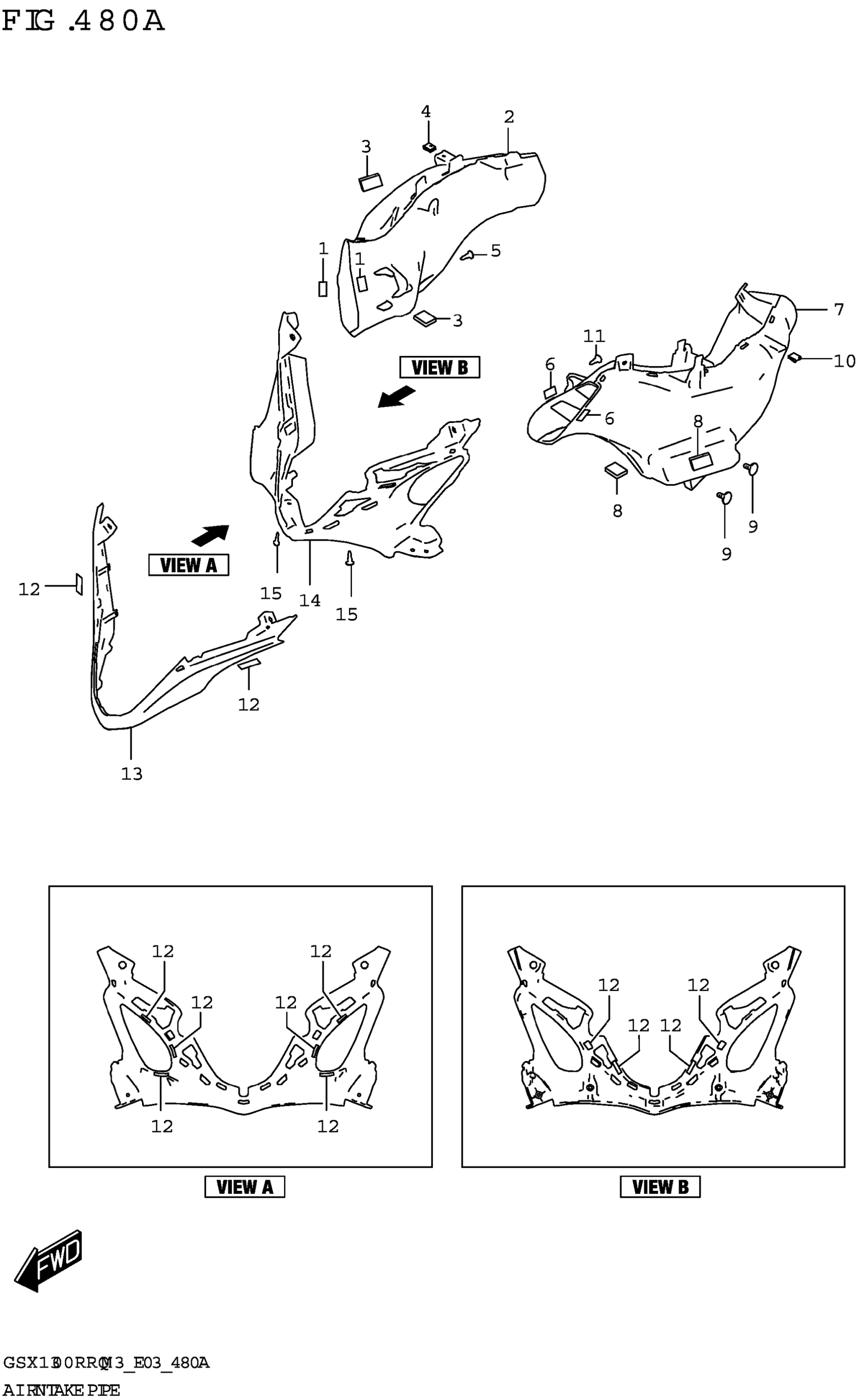

Suzuki GSX1300RRQM3 (2023) AIR INTAKE PIPE Diagram

#

Description
Price

1

PAD (8X20X2)

73415-70A00

$1.50

2

PIPE,AIR INTAKE,R

94420-10L00

$114.80

3

CUSHION (16X30X3.5)

94633-31J00

$2.43

4

NUT (M5)

09148-05047

$2.02

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

6

PAD (8X20X2)

73415-70A00

$1.50

7

PIPE,AIR INTAKE,L

94430-10L00

$114.80

8

CUSHION (16X30X3.5)

94633-31J00

$2.43

9

SCREW (6X16)

09139-06158

$4.42

10

NUT (M5)

09148-05047

$2.02

11

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

12

CUSHION,INTAKE COVER

94644-31F00

$1.31

13-1

COVER,INTAKE CTR (BLUE) | BODY COLOR:JWN

94671-10L00-YKY

$141.50

13-2

COVER,INTAKE CTR (BLACK) | BODY COLOR:KGL

94671-10L00-YKV

$141.50

13-3

COVER,INTAKE CTR (RED) | BODY COLOR:CJH

94671-10L00-YYG

$147.55

14

COVER,INTAKE REAR

94681-10L00

$101.00

15

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80
