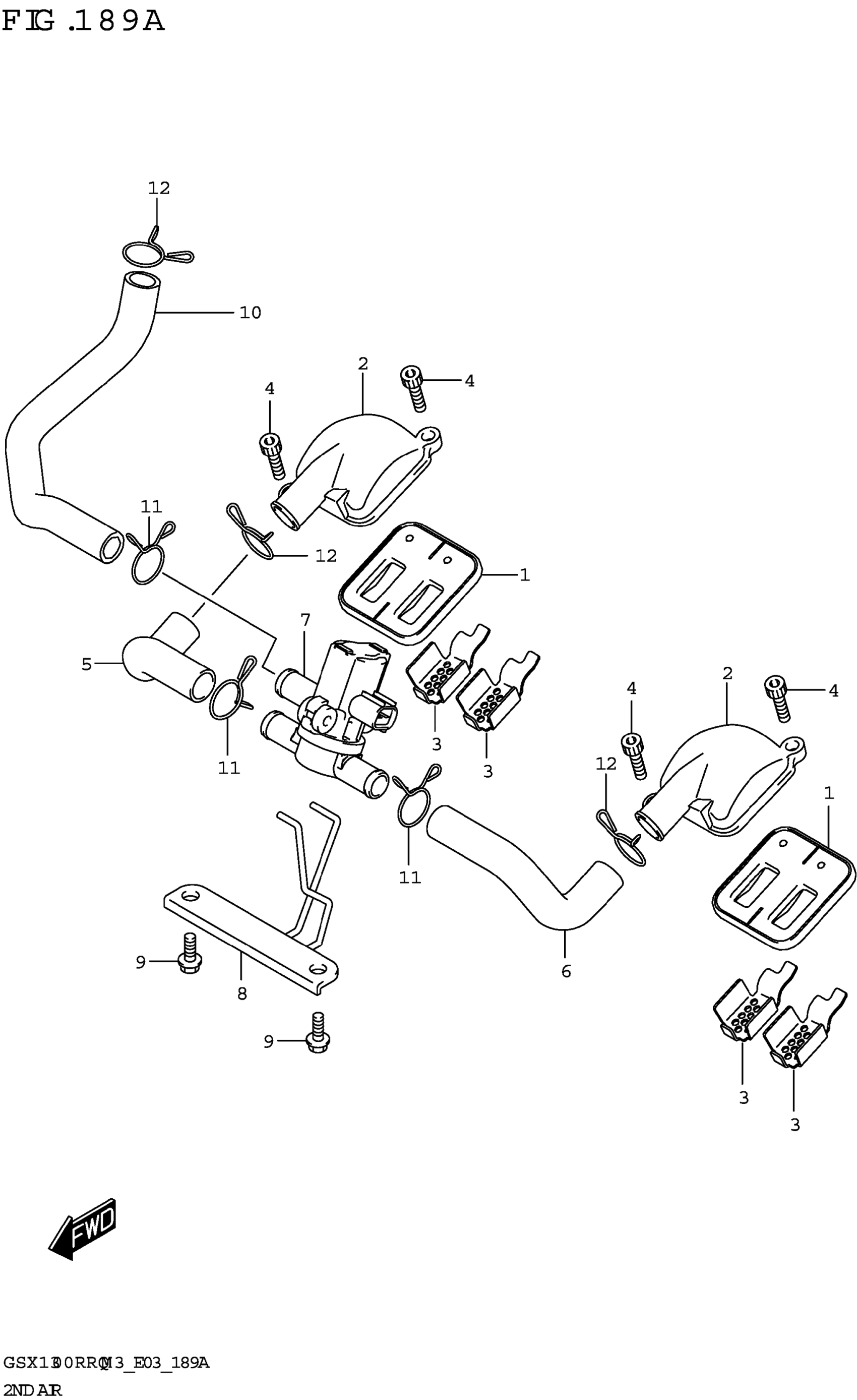

Suzuki GSX1300RRQM3 (2023) 2ND AIR Diagram

#

Description
Price

1

VALVE ASSY,2ND AIR REED

18450-35F70

$70.42

2

COVER,2ND AIR REED VALVE

18531-15H01

$34.98

3

PLATE,2ND AIR REED VALVE

18751-10L00

$10.55

4

BOLT

01547-0616A

$2.01

5

HOSE,2ND AIR VALVE,R

18461-15H00

$26.23

6

HOSE,2ND AIR VALVE,L

18471-15H00

$27.85

7

VALVE ASSY,AIR CUT

18510-29G31

$144.57

8

BRACKET,2ND AIR VALVE

18610-15H00

Unavailable

9

BOLT

01550-0616A

$1.97

10

HOSE,2ND AIR CLNR

18711-10L00

$15.15

11

CLIP

09401-18101

Unavailable

12

CLIP

09401-17201

$3.42
