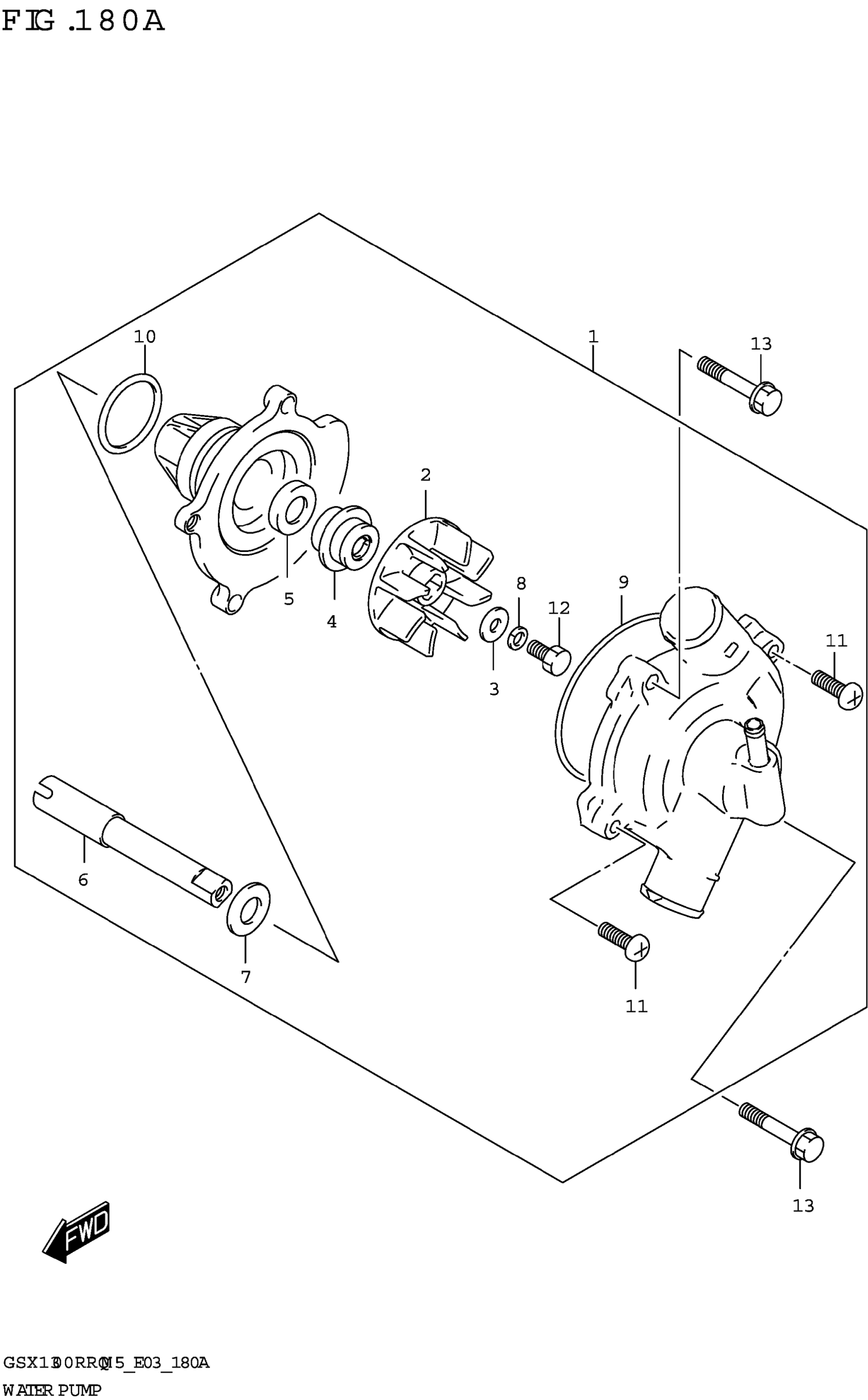

Suzuki GSX1300RRQKM5 (2025) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER

17400-10L00

$241.08

2

.IMPELLER

17491-17E01

$25.21

3

.GASKET (6X15X2.2)

09168-06025

$2.80

4

.SEAL,MECHANICAL

17470-02F11

$26.75

5

.SEAL,OIL (10X21X5)

17461-48G00

$12.45

6

.SHAFT

17511-24F10

$138.35

7

.WASHER

17432-07G00

$2.61

8

.WASHER

09164-06006

$2.66

9

.O-RING

17418-33401

$4.09

10

.O-RING

17435-33400

$13.99

11

.SCREW

02112-0620A

$1.45

12

.BOLT (6X13)

09100-06099

$2.08

13

BOLT

01547-0635A

$2.31
