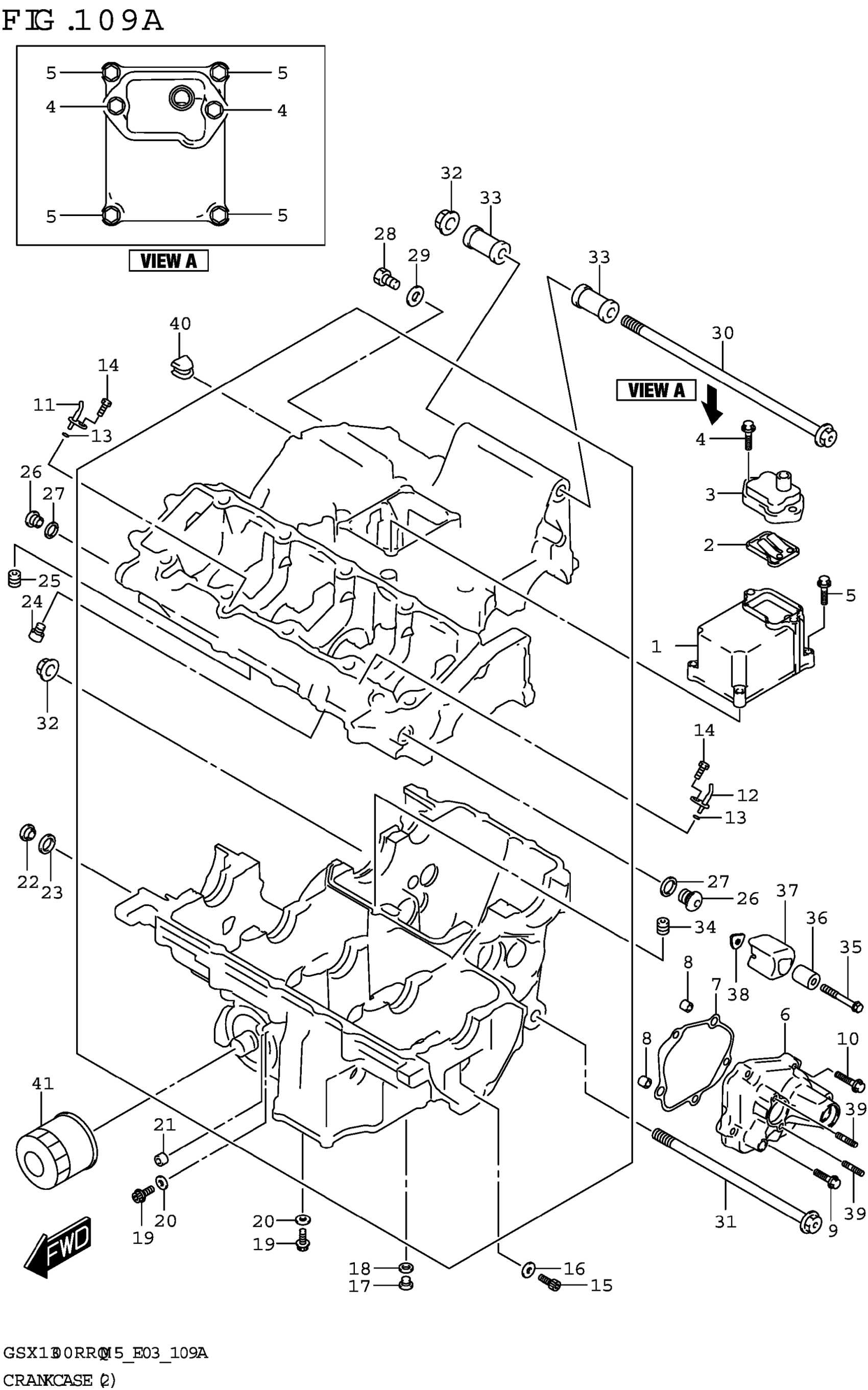

Suzuki GSX1300RRQKM5 (2025) CRANKCASE (2) Diagram

#

Description
Price

1

COVER,BREATHER

11331-15H00

$99.63

2

VALVE ASSY,BREATHER REED

13150-01H01

$78.90

3

COVER,BREATHER REED VALVE

11372-21H00

$21.70

4

BOLT

01547-0620A

$2.01

5

BOLT

01547-0630A

$2.31

6

COVER,GEAR SHIFT

11383-10L00

$114.80

7

.GASKET,GEAR SHIFT COVER

11485-24F00

$5.97

8

PIN (8.5X18X2.3)

04211-09149

$1.64

9

BOLT

01547-0625A

$2.01

10

BOLT

01547-0635A

$2.31

11

JET,PISTON COOLING

11390-34E00

$24.28

12

JET,PISTON COOLING

11390-34E10

$24.28

13

O-RING (D:1.2,ID:4)

09280-04004

$1.76

14

BOLT (6X12)

09106-06075

$2.50

15

BOLT

07130-0816B

$4.62

16

GASKET (8.2X14X1)

09168-08016

$1.64

17

PLUG (10X10)

09248-10010

$3.82

18

GASKET (10X14X3.6)

09168-10002

$1.96

19

BOLT

07120-0612A

$2.50

20

GASKET (5.8X13X1.2)

09168-06023

$2.01

21

JET,OIL PAN GALLERY

11532-46E00

$13.02

22

PLUG (16X8)

09248-16012

$4.19

23

GASKET (16X22X2)

09168-16002

$1.89

24

BOLT (6X10)

09103-06188

$3.17

25

JET,AIR (#100)

09493-20012

$21.17

26

PLUG (14X12)

09248-14011

$2.80

27

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

28

BOLT

07120-0612A

$2.50

29

GASKET (5.8X13X1.2)

09168-06023

$2.01

30

BOLT (12X320)

09103-12120

$36.20

31

BOLT (12X243)

09103-12119

$33.80

32

NUT

09159-12056

$6.65

33

SPACER,ENG MTG (L47)

11611-24F00

$30.20

34

JET,T/M OIL

09493-40004

$11.40

35

BOLT (L:45)

09103-06532

$2.27

36

SPACER

09180-06381

$7.60

37

PROTECTER,GEAR SHIFT COVER

11364-10L00

$35.75

38

PLATE,GEAR SHIFT COV PROTECTE

11365-10L00

$9.33

39

BOLT,STUD

09108-05007

$2.87

40

GROMMET,CRANKCASE UPPER

11312-10L00

$8.23

41

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$11.99
