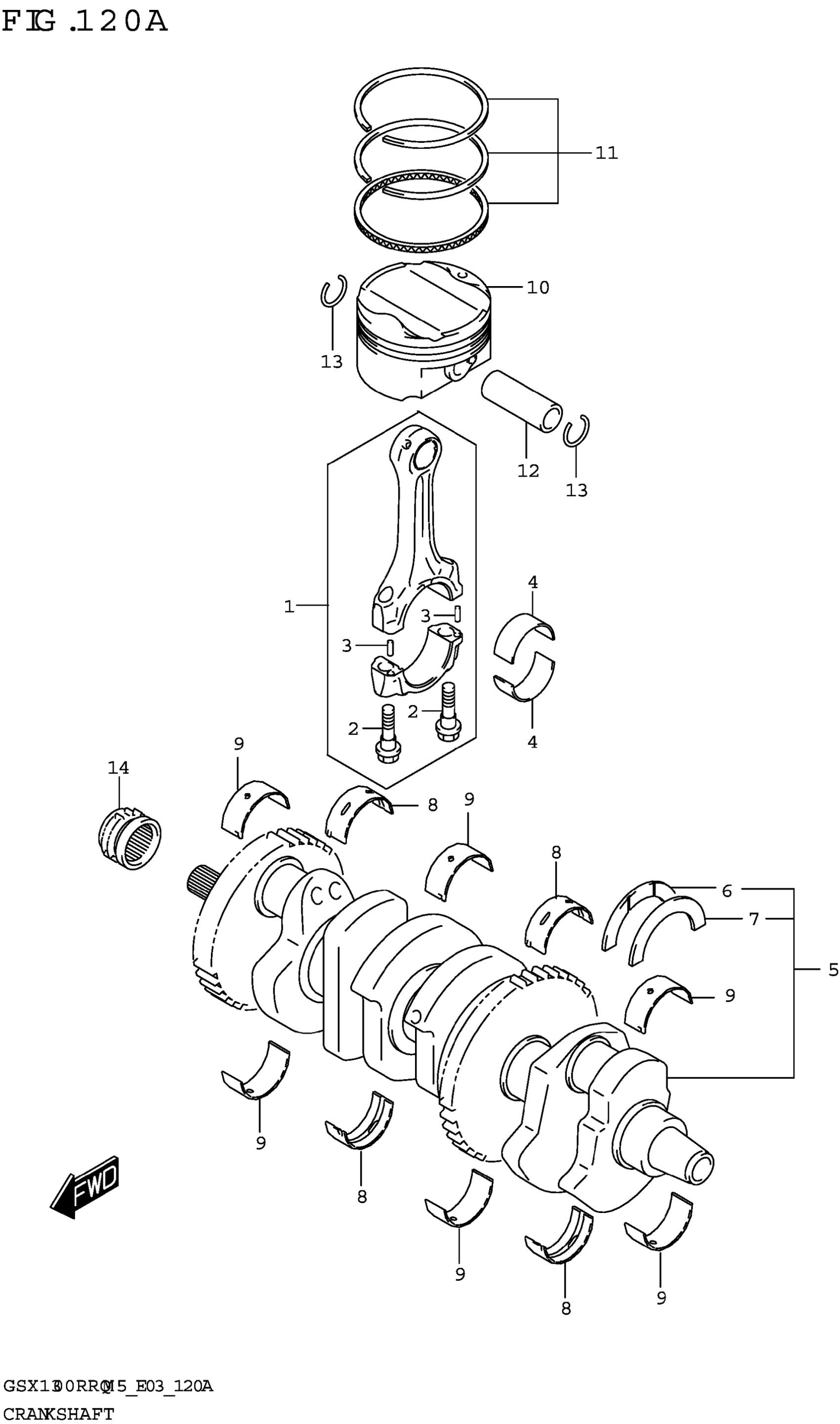

Suzuki GSX1300RRQKM5 (2025) CRANKSHAFT Diagram

#

Description
Price

1

CONNROD ASSY

12160-10L00

$147.72

2

.BOLT,CONNROD

12163-10L00

$6.60

3

PIN (4X13.8)

04221-04089

$1.10

4-1

BEARING,CRANK PIN (GREEN)

12164-10L00-0A0

$18.32

4-2

BEARING,CRANK PIN (BLACK)

12164-10L00-0B0

$13.00

4-3

BEARING,CRANK PIN (BROWN)

12164-10L00-0C0

$13.00

4-4

BEARING,CRANK PIN (YELLOW)

12164-10L00-0D0

$18.32

5

CRANKSHAFT SET

12000-10840

$1,619.28

6

.BEARING,CRANK THRUST (GREEN)

12228-24F00-0D0

$10.18

7-1

.BEARING,CRANK THRUST,L (RED)

12228-24F00-0A0

$14.45

7-2

.BEARING,CRANK THRUST,L (BLAC

12228-24F00-0B0

$10.18

7-3

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

$14.35

7-4

.BEARING,CRANK THRUST (GREEN)

12228-24F00-0D0

$10.18

7-5

.BEARING,CRANK THRUST,L (YELL

12228-24F00-0E0

$14.98

7-6

.BEARING,CRANK THRUST,L (WHIT

12228-24F00-0F0

$14.98

8-1

BEARING,CRANKSHAFT (GREEN)

12229-15H10-0A0

$12.55

8-2

BEARING,CRANKSHAFT (BLACK)

12229-15H10-0B0

$13.08

8-3

BEARING,CRANKSHAFT (BROWN)

12229-15H10-0C0

$12.71

8-4

BEARING,CRANKSHAFT (YELLOW)

12229-15H10-0D0

$12.71

8-5

BEARING,CRANKSHAFT (BLUE)

12229-15H10-0E0

$13.53

9-1

BEARING,CRANKSHAFT (GREEN)

12229-10L00-0A0

$12.07

9-2

BEARING,CRANKSHAFT (BLACK)

12229-10L00-0B0

$12.07

9-3

BEARING,CRANKSHAFT (BROWN)

12229-10L00-0C0

$12.07

9-4

BEARING,CRANKSHAFT (YELLOW)

12229-10L00-0D0

$12.07

9-5

BEARING,CRANKSHAFT (BLUE)

12229-10L00-0E0

$17.02

10

PISTON

12111-10L00-0F0

$186.78

11

RING SET,PISTON

12140-10L00

$98.27

12

PIN,PISTON

12151-10L00

$12.92

13

CIRCLIP (OD:20.5)

09381-18002

$1.45

14

SPROCKET,CAM CHAIN DRIVE

12731-24F10

$71.75
