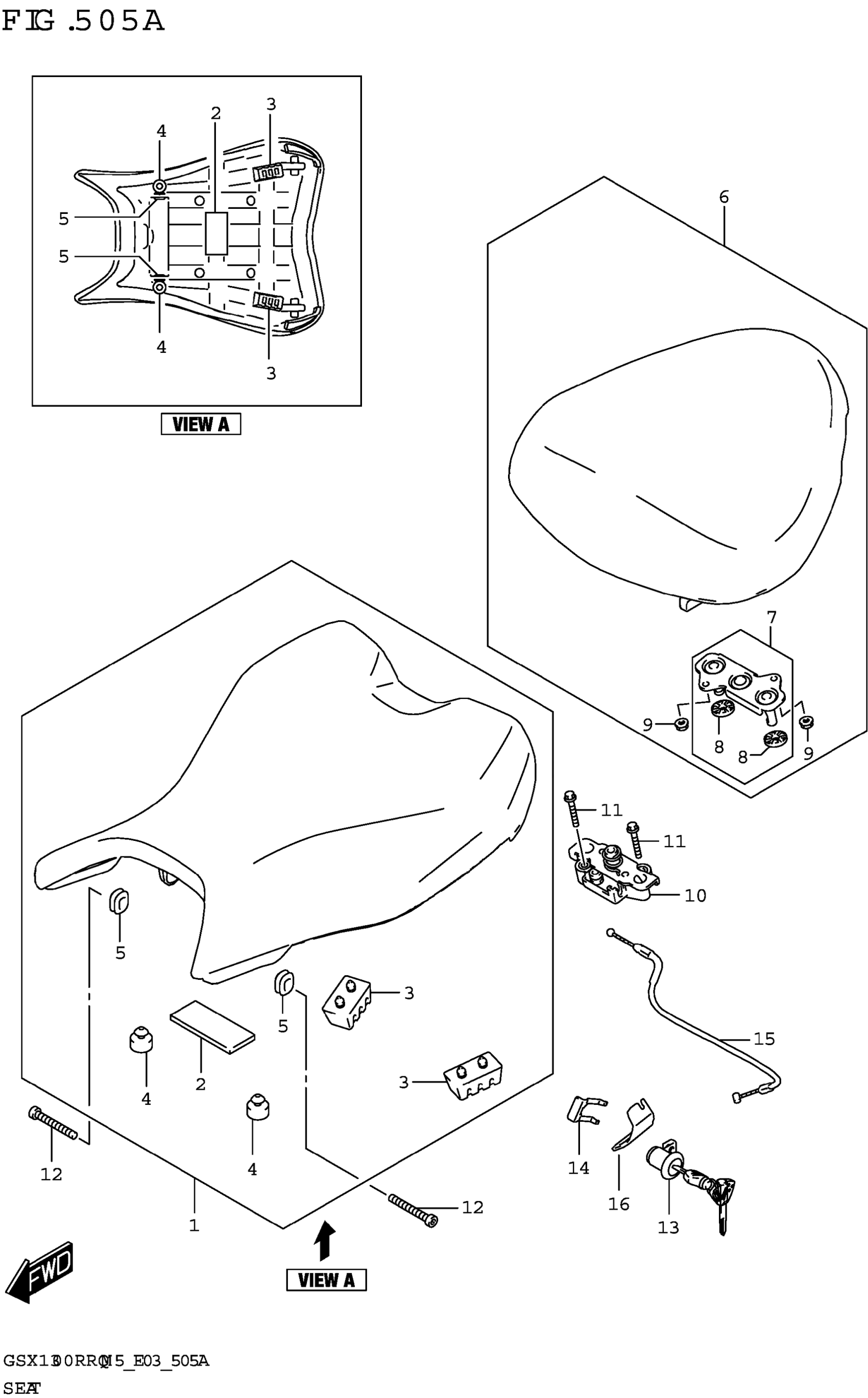

Suzuki GSX1300RRQKM5 (2025) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-10L02-QUZ

$220.77

2

.CUSHION

45117-15H01

$10.55

3

.CUSHION,SUPPORT (50X25X32)

45149-45330

$3.56

4

.CUSHION

09321-10011

$2.80

5

.CUSHION

45118-15H00

$8.77

6

SEAT ASSY,PILLION (BLACK)

45300-10L03-QUZ

$121.12

7

.STRIKER,SEAT LOCK

45290-10L00

$36.22

8

..CUSHION

45213-42F00

$6.32

9

NUT (6X12)

08316-1006A

$2.19

10

BRACKET,STRIKER SUPPORT

45220-15H00

$161.37

11

BOLT

01547-0630A

$2.31

12

BOLT,SEAT FR

45191-15H00

$6.94

13

LOCK SET,SEAT

95700-14810

$98.21

14

PLATE,SEAT LOCK ASSY

45289-11F00

$5.67

15

CABLE,SEAT LOCK

45280-26F00

$18.20

16

GUIDE,SEAT LOCK CABLE

45288-14F00

$4.91
