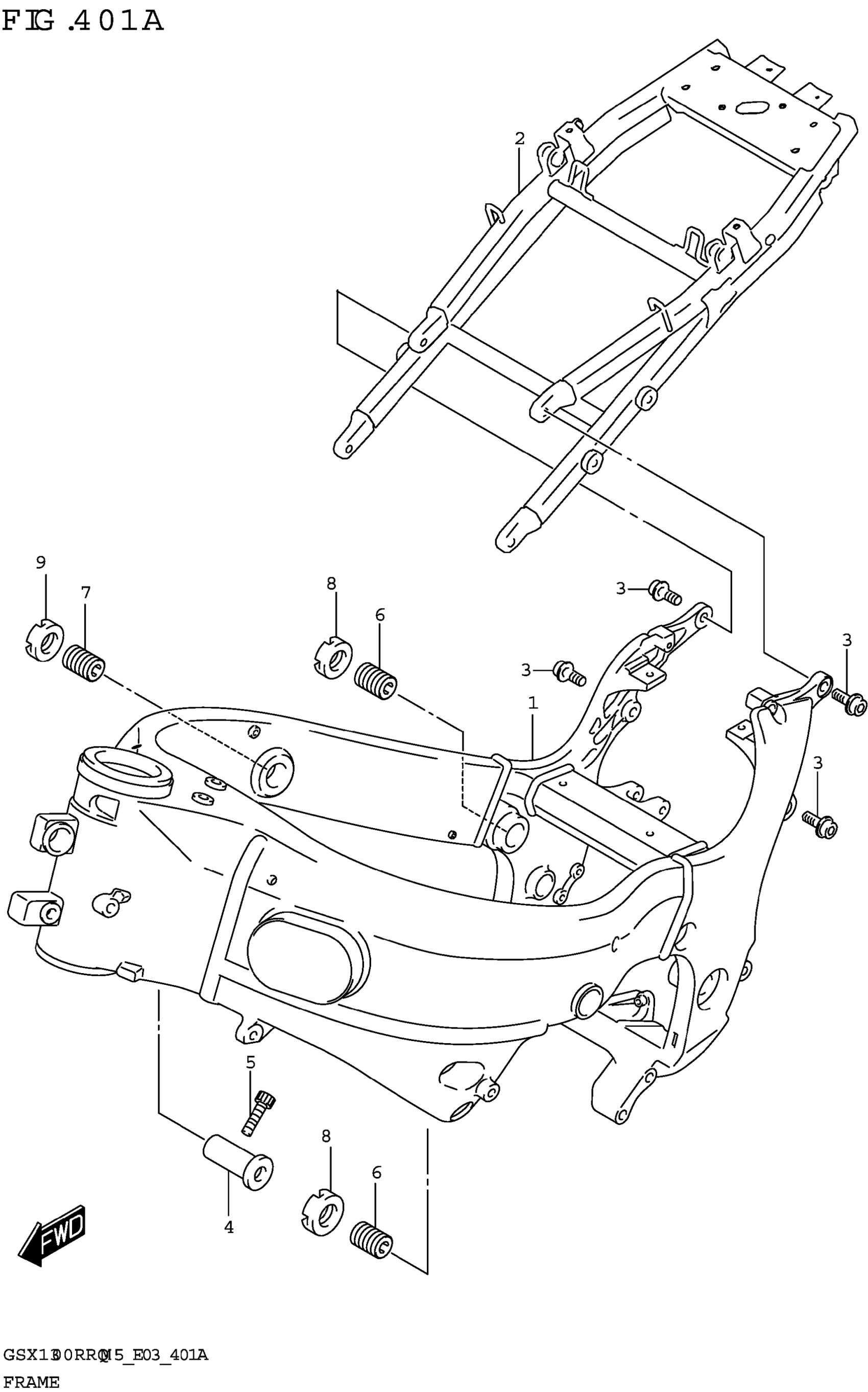

Suzuki GSX1300RRQKM5 (2025) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-15H21-YAP

Unavailable

2

RAIL,SEAT

41200-10L00

$598.03

3

BOLT

07120-1025A

$4.70

4

SPACER,ENGINE MTG

41911-33E10

$29.57

5

BOLT (8X30)

09106-08105

$4.12

6

BOLT,CRANK CASE ADJUST

41921-15H20

$61.72

7

BOLT,CRANK CASE ADJUST

41921-15H30

$46.58

8

NUT,CRANK CASE ADJUST

41922-19F12

$33.57

9

NUT,CRANK CASE ADJUST

41922-33E30

$24.80
