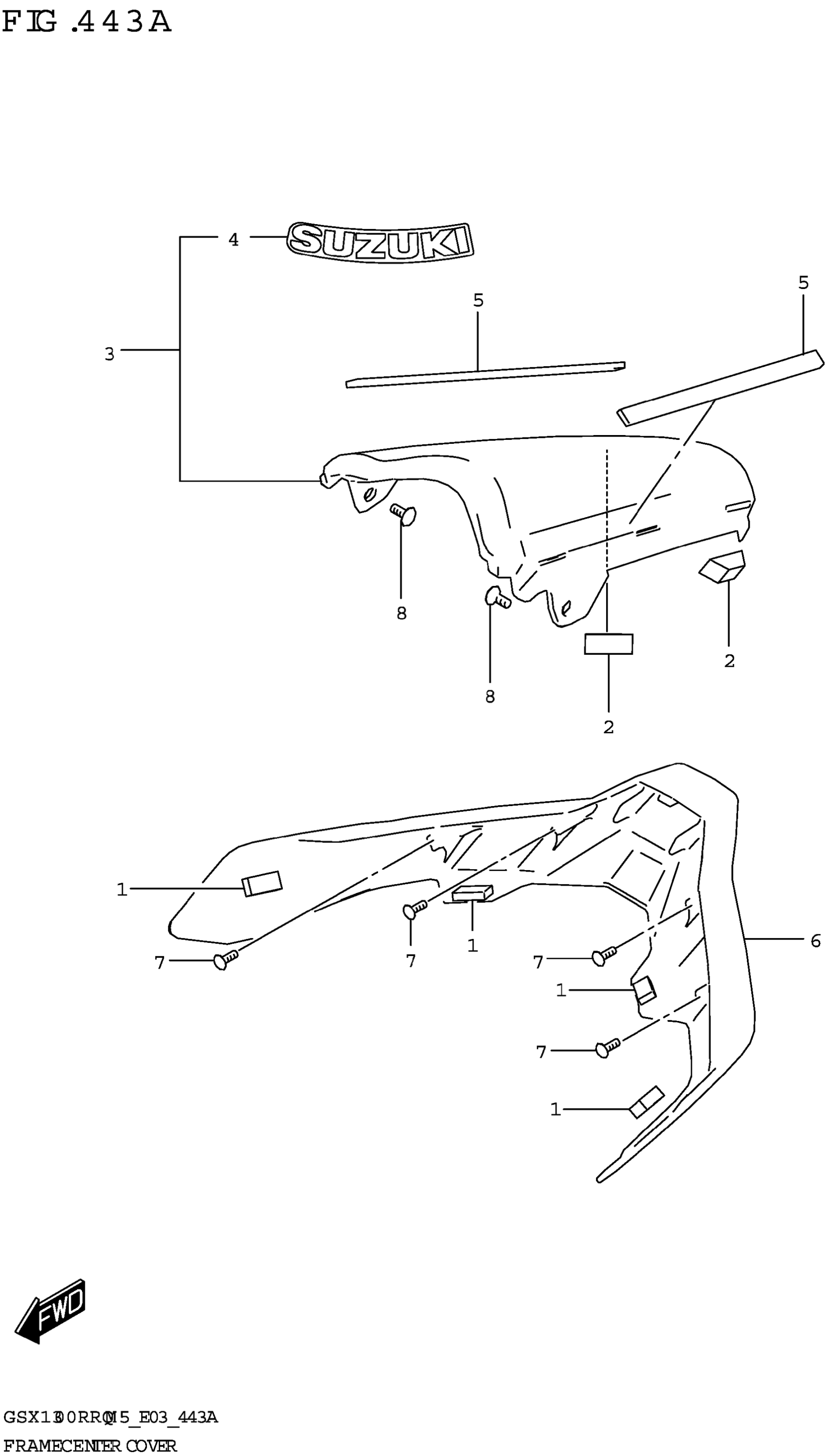

Suzuki GSX1300RRQKM5 (2025) FRAME CENTER COVER (GSX1300RRQ) Diagram

Description

Price

CUSHION,FRAME COVER UNDER

47113-10L00

$0.78

CUSHION,FRAME COVER CTR

47114-10L00

$3.08

3-1

COVER,FRAME CTR (SILVER) | BODY COLOR:ASU

47310-10L00-YMD

$106.52

3-2

COVER,FRAME CTR (BLACK) | BODY COLOR:BLG

47310-10L00-YVB

$106.52

3-3

COVER,FRAME CTR (GREEN) | BODY COLOR:C0T

47310-10L00-QVP

Unavailable

4-1

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:ASU

68641-19F01-YVB

$9.55

4-2

.EMBLEM,SUZUKI (GRAY) | BODY COLOR:BLG

68641-19F01-YLF

$9.07

4-3

.EMBLEM,SUZUKI (GREEN,BLACK) | BODY COLOR:C0T

68641-19F01-C0T

Unavailable

CUSHION,FRAME COVER CTR

47324-10L00

$1.48

6-1

COVER,FRAME UNDER (BLUE) | BODY COLOR:ASU

47511-10L00-YKY

$223.02

6-2

COVER,FRAME UNDER (SILVER) | BODY COLOR:BLG

47511-10L00-YMC

$215.37

6-3

COVER,FRAME UNDER (BLACK) | BODY COLOR:C0T

47511-10L00-YVB

$215.37

SCREW

03541-0412A

$1.37

SCREW

03541-0512A

$1.37
