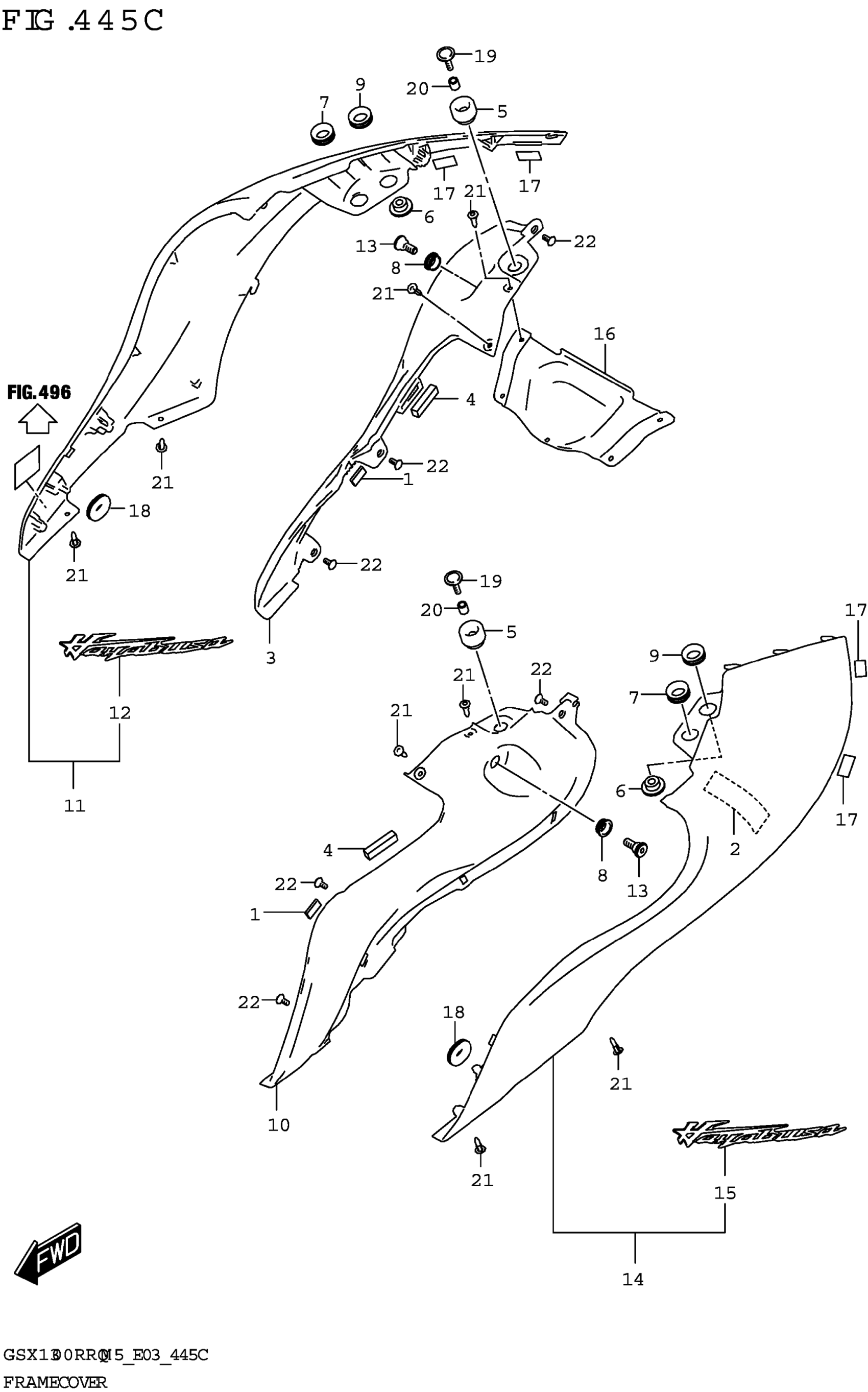

Suzuki GSX1300RRQKM5 (2025) FRAME COVER (GSX1300RRQK:(E03,E33)) Diagram

#

Description
Price

1

CUSHION,FRAME COVER NO.1

33652-22D01

$1.68

2

PROTECTOR (80X80X2) This part replaces 33652-34000.

33652-07D00

$5.17

3-1

COVER,FRAME,R (BLACK) | BODY COLOR:JRU,YVB

47111-10L00-YVB

$137.72

3-2

COVER,FRAME,R (SILVER) | BODY COLOR:DKX,DMX,DNX

47111-10L00-YMC

$137.72

3-3

COVER,FRAME,R (BLUE) | BODY COLOR:DQX,C9X,DSX

47111-10L00-YKY

$105.42

4

CUSHION,FRAME COVER NO.2

47112-10L00

$1.03

5

CUSHION,FRAME COVER UP

47115-16G01

$3.17

6

WASHER,FRAME COVER

47190-24F21

$9.36

7

CUSHION (16X26X8)

47191-24F00

$4.86

8

CUSHION,FRAME COVER CTR

47191-24F20

$6.61

9

CUSHION,FRAME COVER UP RR RR

47191-24F30

$7.12

10-1

COVER,FRAME,L (BLACK) | BODY COLOR:JRU,YVB

47211-10L00-YVB

$137.72

10-2

COVER,FRAME,L (SILVER) | BODY COLOR:DKX,DMX,DNX

47211-10L00-YMC

$137.72

10-3

COVER,FRAME,L (BLUE) | BODY COLOR:DQX,C9X,DSX

47211-10L00-YKY

$143.15

11-1

COVER,FRAME REAR,R (SILVER) | BODY COLOR:JRU,DKX,DQX

47320-10L01-YMD

$151.25

11-2

COVER,FRAME REAR,R (BLACK) | BODY COLOR:YVB,DMX,C9X

47320-10L01-YVB

$136.93

12-1

.EMBLEM,FRAME COVER,R (SILVER | BLACK) BODY COLOR:JRU,DKX,DQX

68131-10L01-JRU

$10.85

12-2

.EMBLEM,FRAME COVER,R (GRAY,B | ACK) BODY COLOR:YVB,DMX,C9X

68131-10L01-AA3

$10.28

12-3

.EMBLEM,FRAME COVER,R (GREEN, | LACK) BODY COLOR:DNX,DSX

68131-10L01-C0T

$10.85

13

BOLT,FRAME COVER REAR

47323-10L00

$3.57

14-1

COVER,FRAME REAR,L (SILVER) | BODY COLOR:JRU,DKX,DQX

47330-10L01-YMD

$138.52

14-2

COVER,FRAME REAR,L (BLACK) | BODY COLOR:YVB,DMX,C9X

47330-10L01-YVB

$131.22

15-1

.EMBLEM,FRAME COVER,L (SILVER | BLACK) BODY COLOR:JRU,DKX,DQX

68141-10L01-JRU

$10.85

15-2

.EMBLEM,FRAME COVER,L (GRAY,B | ACK) BODY COLOR:YVB,DMX,C9X

68141-10L01-AA3

$10.28

15-3

.EMBLEM,FRAME COVER,L (GREEN, | LACK) BODY COLOR:DNX,DSX

68141-10L01-C0T

$10.85

16

LID,FRAME COVER

47411-10L00

$24.38

17

TAPE (6X25X0.13)

94443-06G00

$2.97

18

CUSHION

94478-14J00

$5.42

19

SCREW

09136-06126

$3.42

20

SPACER (6.5X10X11)

09180-06288

$2.04

21

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

22

SCREW

03541-0512A

$1.37
