2024 Suzuki GSX1300RRQ2M4 Meter Panel Diagram

← All diagrams

Find the part on the Meter Panel diagram for your 2024 Suzuki GSX1300RRQ2M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

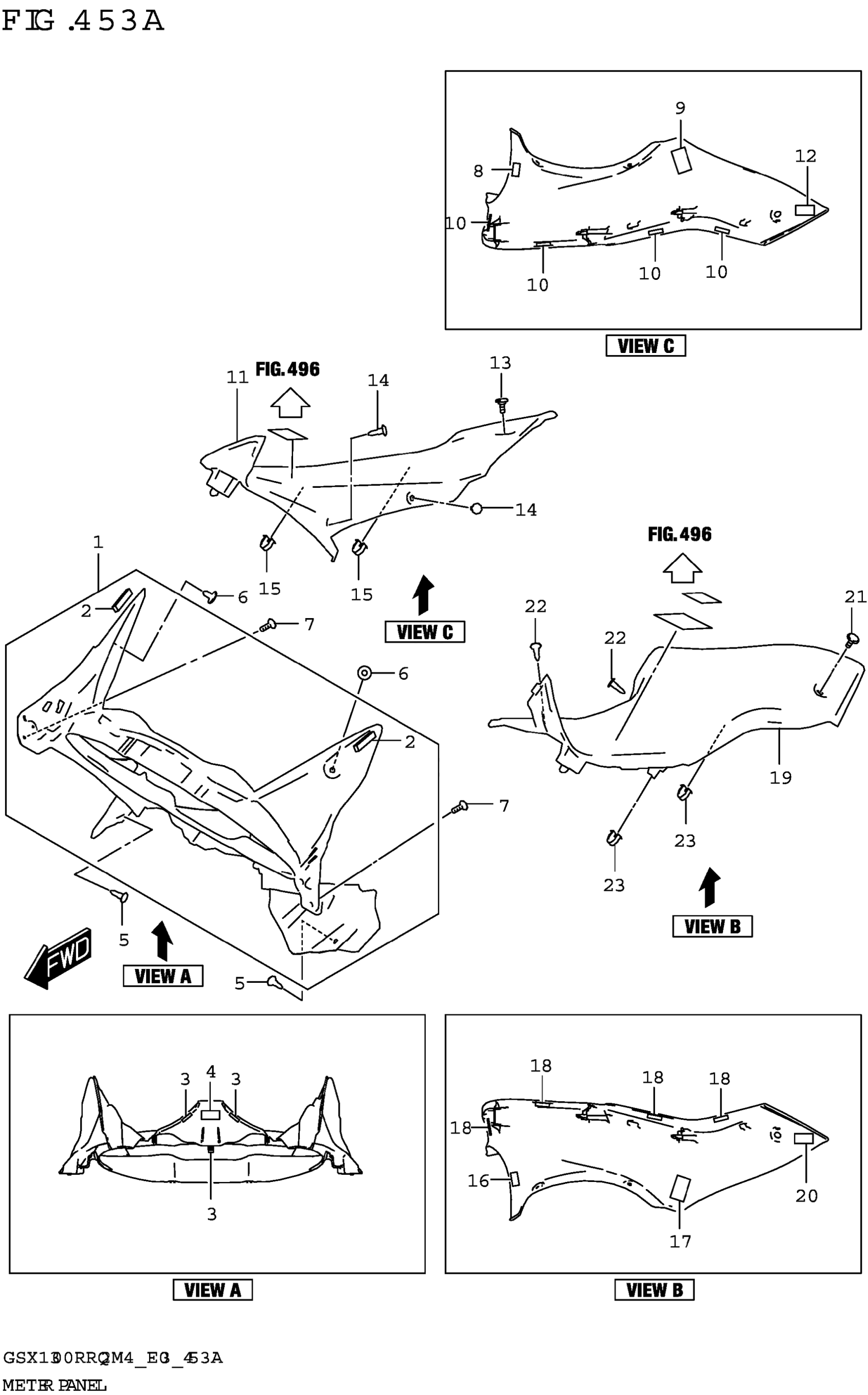

2024 Suzuki GSX1300RRQ2M4 Meter Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL,METER

94640-10L00

1
Out of stock

2

.CUSHION,HEADLAMP COVER

51833-48GB0

2
Out of stock

3

PAD (8X20X2)

73415-70A00

3
Out of stock

4

CUSHION (16X30X3.5)

94633-31J00

1
Out of stock

5

2

$2.92

In stock

6

CLIP

09409-06328

2
Out of stock

7

SCREW

03541-0516A

2
Out of stock

8

PAD (8X20X2)

73415-70A00

1
Out of stock

9

.CUSHION,BODY COWL (20X40X7)

92146-14J00

1
Out of stock

10

TAPE (6X25X0.13)

94443-06G00

4
Out of stock

11-1

1

$247.63

In stock

11-2

PANEL,METER,R (BLACK) | BODY COLOR:KGL

94631-10L00-YVB

1
Out of stock

11-3

1

$225.65

In stock

12

CUSHION (16X30X3.5)

94633-31J00

1
Out of stock

13

SCREW (5X13)

09139-05091

1
Out of stock

14

2

$2.92

In stock

15

CLIP (10.5X14.3)

09409-08326

2
Out of stock

16

PAD (8X20X2)

73415-70A00

1
Out of stock

17

.CUSHION,BODY COWL (20X40X7)

92146-14J00

1
Out of stock

18

TAPE (6X25X0.13)

94443-06G00

4
Out of stock

19-1

1

$247.63

In stock

19-2

PANEL,METER,L (BLACK) | BODY COLOR:KGL

94632-10L00-YVB

1
Out of stock

19-3

1

$225.65

In stock

20

CUSHION (16X30X3.5)

94633-31J00

1
Out of stock

21

SCREW (5X13)

09139-05091

1
Out of stock

22

2

$2.92

In stock

23

CLIP (10.5X14.3)

09409-08326

2
Out of stock
