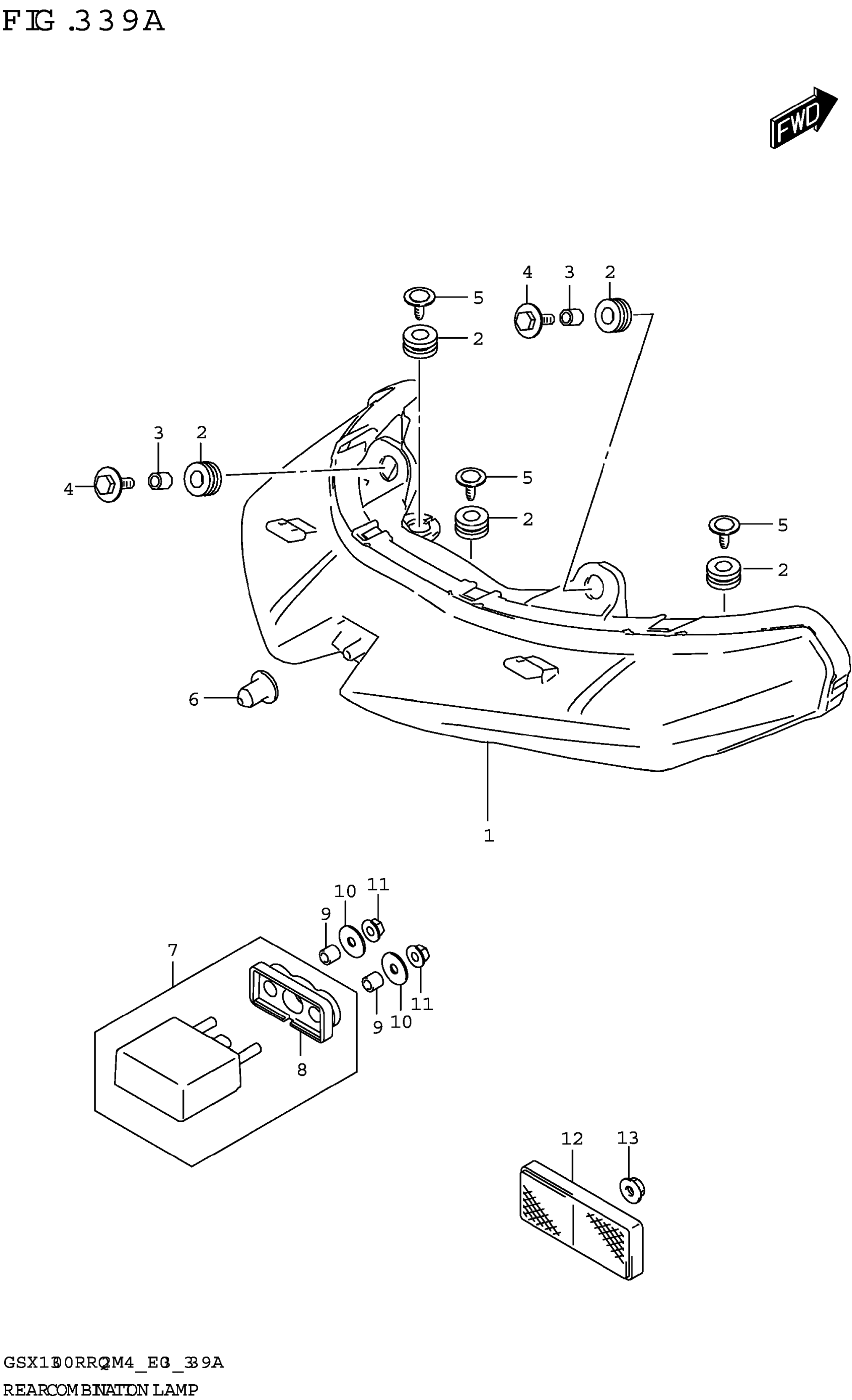

Suzuki GSX1300RRQ2M4 (2024) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB

35710-10L00

$724.55

2

CUSHION

09320-10073

$2.12

3

SPACER (6.5X10X10)

09180-06310

$1.99

4

BOLT (6X20)

09116-06188

$2.25

5

SCREW (5X15)

09136-05062

$2.25

6

CUSHION,HEADLAMP BRACE

51831-21D00

$4.50

7

LAMP ASSY, LICENSE

35910-17KA0

$206.32

8

.RUBBER

35913-17K00

$19.03

9

SPACER (6.5X9X9)

09180-06263

$1.68

10

WASHER (5.5X18X1.0)

09160-05045

$2.01

11

NUT

08316-1005A

$2.25

12

REFLECTOR ASSY,RR

35970-07F01

$19.97

13

NUT

08316-1005B

$2.58
